Rear backplane: 4 x 2.5-inch SAS/SATA
The following shows the cable connections for a rear 4 x 2.5-inch SAS/SATA backplane if installed.
From To
Backplane 4: SAS 8i RAID/HBA adapter on PCIe slot 6:
• Gen 3: C0C1
• Gen 4: C0
Backplane 4: PWR Riser 1: PWR1, PWR2
Connections between connectors: 1 ↔ 1 , 2 ↔ 2 , 3 ↔ 3 , ... n ↔ n

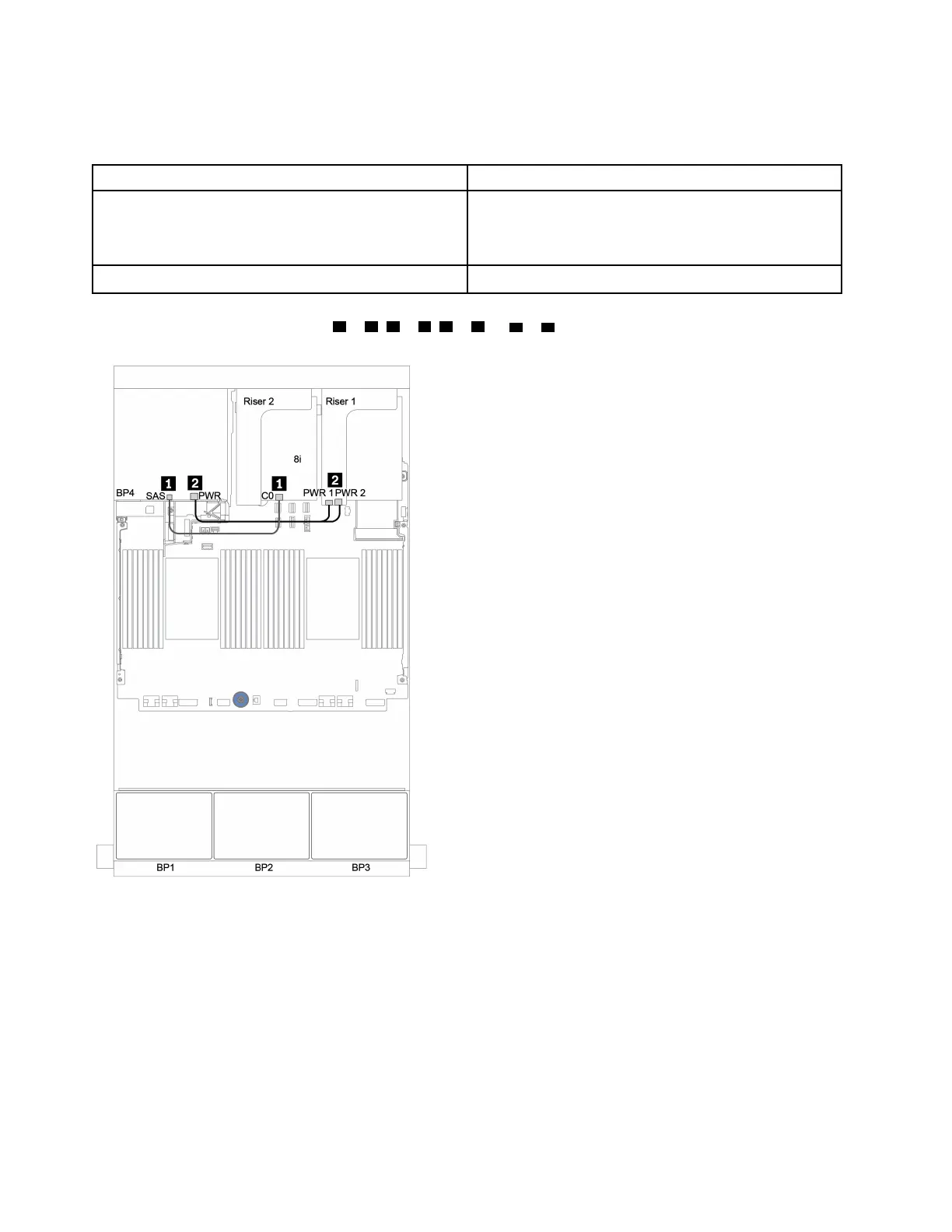

Figure 100. Cable routing for the rear 2.5-inch SAS/SATA backplane
146 ThinkSystem SR650 V2Maintenance Manual
