Step 3. Install the 2.5-inch drive front backplane.
Note: Depending on the specific type, your backplane might look different from the illustration.

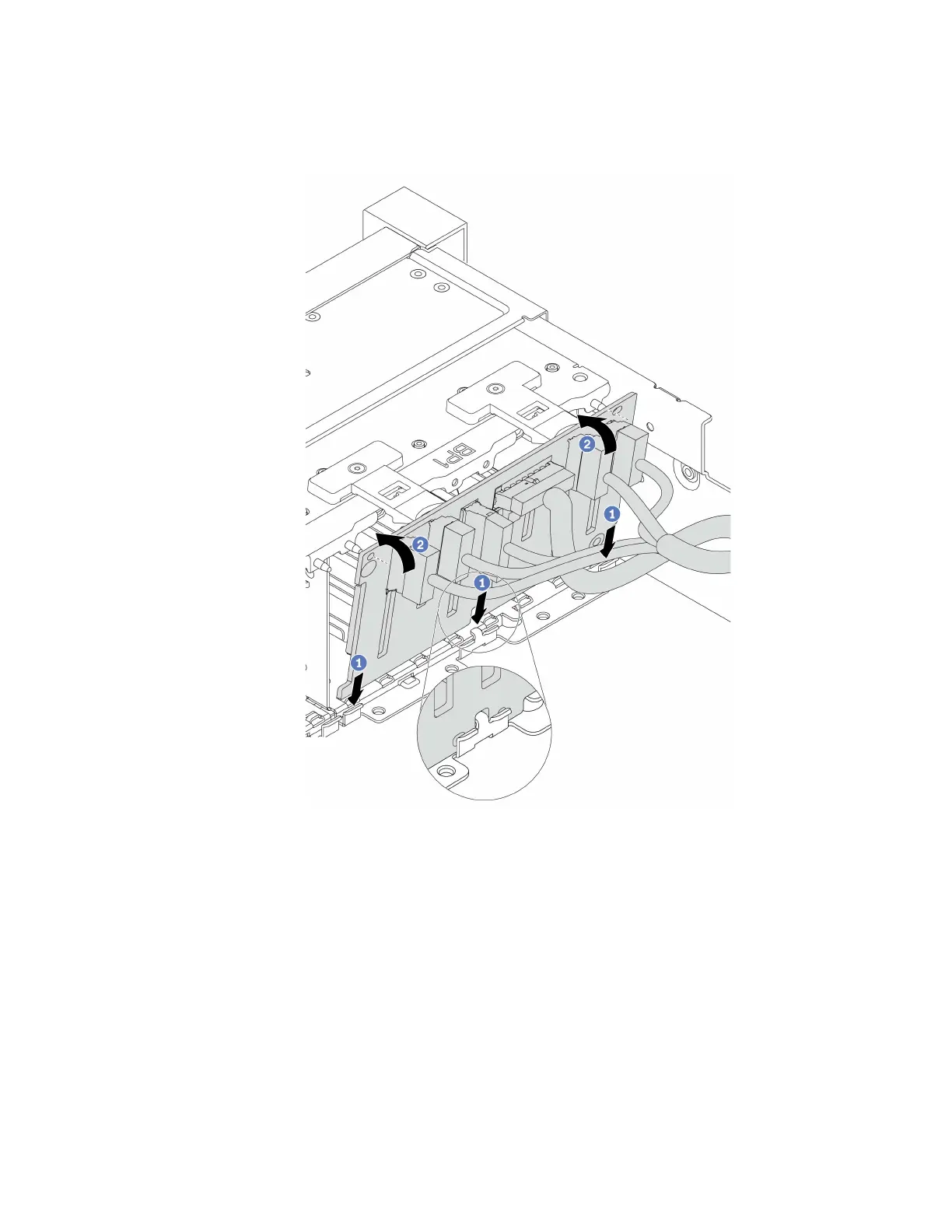

Figure 180. 2.5-inch drive backplane installation
a. Align the bottom of the backplane with the slots on of the chassis.
b. Rotate the backplane to the vertical position and align the holes in the backplane with the pins
on the chassis and press the backplane into position. The release tabs will secure the
backplane in place.
Step 4. Connect the cables to the system board. See Chapter 3 “Internal cable routing” on page 71.
After you finish
1. Reinstall all the drives and fillers (if any) into the drive bays. See “Install a hot-swap drive” on page 227.
2. Complete the parts replacement. See “Complete the parts replacement” on page 381.
Chapter 4. Hardware replacement procedures 233
