Lenovo ThinkSystem SR650 V2 User Manual

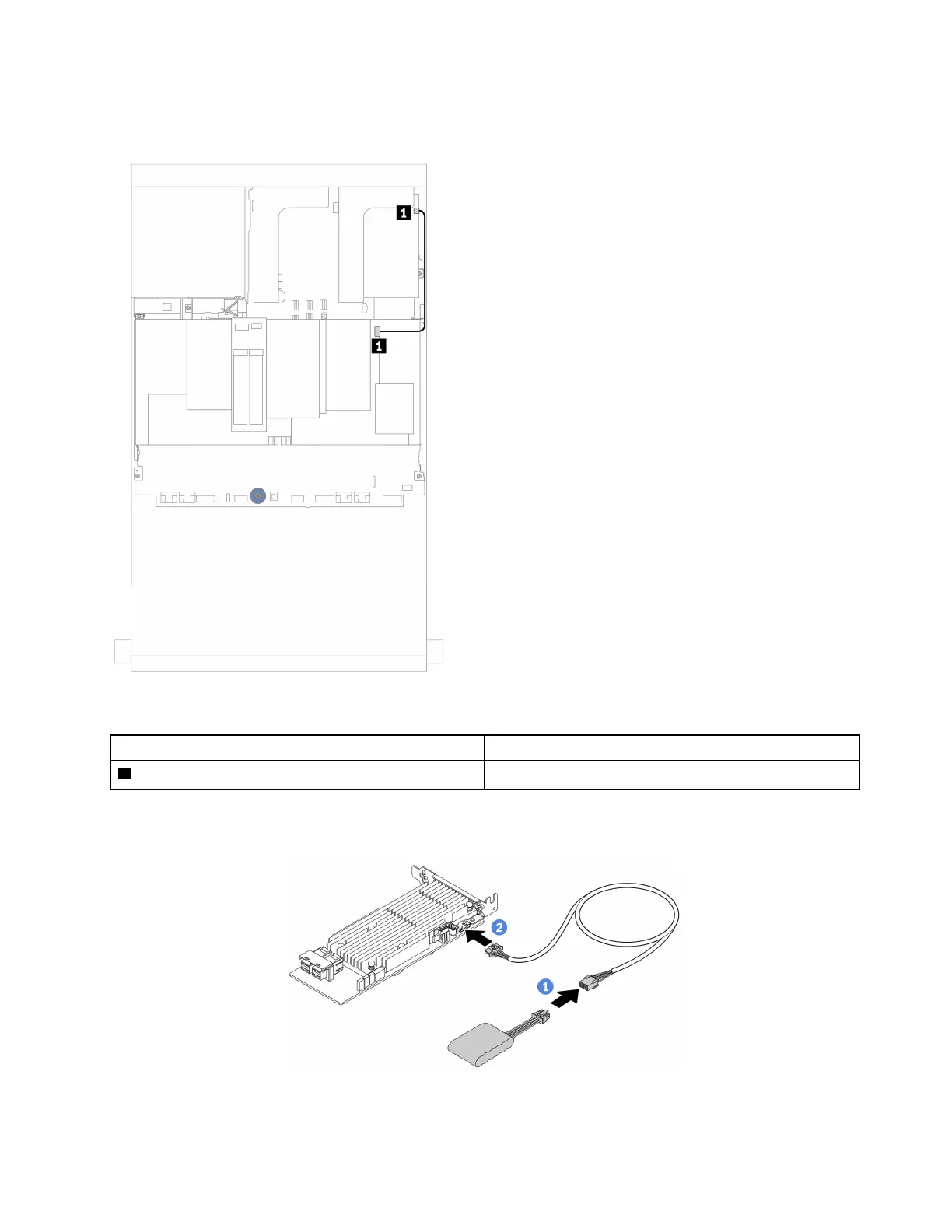

The following illustration shows the cable connection for a super capacitor on the air baffle. It is the same for
other super capacitors on other locations.
Figure 27. Cable routing for the super capacitor on the air baffle
From To
1 RAID super capacitor module
Super capacitor connector on the RAID adapter
Note: An extension cable is provided for each RAID super capacitor module for connection. Connect the
super capacitor cable to the super capacitor connector on the corresponding RAID adapter as shown.
Chapter 3. Internal cable routing 81

Lenovo ThinkSystem SR650 V2 Specifications

General

Expansion Slots	Up to 7x PCIe 4.0 slots
Form Factor	2U rack server
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Processor	Up to 2x 3rd Generation Intel Xeon Scalable processors, up to 40 cores per processor
Memory	Up to 8TB in 32x slots, using 256GB DDR4 3200MHz DIMMs
Drive Bays	Up to 24 x 2.5" or 12 x 3.5"
Power Supply	Up to 2x hot-swap redundant power supplies, 750W Platinum, or 750W Titanium
Memory Slots	32 DIMM slots
Storage Controller	ThinkSystem RAID 930-8i
Operating System	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
