Lenze 8200 - Control Mode

Configuration
8200SHB0199
7-19

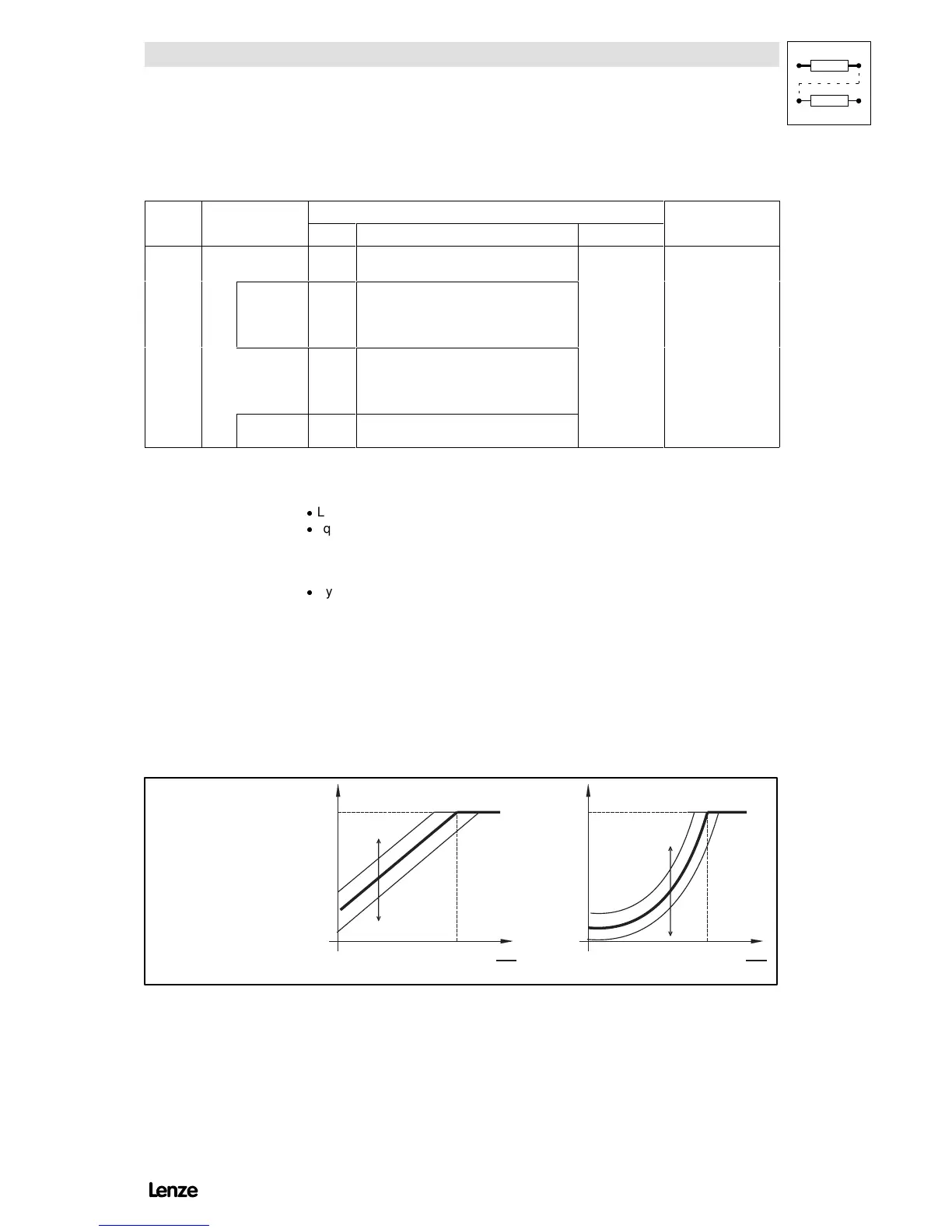

7.5.5 Control mode
Code Name
Possible settings
IMPORTANT
Lenze Choice Info
C014¤ Control mode
820X -0- -0- Linear characteristic Vf
d
with
auto boost
-1- Square characteristic Vf
d
2
with
auto boost
-2- Linear characteristic Vf
d
with
constant V
min
boost
-3- Square characteristic Vf
d
2
with
constant V
min
boost
821X/822X/
824X
-4- -4- Motor-current control
Function Under C014 you can set the control mode and the voltage characteristic. It is also possible to adapt
your drive to different load characteristics:
- Linear characteristic for drives with constantlyincreasing load torques inrelation to the speed
- Square-lawcharacteristics for drives witha load torque squared in relation to the speed
Square-law V/f characteristics are mainly used for centrifugal pump and fan drives. It is however
necessary to check whether your individual pump or fan application can be driven with this control
mode.
- If your pump or fan drive cannot be operated with a square-law V/f characteristic, you should
select the control mode C014 = -0-, -2- or -4-.
820X V/f-characteristic control with auto boost
The control mode mentioned above enables low-loss operation of stand-alone drives with
three-phase AC standard asynchronous motors with load dependent V
min
boost.
C014 = -0-
Linear characteristic
C014 = -1-
Square characteristic
(e.g. for pumps, fans)
100 %
0
01
f
d
f
dr
V
min
0
01
f
d
f
dr
V
min
Vout
100 %
Vout
A u to b o o s t
A u to b o o s t
