Lenze 8200 - Dancer-Position Control (Line Drive)

Application examples
8200SHB019915-6
15.3 Dancer-position control (line drive)
M
3~
Main setpoint ~
0 ... 10 V, 0/4 ... 20 mA
W
E
A
F
G
5V
R1 Dancer potentiometer
1 ... 10 kOhm
V
V
V
1
2
1
S
R1
V
U
Z1
K1
F1
Z2
L1L2 L3
7
9
8
8279
X1
RUN
PRG
STP
SH
L
W
V
U
G
-U
G
+U
L1
L2
L3
Ctrl.
enable
JOG1
QSP
INFL_0
28
E1
E3
E2
E4
39
20
PE

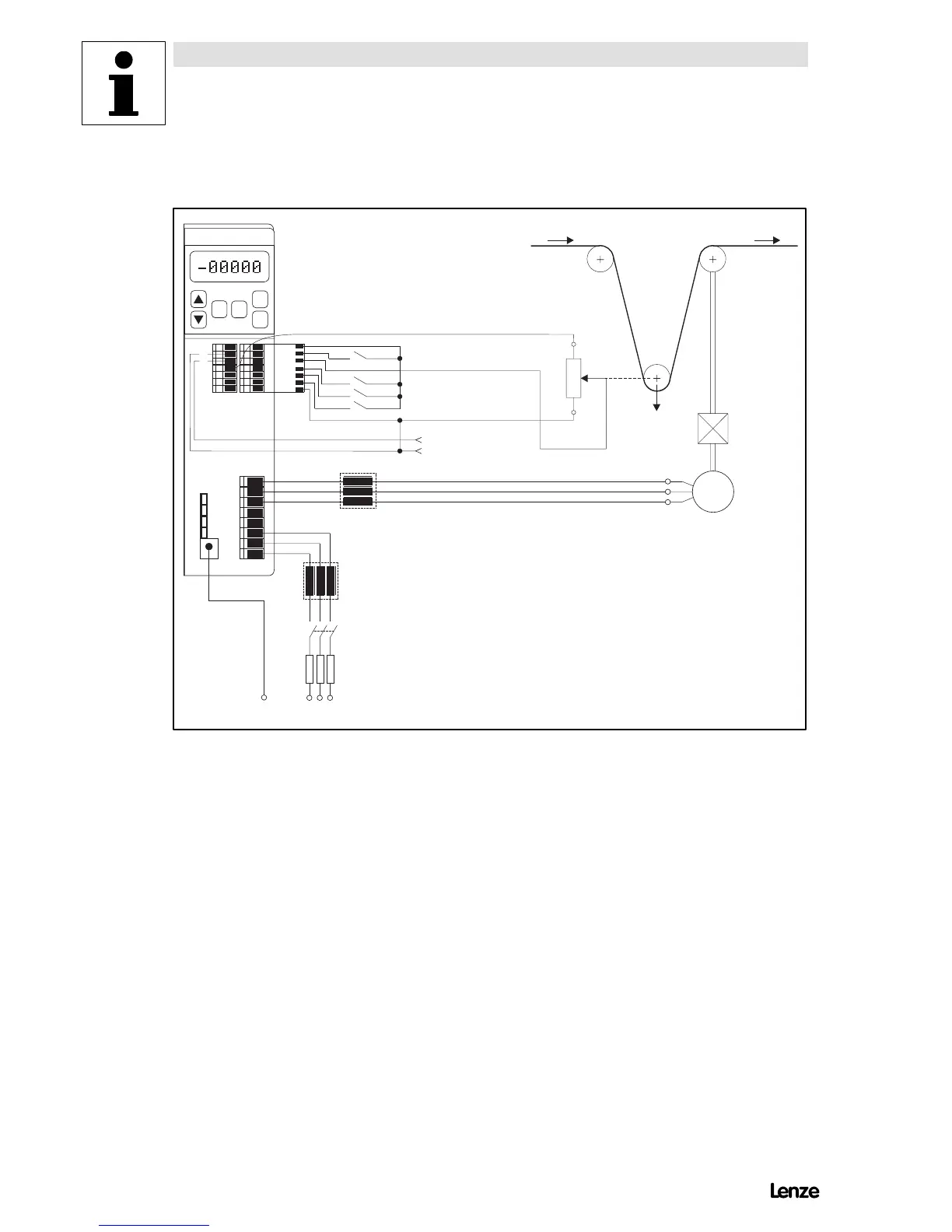

FIG 15-3 Application of a dancer-position control
Z1 Mains filter required for radio interference level A or B. For mains chokes see chapter 3.4 ff.
Z2 Motor filter/sine filter required for long motor cables or motors not designed for inverter operation
(see chapter4.2.7.2).
Shield all signal and motor cables. Please observe the corresponding installation instructions in chapters 4.2 and 4.3.
