Lenze 8200 - Types 8211 to 8214

Installation
8200SHB0199
4-9
4.1.3.2 Types 8211 to 8214
Typ Id.-N R Fert.-Nr S erien -N r. E ing ang1 E ing ang2
Lenze
Po stfach 101352,31763 HAMELN
a
e
b
c1
2)
3)
c2
c3
1)
1)

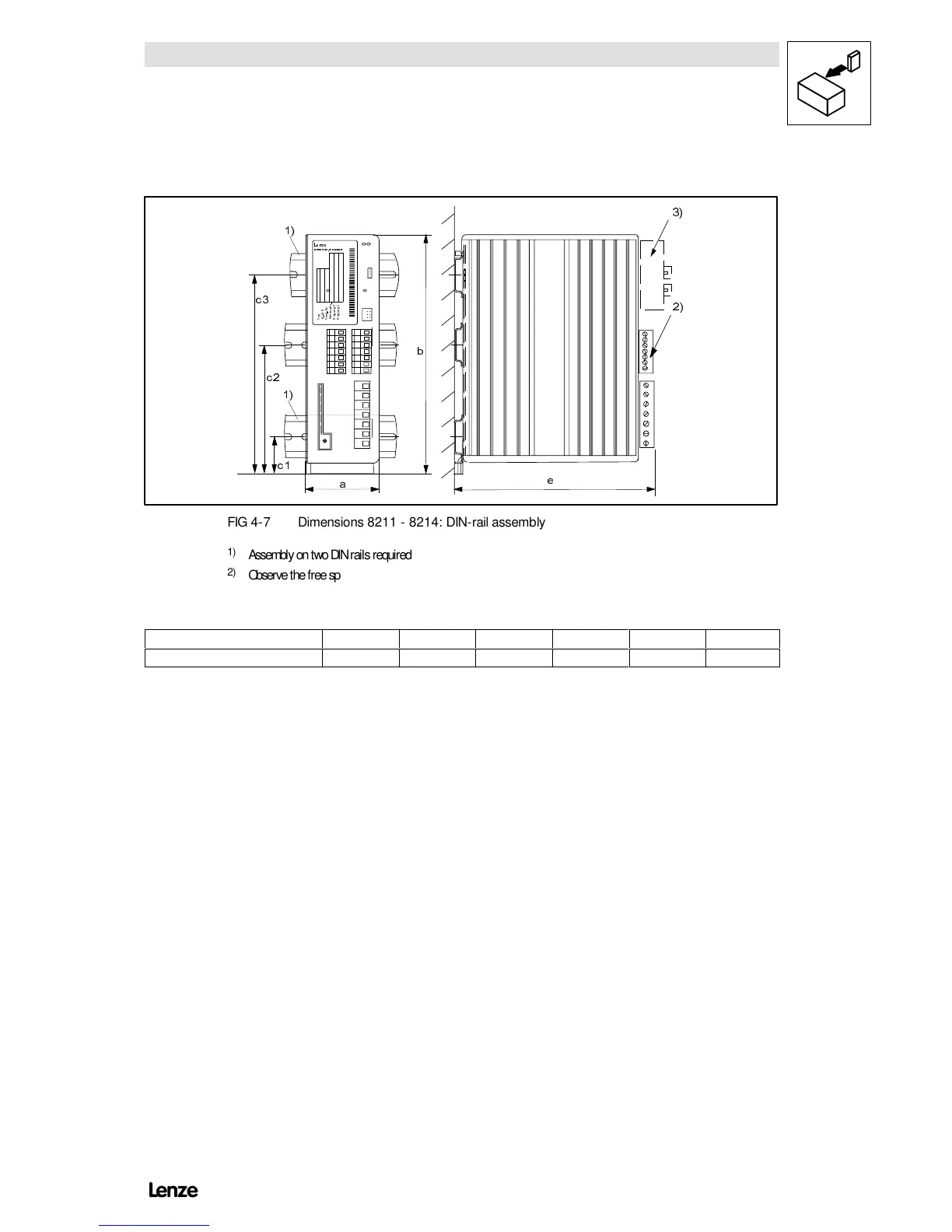

FIG 4-7 Dimensions 8211 - 8214: DIN-rail assembly
1)
Assembly on two DIN rails required
2)
Observe the free space required for the connection cables
3)
With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm]
a b c1 c2 c3 e
3)
8211 / 8212 / 8213 / 8214 83 258 16 - 149 226
