Lenze 8200 - DIN-Rail Assembly; Types 8201 to 8204

Installation
8200SHB01994-8
4.1.3 DIN-rail assembly
4.1.3.1 Types 8201 to 8204
Typ Id.-N R Fert.-Nr S erien -N r. Eingang1 Eingang2
Lenze
Po stfach 101352,31763 HAMELN
a
e
b
c1
2)
3)
c2
c3
1)
1)

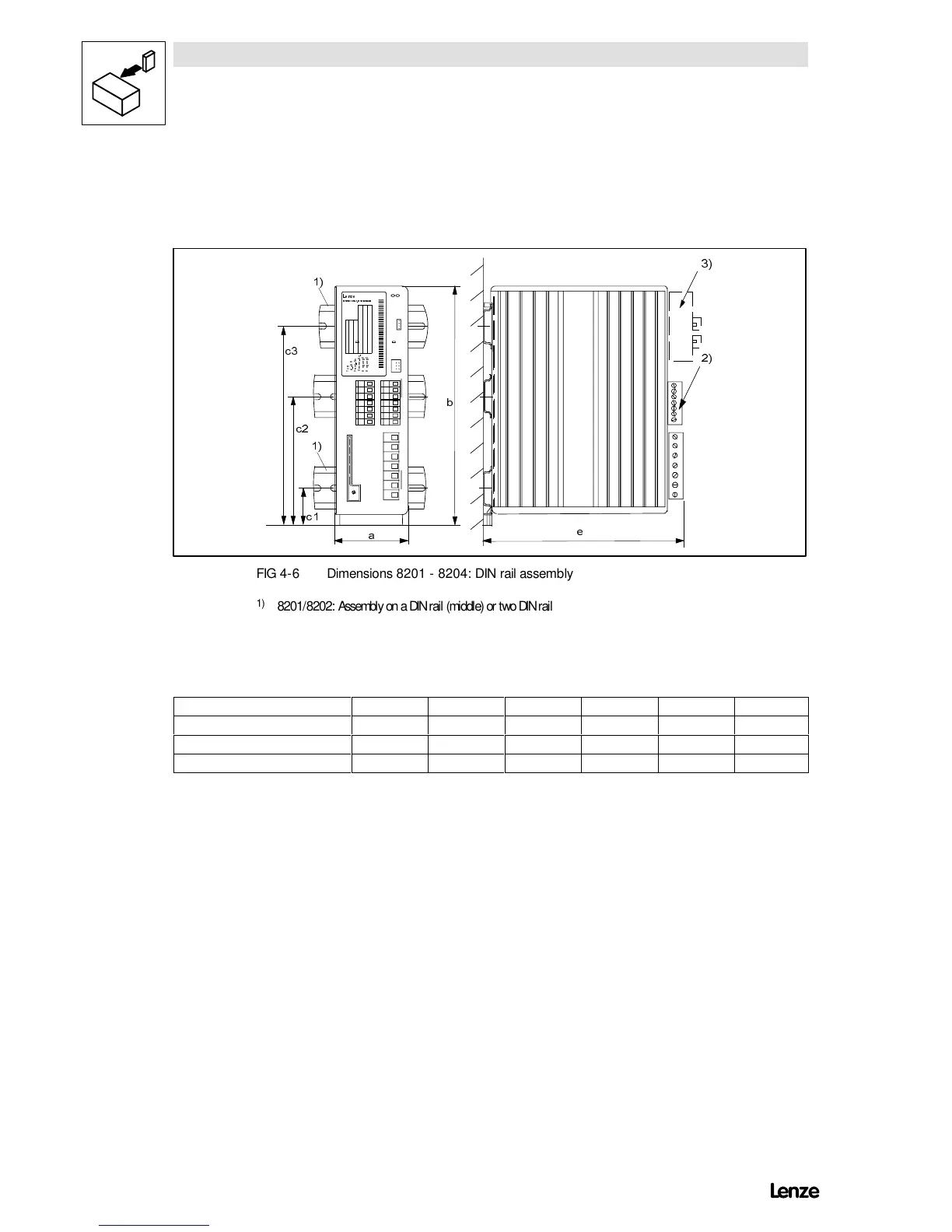

FIG 4-6 Dimensions 8201 - 8204: DIN rail assembly
1)
8201/8202: Assembly on a DIN rail (middle)or two DIN rails (top and bottom)possible)
8203 - 8204: Assembly on two DIN rails required
2)
Observe the free space required for the connection cables
3)
With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm]
a b c1 c2 c3 e
3)
8201 64 188 16 98 149 173
8202 64 188 16 98 149 213
8203 / 8204 83 258 16 - 149 237
