Lenze 8200 - Assembly of the Analog Plug-In Module 8279 IB

Installation
8200SHB01994-24
4.1.7 Assembly of the analog plug-in module 8279IB
Note!
Onlycontrollersof theseries 8210, 8220 and 8240 HVAC (V020)canbeequipped
with the analog plug-in module 8279IB.
Front view Side view
8279
K 35.0141G B

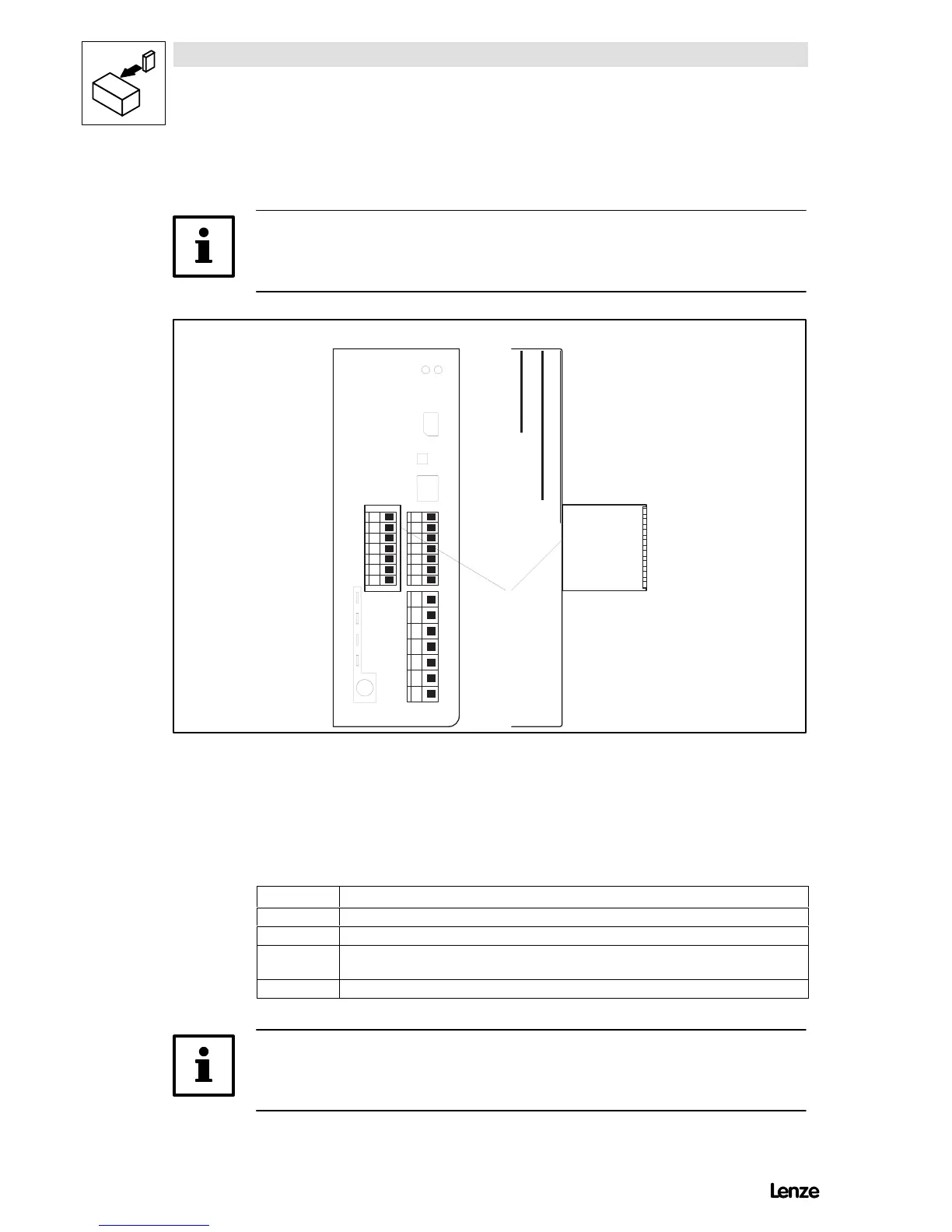

FIG 4-15 Analog plug-in module directly mounted onto the controller
Assembly
- The analog plug-in module is plugged onto the right terminal strip
(terminals 20 ... 39).
- The assembly depth of the controller is thus increased by 40 mm.
Step What to do
1. If mounted, remove the socket connector mounted to terminals 20 ... 39.
2. Connect the plug-in module to the terminals 20 ... 39.
3. Plug the socket connector in the terminals strip of the analog plug-in module (the plug-in module
serves as intermediate adapter).
4. Connect the analog input to the terminals E1 and 39 of the socket connector.
Note!
Because of the mechanical instability, the installation of an analog plug-in module
and a PTC input module should be avoided.
