3.8 Dimensions
Thecontroller dimensions depend on themechanicalinstallation (see chapter 4.1).
3.8.1 Analog plug-in module
Note!
Only controller of the series 8210, 8220 and 8240 HVAC (V020)can be equipped
with the analog plug-in module.
20
28
E1
E2
E3
E4
39
- -
-
4.00 cm
0 - 10 V
Jumper
8279frnt_gb
0-20mA
4.80 cm
3.90 cm

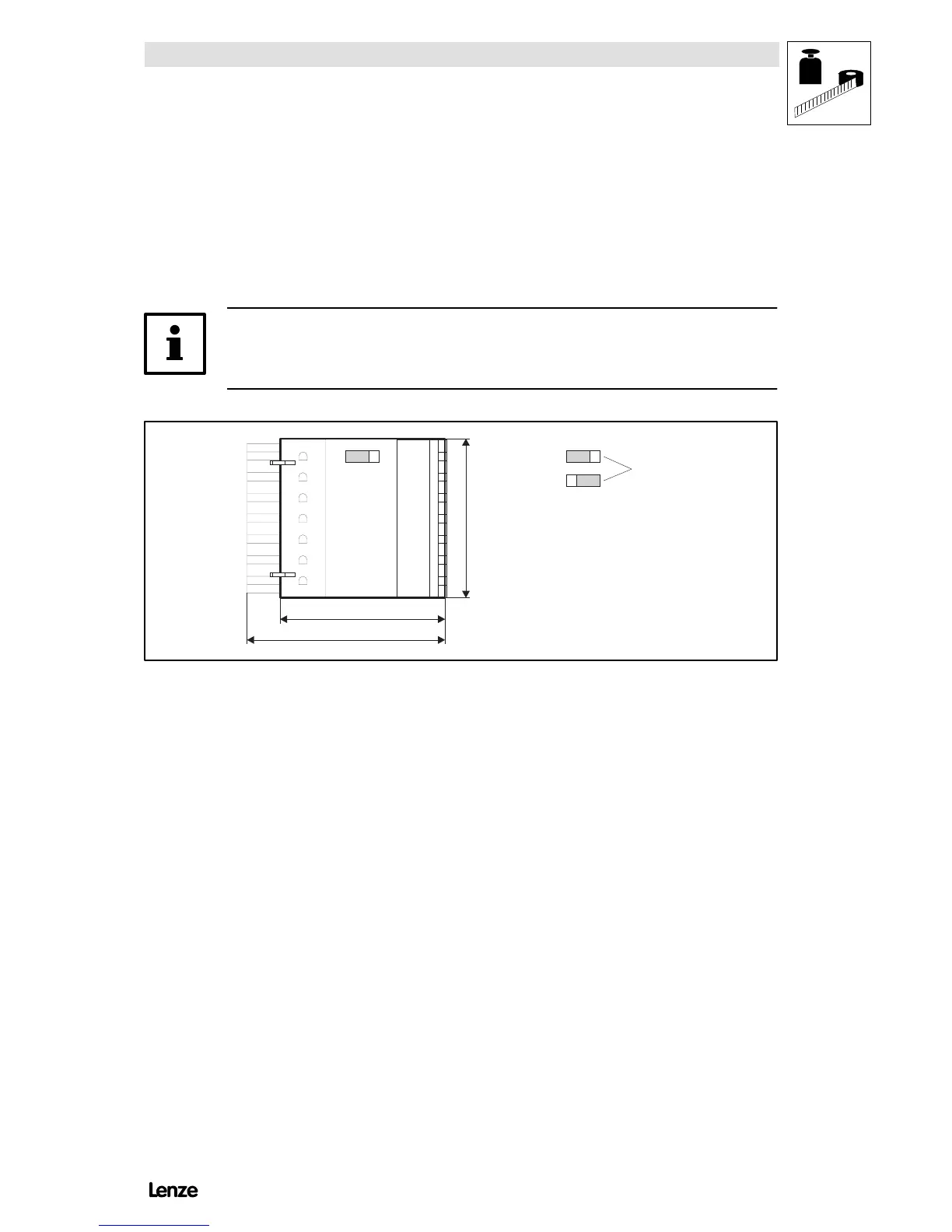

FIG 3-2 Dimensions of analog plug-in module
The changeover of the analog input between 0 V ... 10 V (factory setting) or
0 mA ... 20 mA (internal 500 W load) is carried out via a jumper on the PCB.
The jumper can be accessed when removing the cover from the internal PCB.
