Lenze 8200 - Types 8241 to 8246

Installation
8200SHB0199
4-7
4.1.2.6 Types 8241 to 8246

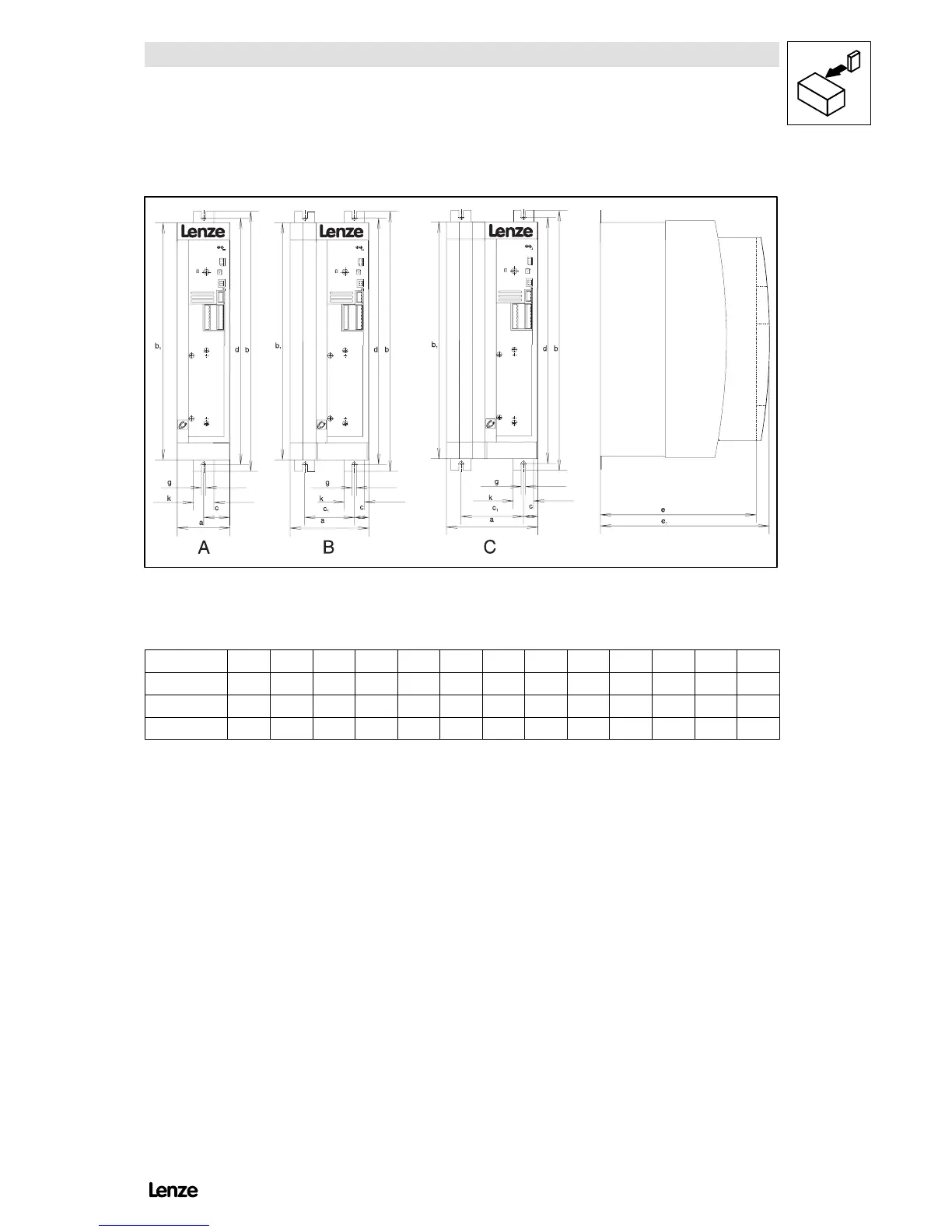

FIG 4-5 Dimensions 8241 - 8246: Standard assembly
3)
With attachable fieldbus or I/O module:
Observe assembly depth and assembly space required for connection cables
[mm]
Fig. a b b1 c c1 d d1 e
3)
e1 g k m
8241 / 8242 A 78 384 350 39 - 365 - 230 250 6.5 30 -
8243 / 8244 B 97 384 350 48.5 - 365 - 230 250 6.5 30 -
8245 / 8246 C 135 384 350 21.5 92 365 - 230 250 6.5 30 -
