9400 regenerative power supply module | Parameter setting

Regenerative power supply module application

3 Regenerative power supply module application

This chapter provides you with information on the "Regenerative power supply module"

application by which the regenerative power supply module can be controlled via digital

inputs and input ports. Status information is provided to other applications via digital

outputs and output ports.

 How to get to the parameterisation dialog of the application:

1. Select the regenerative power supply module in the Project view of the »Engineer«.

2. Change to the Application parameters tab in the Workspace.

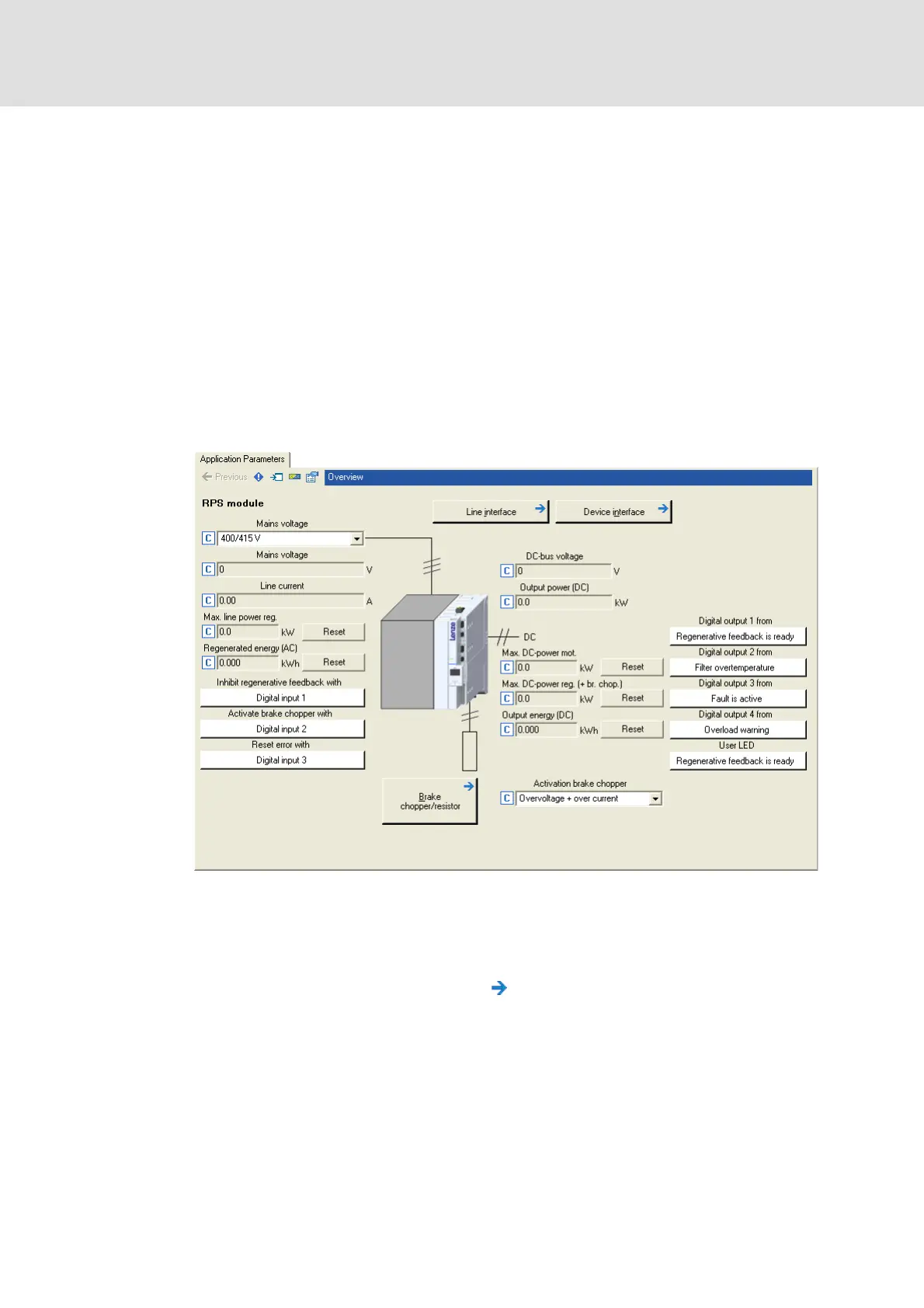

Parameterisation dialog in the »Engineer«

 The white buttons show the assignment of the control inputs and status outputs of the

application.

– The assignment is defined by the "Regenerative power supply module" application

and can, if required, be reconfigured by clicking the corresponding button.

 If you click the button marked with the icon, you get to the parameterisation dialog

for the brake chopper/brake resistor, which is one level beneath.
