Lenze L-force 9400 Series

9400 regenerative power supply module | Parameter setting
I/O terminals
Analog inputs
90 L EDS94ARNExxxx EN 2.3 - 06/2014
5.2 Analog inputs
The regenerative power supply module has two analog inputs which can be used to detect
differential voltage signals in the range of ±10 V, for instance an analog speed setpoint
selection or the voltage signal of an external sensor (temperature, pressure, etc.).
 Optionally, analog input 1 can also be used to detect current setpoints.

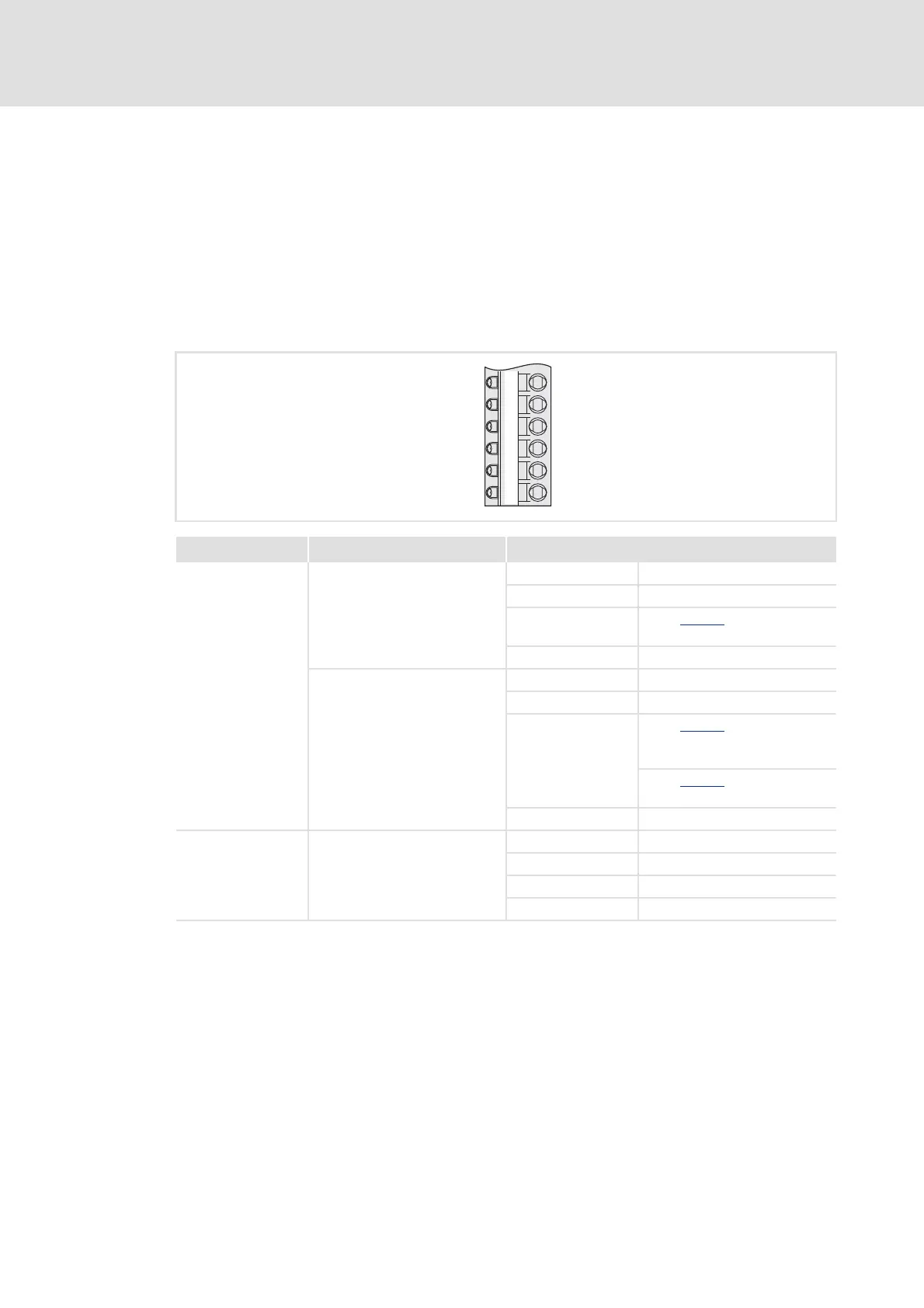

5.2.1 Terminal assignment/electrical data
Terminal Use Electrical data
X3/A1-
X3/A1+
Differential voltage input 1
(no jumper between A1R and A1)
Level: -10 V ... +10 V
Resolution: 11 bits + sign
Scaling: When C00034
="0":
±10 V ≡ ±2
30
Conversion rate: 1 kHz
Current input
(jumper between A1R and A1)
Level: -20 mA ... +20 mA
Resolution: 10 bits + sign
Scaling: When C00034
="1":
-20 mA ... -4 mA = -2
30
... 0
+4 mA ... +20 mA = 0 ... 2
30
When C00034 ="2":
±20 mA ≡ ±2
30
Conversion rate: 1 kHz
X3/A2-
X3/A2+
Differential voltage input 2 Level: -10 V ... +10 V
Resolution: 11 bits + sign
Scaling: ±10 V ≡ ±2
30
Conversion rate: 1 kHz
A1+
A1-
A1-
A1R
A2+
A2-
X3
