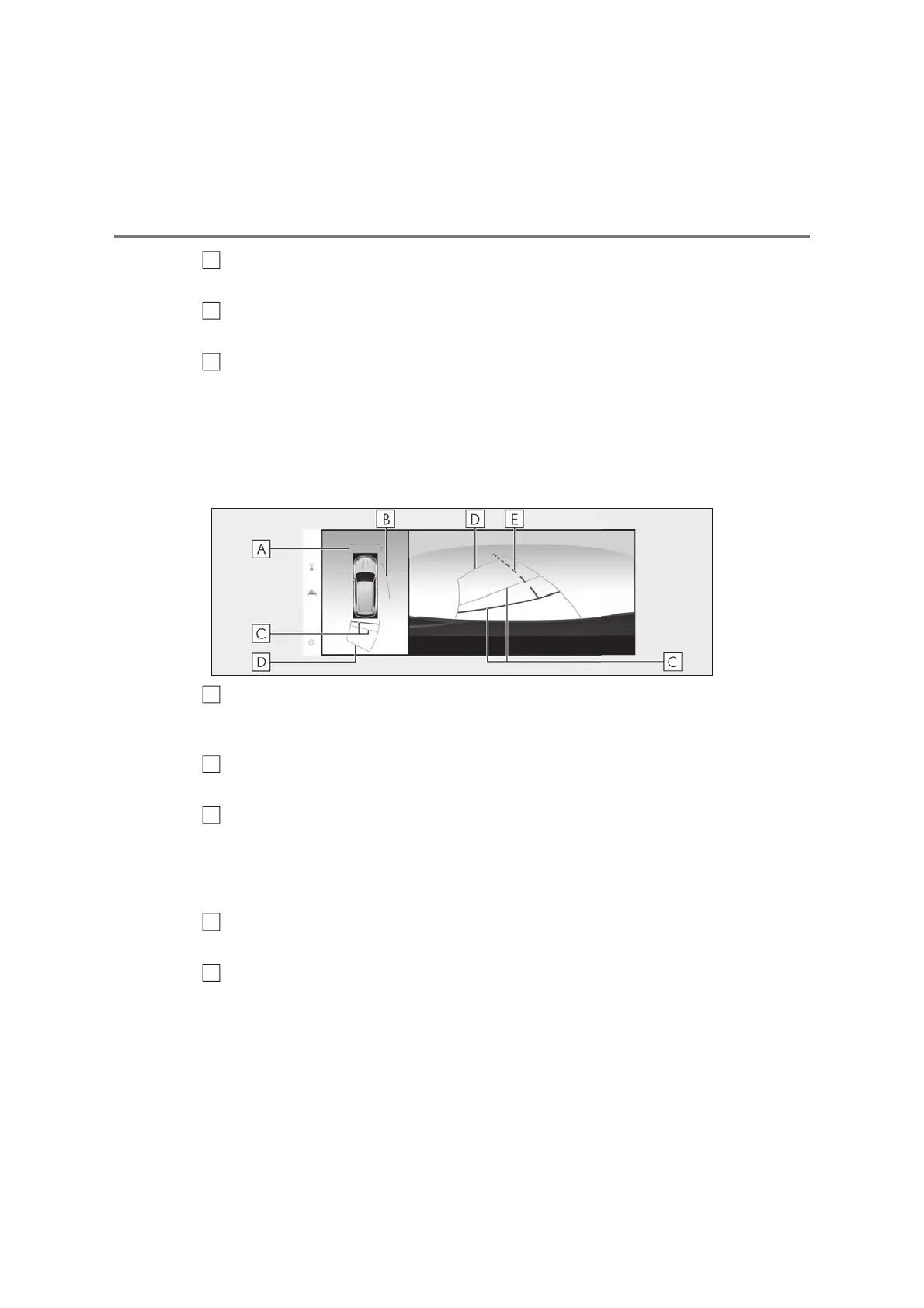

4-5. Using the driving support systems
Vehicle center guide line
Indicates the estimated vehicle center on the ground.
Vehicle width guide lines
Displays a guide path when the vehicle is being backed straight up.
Parking assist guide lines
Shows the path of the smallest turn possible behind the vehicle.
*
: In estimated course line mode, the line will turn blue.
X Vehicle center estimated course line
Estimated course lines are displayed which move in accordance with the operation
of the steering wheel.
Distance guide lines
Shows distance in front of the vehicle.
• Display points approximately 1m (3 ft.) from the edge of the bumper.
Estimated course line
Shows a side estimated course when the steering wheel is turned.
Distance guide lines
Shows the distance behind the vehicle when the steering wheel is turned.
• The guide lines move in conjunction with the estimated course lines.
• The guide lines display points approximately 0.5 m (1.5 ft.) (red) and approximately 1m
(3 ft.) (yellow) from the center of the edge of the bumper.
Estimated course line
Shows a rear estimated course when the steering wheel is turned.
Vehicle center estimated course line
Shows a vehicle center estimated course when the steering wheel is turned.
X Distance guide line
Only distance guide line is displayed.
C
D
E
A
B
D
E
