Chapter 2 Loop-IP6610 Installation
6
2.3 Front Panel Console Port and LEDS
The Loop-IP6610 is a stackable desktop unit. The front and rear panels are shown in the following figures.
The LEDs on the front panel indicate unit performance. The console port provides access for a VT-100
monitor for unit setup.
Loop-IP
TM
LINE
ALARM
POWER
ACO
WAN
10/100
LINK/ACT
DOWN
UP
LAN
9600,N.8,1
CONSOLE

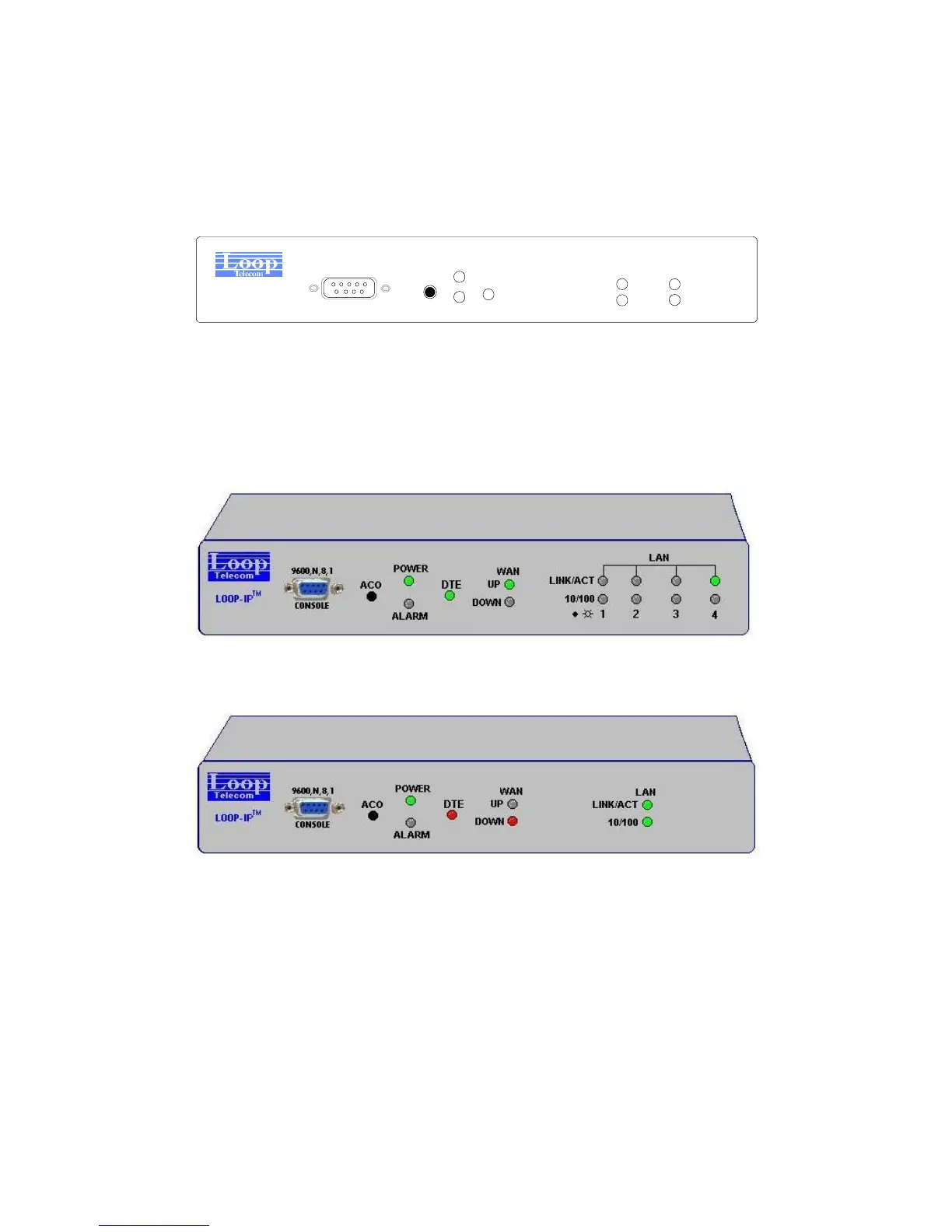

Figure 2-1 Loop-IP 6610 Front Panel (Single Ethernet)
2.3.1 IP 6610 DTE Front Panel and Rear Panel
The Loop-IP6610 DTE Front Panels are shown in the following figures.
Figure 2-2 Loop-IP6610 DTE Front Panel (Four Ethernet)
Figure 2-3 Loop-IP6610 DTE Front Panel (Single Ethernet)
There are six DTE and one DCT options available. They are: V.35, V.36, RS232, EIA530, X.21 and RS422
for DTE interface, and one V.35 for DCE interface. Each of these options is available in AC 1 Port, AC 4
Port, DC 1 Port and DC 4 Port versions.
The sample illustration from Figure 2-4 to 2-7 below depicts the rear panel views for the EIA530 DTE
option. The rear panel views for the other DTE/DCE options are similar.
