Chapter 15 STP/RSTP Setup
69
15.3 Step by Step Setup Instructions
Connect a cable between the COM port of your PC and the Console port of the IP6610. Then follow the
instructions below.

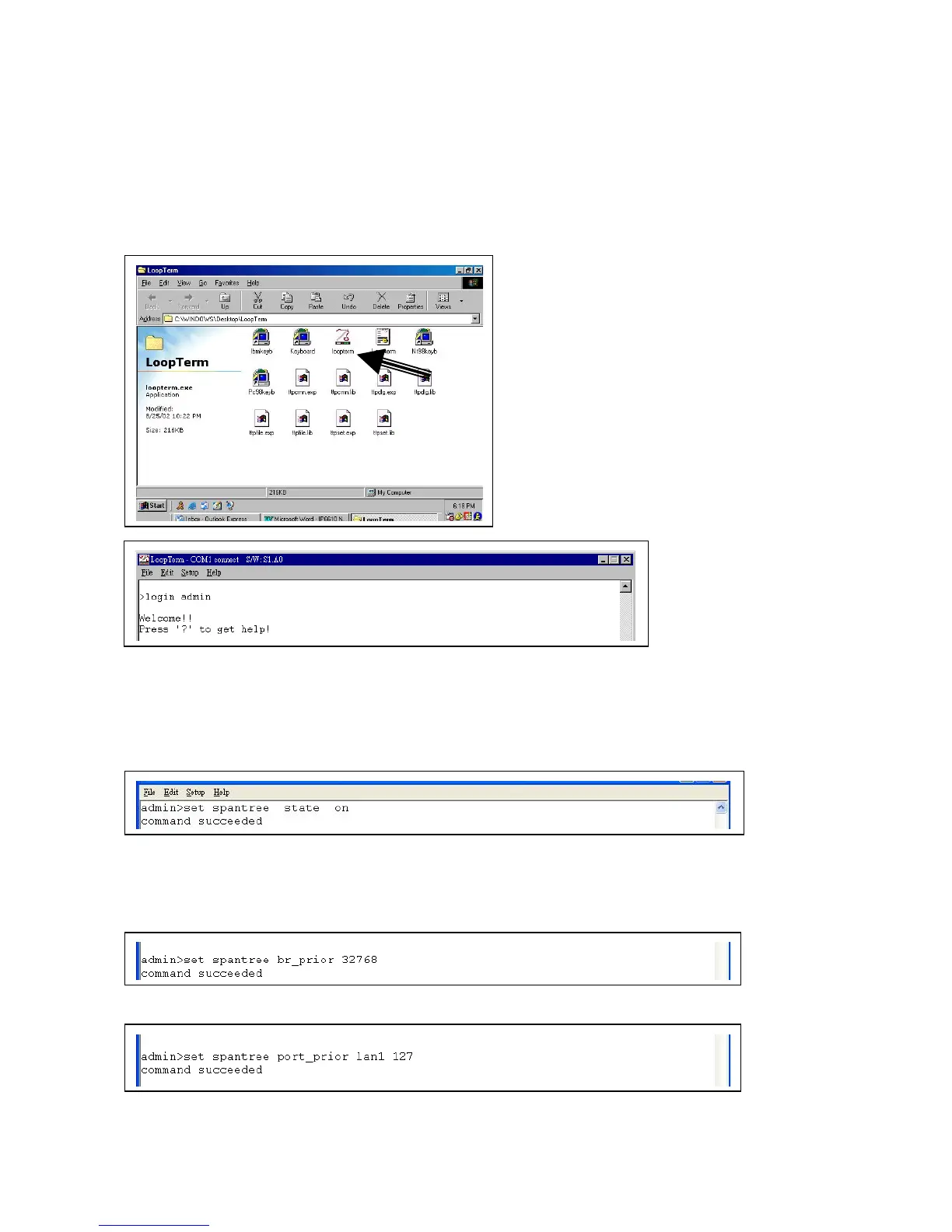

Double-click the LoopTerm icon on your PC’s desktop screen. The following screen will appear. Then
double–click on the icon in the figure below (see arrow).
A blank screen with a flashing cursor will appear.
Note: It is possible that the IP6610 is presently in Router mode rather than Bridge mode. If you are
unsure, key in the admin command add bridge and then press the Enter key. If the IP6610 is
was in Router mode it will switch to Bridge mode.
Key in the command set spantree state on. Then press the Enter Key.
Key in the command set spantree br_prior followed by the Bridge priority value you decide to use. Then
press the Enter Key. We used 32768. In the sample screen below. Then press the Enter Key.
Set up the LAN port priority. Key in the command set spantree port_prior followed by the Port type ( we
chose Lan1), followed by the priority value (we chose 127). Press Enter. A sample screen is shown below.
