Chapter 16 VLAN
79

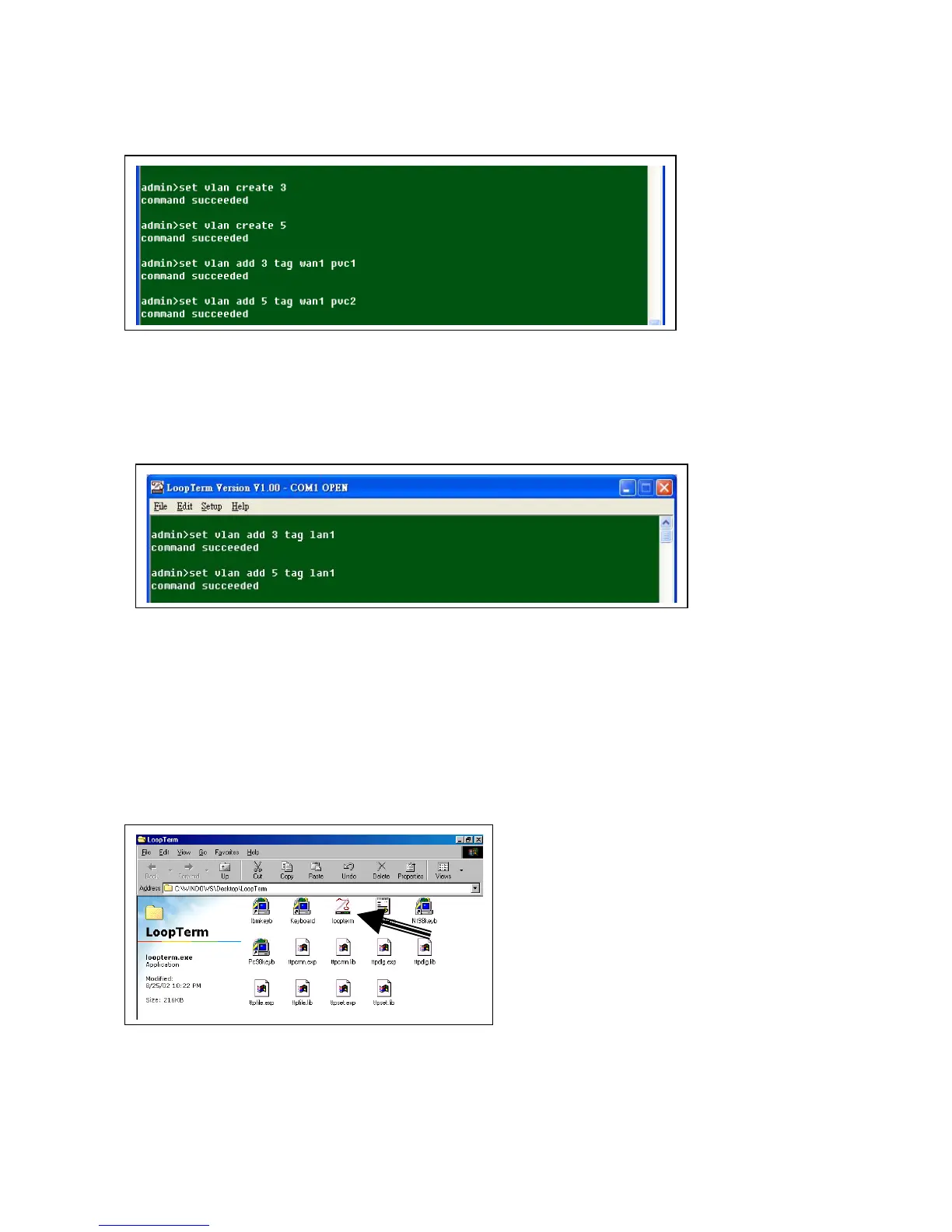

set vlan add 3 tag wan1 pvc1. Press Enter. You must also set virtual channel pvc2 to be a tagged
member for VID:5 VLAN2. Key in the command set vlan add 5 tag wan1 pvc2. Press Enter.
3. Ethernet Port Setup
You must setup the Ethernet Port to allow it to process VLAN1 (VID:3) and VLAN2 (VID:5). To set LAN1
Ethernet to be a tagged member for VID:3 VLAN1, key in the command set vlan add 3 tag lan1. Press
Enter. To set LAN1 Ethernet to be a tagged member for VID:5 VLAN2, key in the command set vlan add 5
tag lan1. Press Enter.
The setup of Application #1 (Figure 15-1) is now complete.
16.3.2 Application #2 (Fig. 15-2) Step by Step Setup Instructions
Connect a cable between the COM port of your PC and the Console port of the IP 6610. Then follow the
instructions below.
Double-click the LoopTerm icon on your PC’s desktop screen. The following screen will appear. Then
double–click on the icon in the figure below (see arrow).
1. Timeslot Setting
