Chapter 2 Loop-IP6610 Installation
6

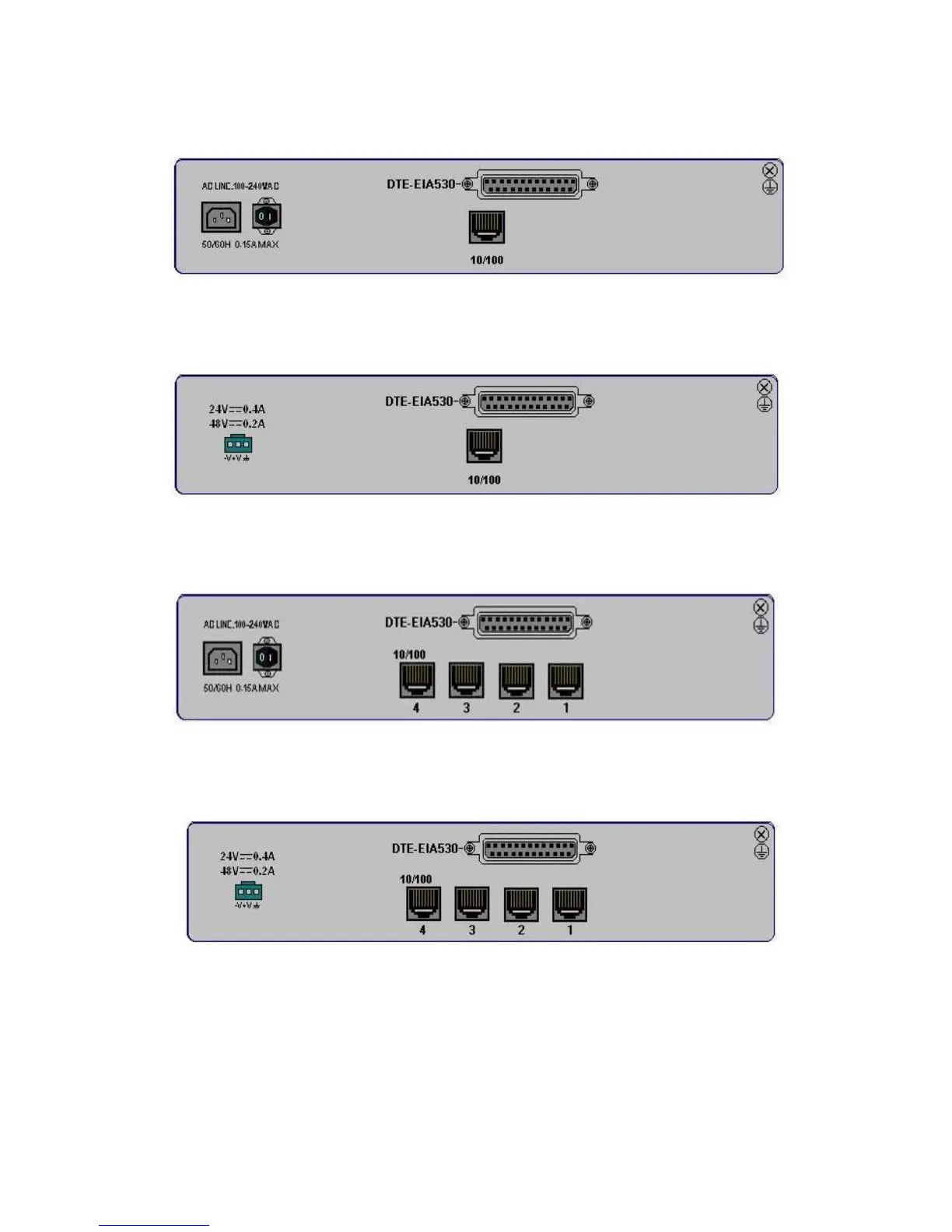

Figure 2-4 Loop-IP 6610 DTE Rear Panel (EIA 530) with AC Power (1 Port)
Figure 2-5 Loop-IP 6610 DTE Rear Panel (EIA 530) with DC Power (1 Port)
Figure 2-6 Loop-IP 6610 DTE Rear Panel (EIA 530) with AC Power (4 Port)
Figure 2-7 Loop-IP 6610 DTE Rear Panel (EIA 530) with DC Power (4 Port)
2.4 Console Port
To use the RS232 interface to configure the unit, use a straight cable to connect a VDS100 terminal to the
DB9 jack (Console Port) on the front panel of the Loop-IP6610. The VDS100 terminal can be a PC running
VDS100 emulator software. The unit is configured as a DCE.
