16.3.1 Application #1 (Fig. 15-1) Step by Step Setup Instructions
Connect a cable between the COM port of your PC and the Console port of the IP 6610. Then follow the
instructions below.

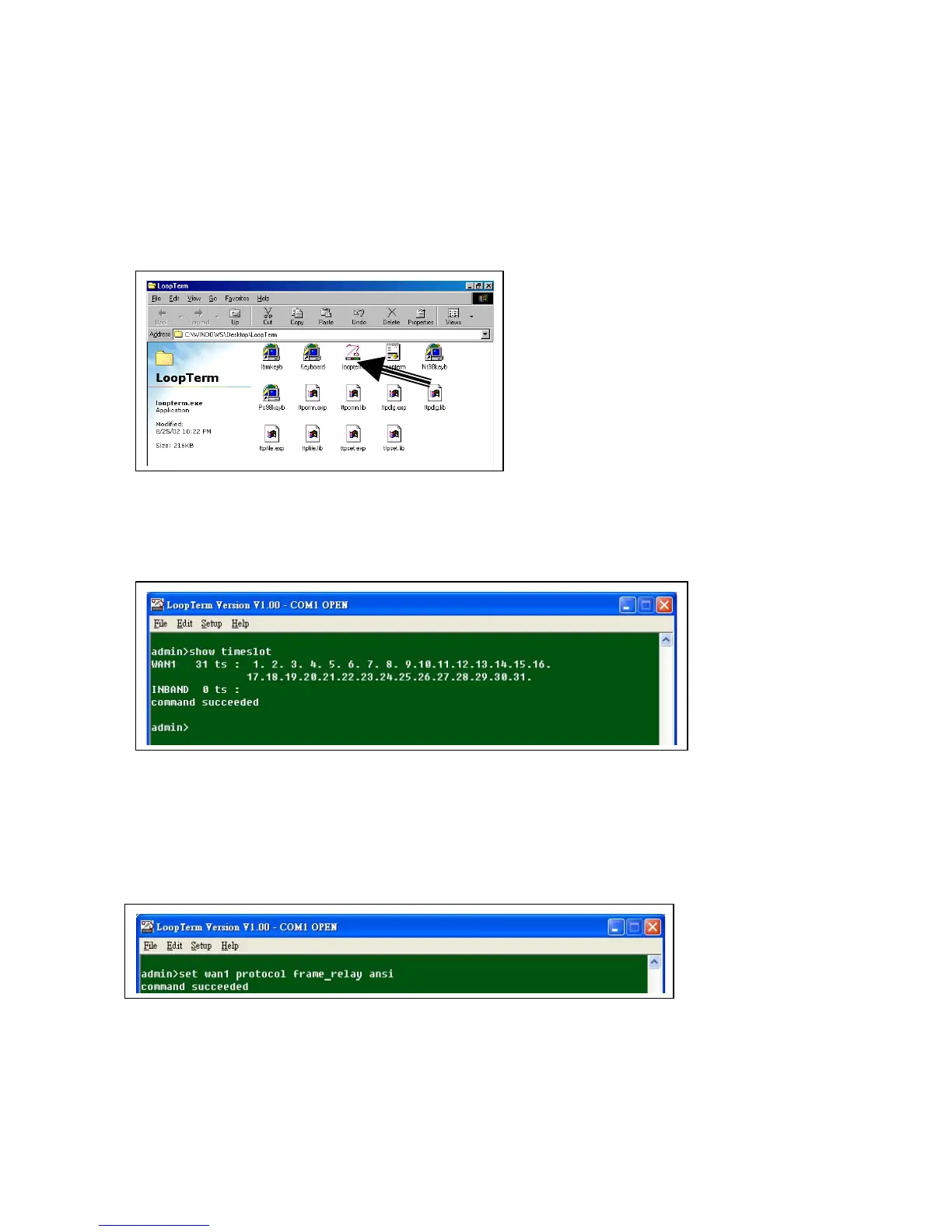

Double-click the LoopTerm icon on your PC’s desktop screen. The following screen will appear. Then
double–click on the icon in the figure below (see arrow).
1. Timeslot Setting
Make sure that your timeslot setting is correct. To do that key in the command show timeslot and then
press Enter. If the results shown are not what you want then you must reset the timeslots by using the add
timeslot command. A clear example of how to use this command can be found in Section 12.3 (Remote
Bridge -Step by Step Setup Instructions) in this Manual.
2. Frame Relay Setup
You must set up the Frame Relay virtual channel. For the purposes of this demonstration we will assume
that the DLCI of two virtual channels are 100 and 101. The DLCI that you actually use may be different.
Set WAN1 to be a frame relay interface by keying in the command set wan1 protocol frame_relay ansi.
Then press Enter.
Set virtual channel pvc1 with DLCI 100 by keying in the command set wan1 pvc dlci 1 100.
