Chapter 16 VLAN
80

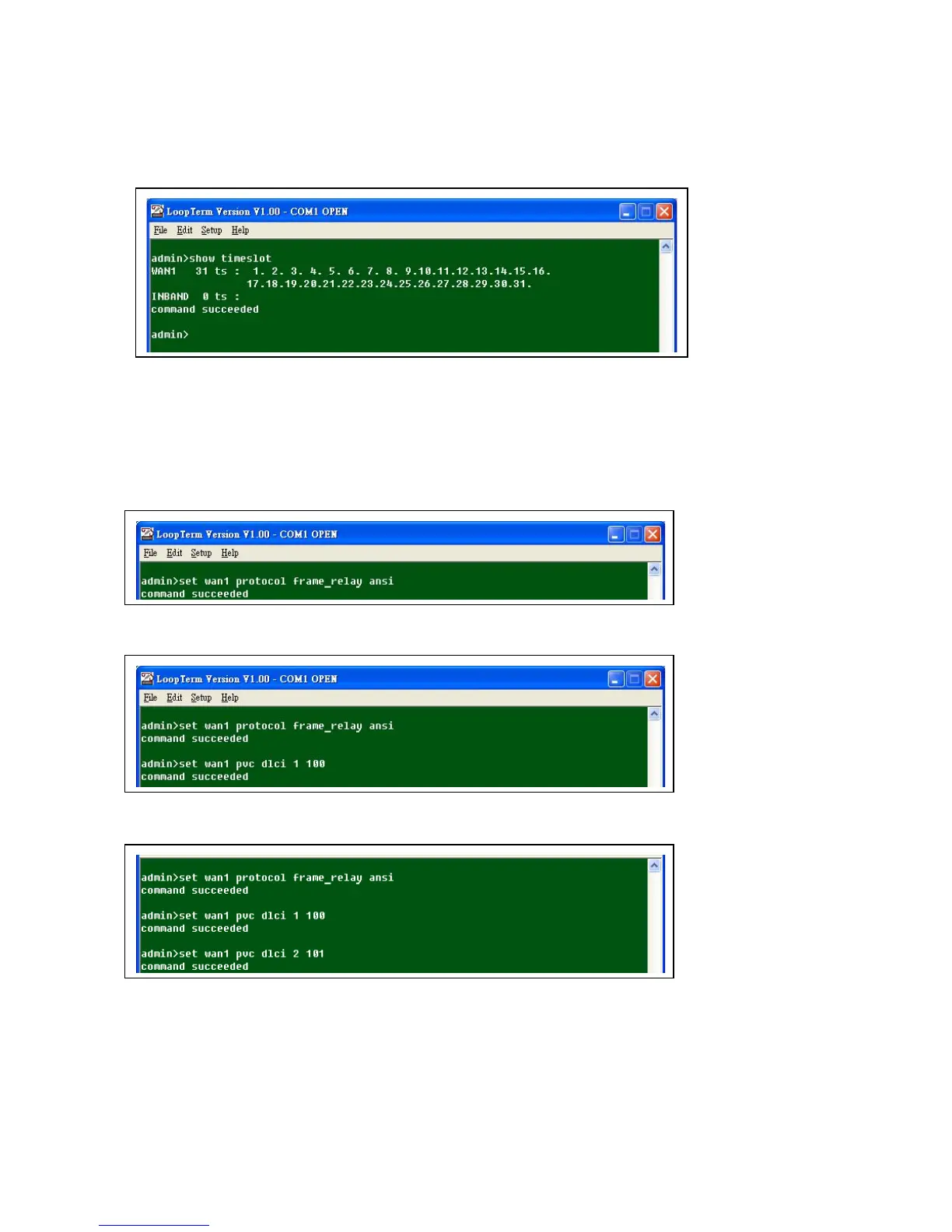

Make sure that your timeslot setting is correct. To do that key in the command show timeslot and then
press Enter. If the results shown are not what you want then you must reset the timeslots by using the add
timeslot command. A clear example of how to use this command can be found in Section 12.3 (Remote
Bridge -Step by Step Setup Instructions) in this Manual.
2. Frame Relay Setup
You must set up the Frame Relay virtual channel. For the purposes of this demonstration we will assume
that the DLCI of three virtual channels are 100, 101 and 102. The DLCI that you actually use may be
different.
Set WAN1 to be a frame relay interface by keying in the command set wan1 protocol frame_relay ansi.
Then press Enter.
Set virtual channel pvc1 with DLCI 100 by keying in the command set wan1 pvc dlci 1 100.
Press Enter.
Set virtual channel pvc2 with DLCI 101 by keying in the command set wan1 pvc dlci 2 101.
Press Enter.
Set virtual channel pvc3 with DLCI 102 by keying in the command set wan1 pvc dlci 3 102.
Press Enter.
