Loop Telecom IP6610 User Manual

Chapter 15 STP/RSTP Setup
70

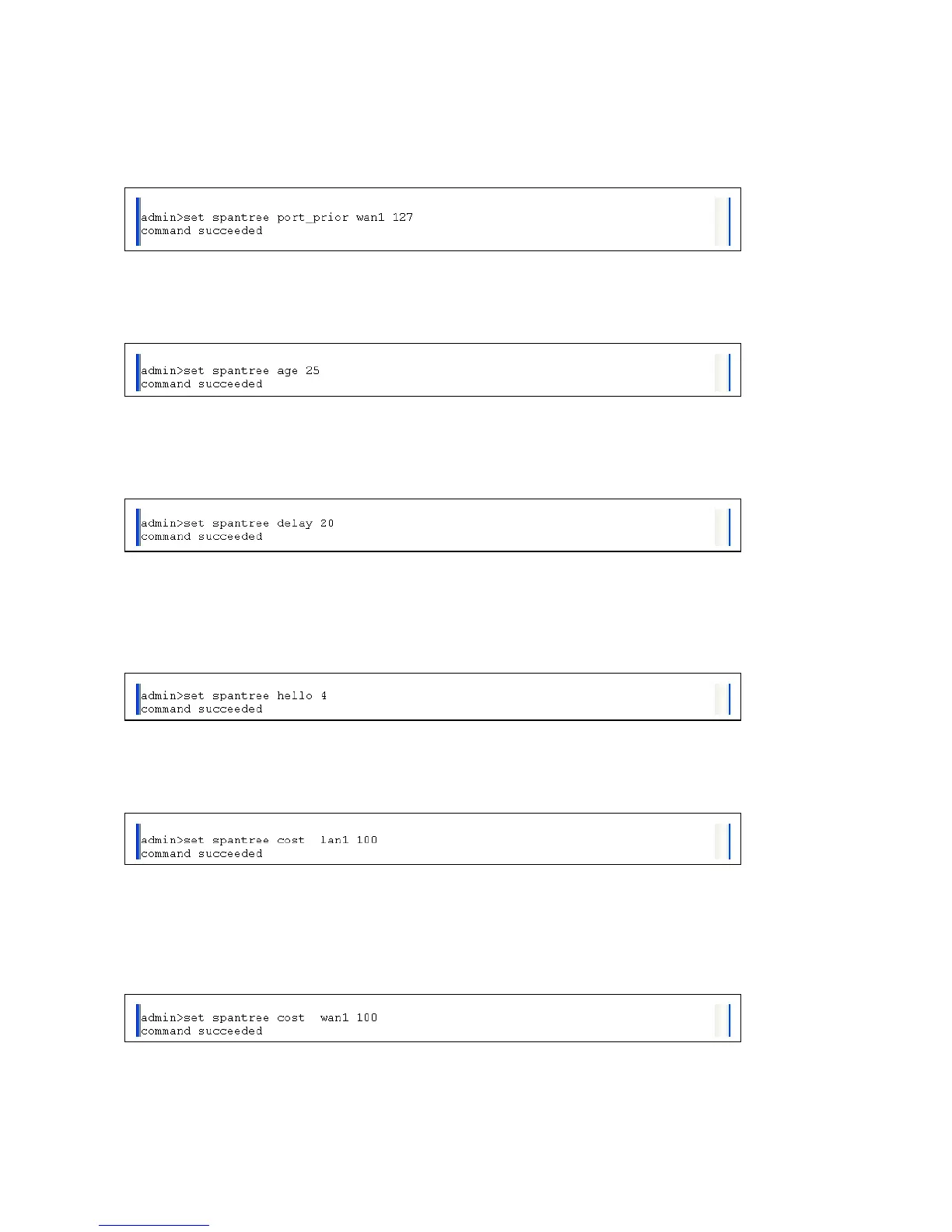

Set up the WAN port priority. Key in the command set spantree port_prior followed by the Port type ( we
chose wan1), followed by the priority value (we chose 127). Press Enter. A sample screen is shown below.
Set up the span tree age period. Key in the command set spantree age followed by a time value in
seconds ( we chose 6). Press Enter. A sample screen is shown below.
Set up the span tree delay period. Key in the command set spantree delay followed by a time value in
seconds ( we chose 20). Press Enter. A sample screen is shown below.
Set up the span tree hello period. Key in the command set spantree hello followed by a time value in
seconds ( we chose 4). Press Enter. A sample screen is shown below.
Set up the LAN port cost. Key in the command set spantree cost followed by the Port type ( we chose
Lan1), followed by the cost value (we chose 100). Press Enter. A sample screen is shown below.
Set up the WAN port cost. Key in the command set spantree cost followed by the Port type ( we chose
wan1), followed by the cost value (we chose 100). Press Enter. A sample screen is shown below.
