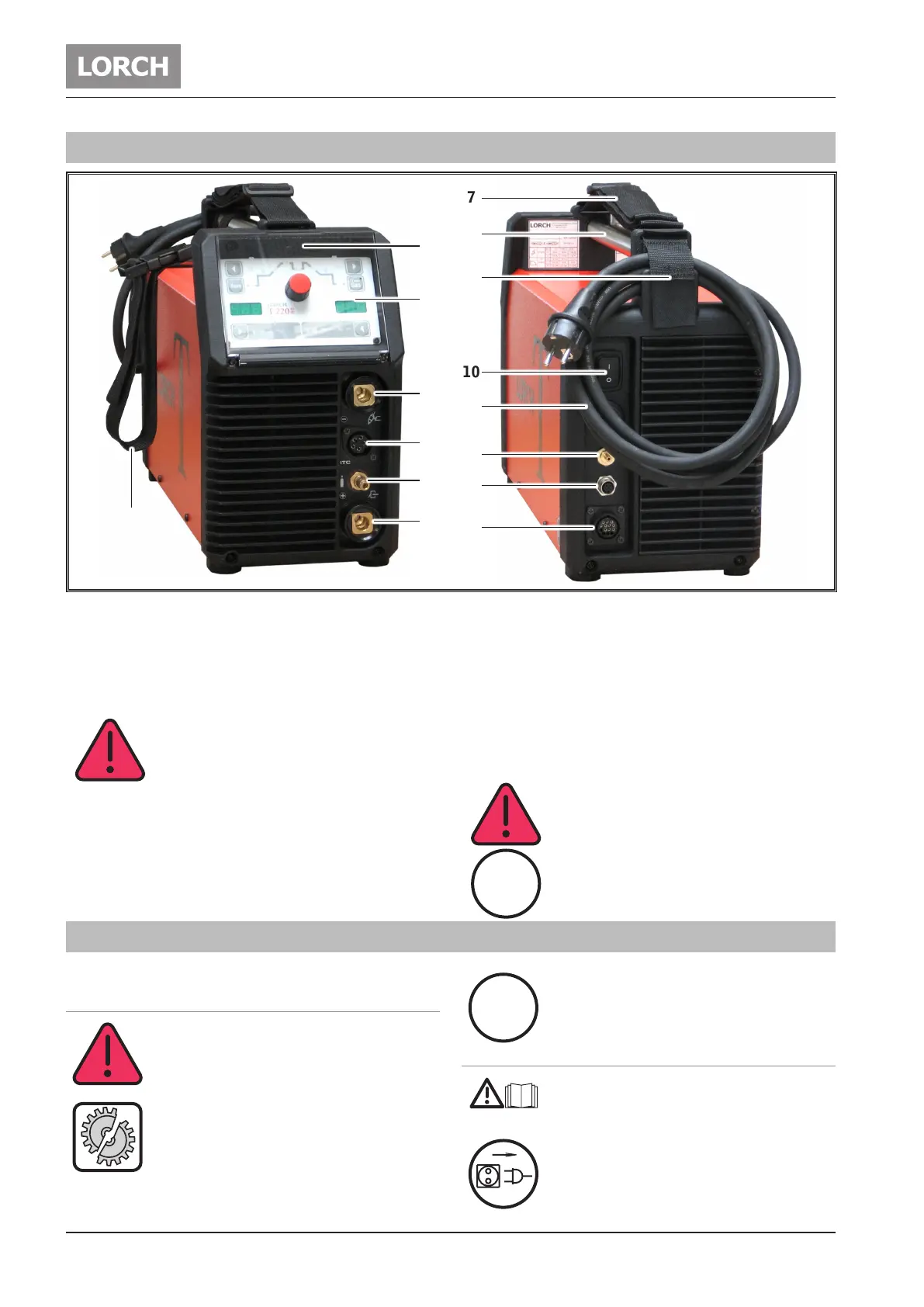

1 Machine elements
2
3
4
5
6
1
15
10
11
12
13
14
7
8
9
1 Control panel cover
2 Control panel
3 Connecting plug socket (T-series DC) torch/elec-
trode holder/component guiding
3 Connecting plug socket (T-series AC/DC) torch/
electrode holder
The full HF ignition voltage is present at the
wires of the torch control socket.
Never connect anything else than the con-
trol plug of the hand torch.
4 Torch switch socket
5 Gas connection torch
6 Connecting plug socket(T-series DC) component
guiding/Electrode holder
6 Connecting plug socket (T-series AC/DC) compo-
nent guiding
7 Transportation belt
8 Handle (hoisting point)
9 Mains cable holder
10 Main switch
11 Mains cable
12 Shielding gas connection
13 LorchNet socket
14 Remote control socket
15 Accessories belt
The carrying strap is exclusively for the
transport by a person.
Illustrated or described accessories are
partially not included in the scope of deliv-
ery. Subject to change.
2 Explanation of symbols
2.1 Meaning of the symbols in the opera-
tion manual
Danger of physical injury or death!
If the danger warnings are disregarded,
this can cause slight or severe injuries or
even death.
Danger of property damage!
Disregarding danger warnings can cause
damage to workpieces, tools, and equip-
ment.
General note.
Designates useful information about the
product and equipment.
2.2 Meaning of the symbols on the machine
Danger!
Read the user information in the operation
manual.
Disconnect the mains plug!
Pull out the mains plug before opening the
housing.
