LORCH ControlPro T-Series User Manual

Before commissioning
- 39 -
04.19 909.1709.9-05
12.5 Overview: Connecting the torch and electrode
3
6
T-series DC
T-series
AC/DC

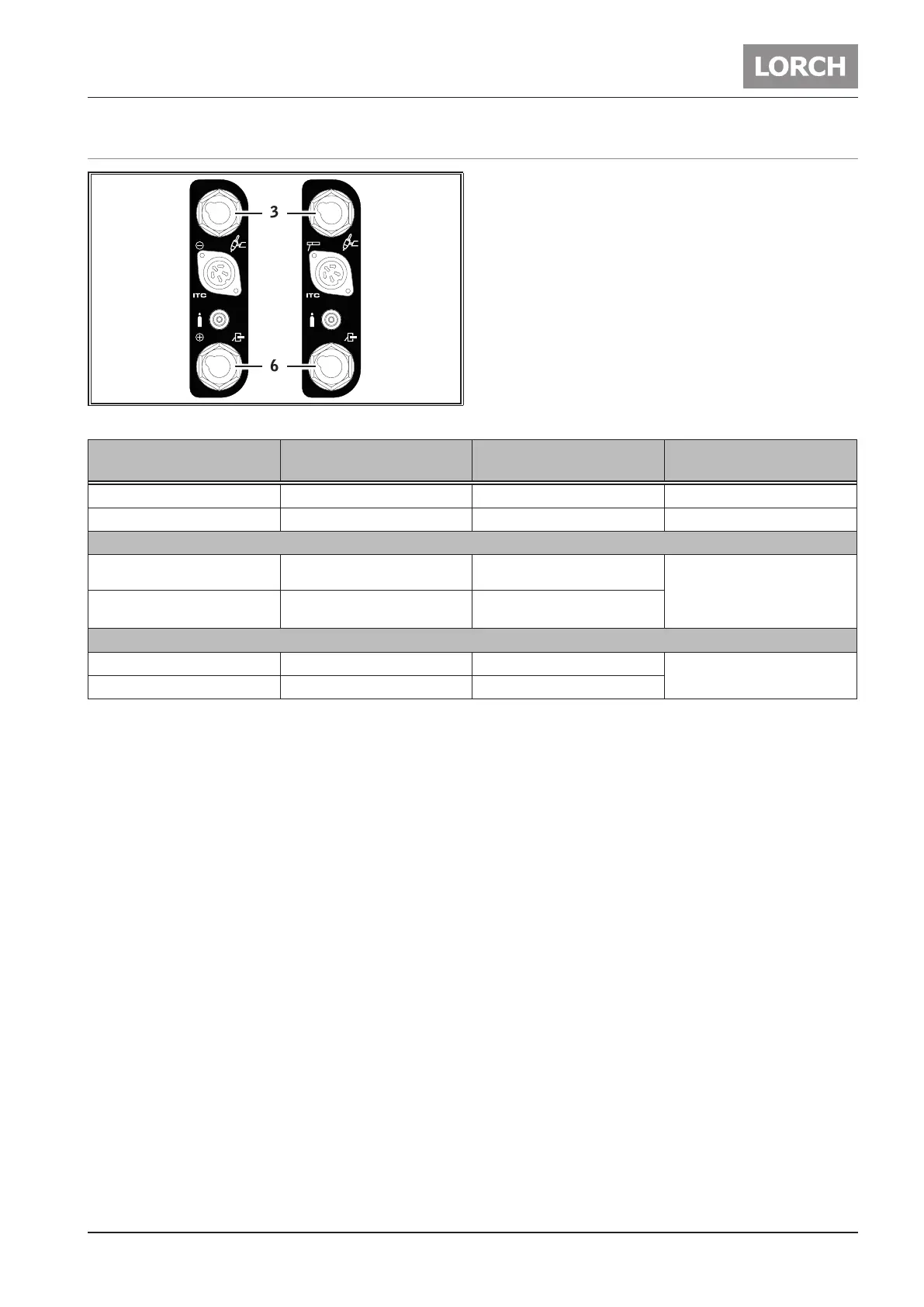

Abb. 7: Connecting the torch and electrode
Mode Connection bush 3 (top)
Connection bush 6
(bottom)
Note
TIG DC Torch Component guide
TIG AC Torch Component guide
T-series DC ControlPro
Electrode plus terminal Component guide Electrode holder Polarity is determined by the
connection of the electrode
holder and the component
guide
Electrode minus pole Electrode holder Component guide
T-series AC/DC ControlPro
Electrode plus terminal Electrode holder Component guide Polarity is changed on the
control panel
Electrode minus pole Electrode holder Component guide
Tab. 1: Anschlusstabelle
