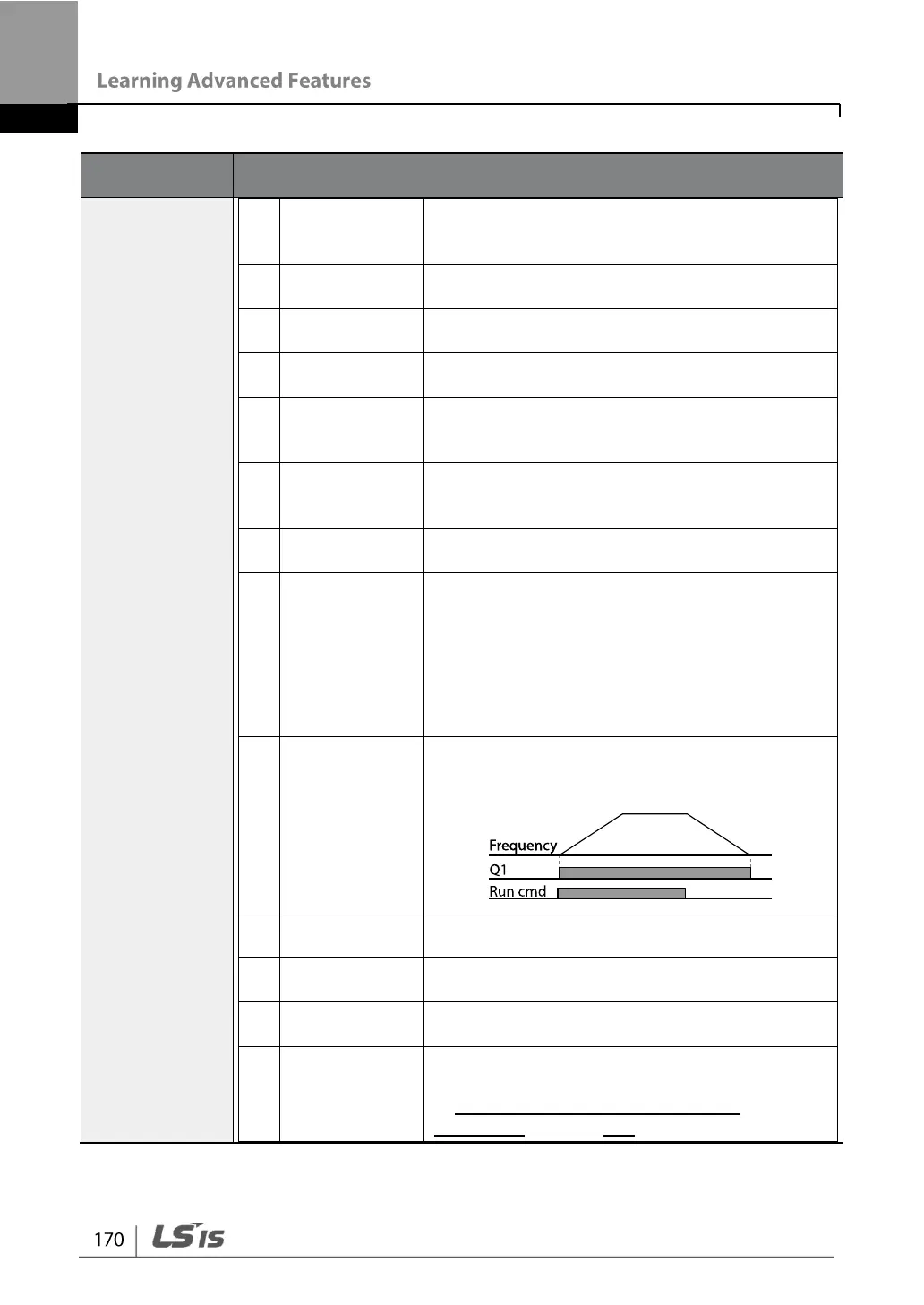

LSIS G100 User Manual

Code and
Features
Description
6
Inverter
overload (IOL)
Outputs a signal when a fault is triggered from
a protective function operation by inverter
overload inverse proportion.
7
Under Load
(Underload)
Outputs a signal at load fault warning.
8
Fan Warning
(Fan Warning)
Outputs a signal at fan fault warning.
9
Stall
(motor stall)
Outputs a signal when a motor is overloaded
and stalled.
10
Over Voltage
(Over Voltage)
Outputs a signal when the inverter DC link
voltage rises above the protective operation
voltage.
11
Low Voltage
(Low Voltage)
Outputs a signal when the inverter DC link
voltage drops below the low voltage protective
level.
12
Over Heat
(Over Heat)
Outputs signal when the inverter overheats.
13
Lost
Command
(Lost
Command)
Outputs a signal when there is a loss of analog
input terminal and RS-485 communication
command at the terminal block. Outputs a
signal when communication power and
expansion an I/O power card is installed, and
also outputs a signal when losing analog input
and communication power commands.
14
RUN
Outputs a signal when operation command is
entered and the inverter outputs voltage. No
signal output during DC braking.
15
Stop
Outputs a signal at operation command off,
and when there is no inverter output voltage.
16
Steady
(Steady)
Outputs a signal in steady operation.
17
Inverter Line
(Inverter Line)
Outputs a signal while the motor is driven by
the inverter line.
18
Comm Line
(Comm Line)
Outputs a signal if a multi-function input
terminal (exchange) is input. For details, refer
to 5.17 Commercial Power Source
Transition on page 154.
