MacDon R113 - Page 45

214713 37 Revision A
1022693
A
B
D
C

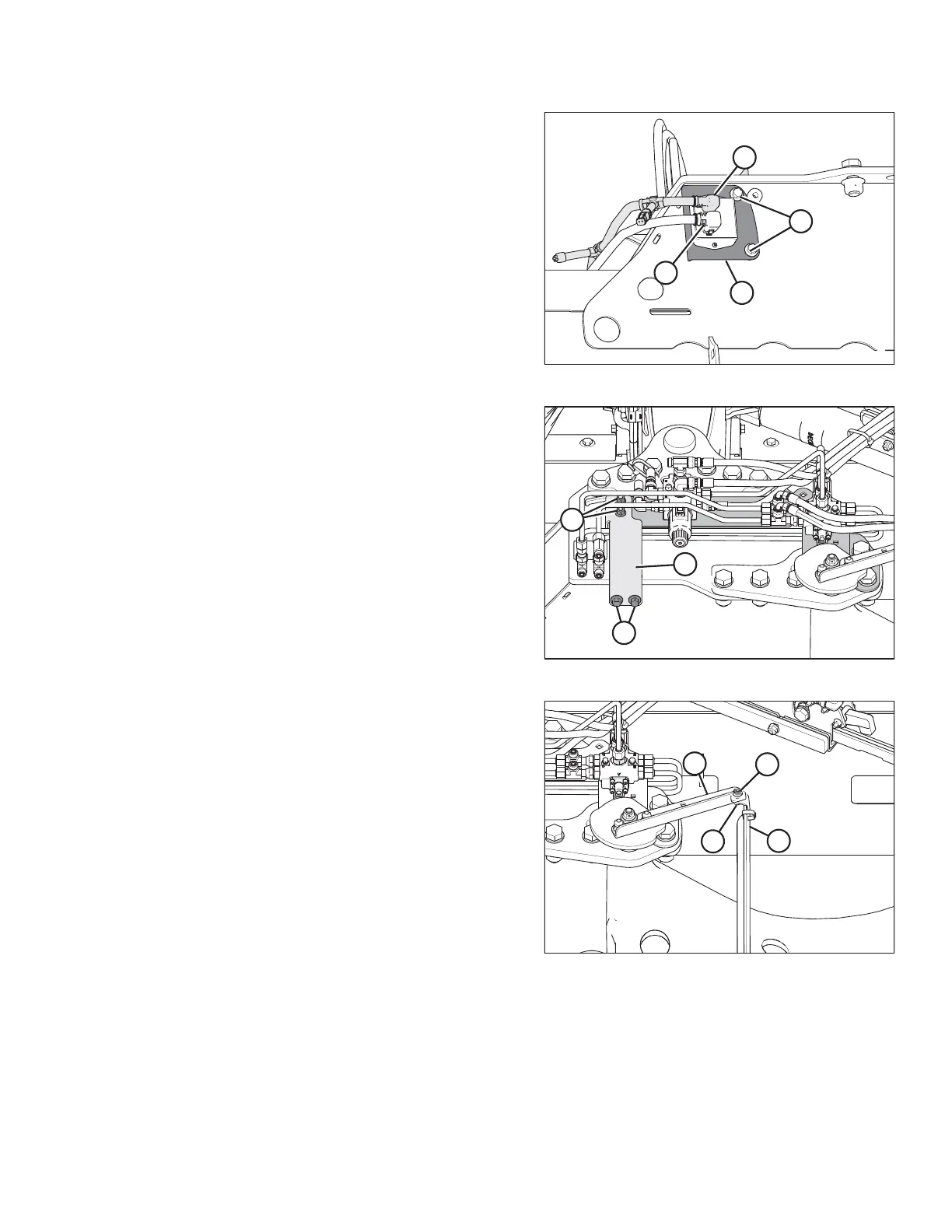

Figure 3.68: Lightening Module Harness
6. Disconnect plugs P102 (A) and P301 (B) from the
transport lighting module.
7. Remove bolts (C) and remove the transport lighting
module, complete with support bracket (D).
1014868
A
C
B
Figure 3.69: Support Plate
8. Install support plate (A) and secure it with bolts (B).
9. Install bolts (C), but do NOT tighten.
1014950
A
B
C
D
Figure 3.70: Support Plate
10. Remove nut (A) from support (D).
11. Install bolt (B) through support (D) and support (C), and
then reinstall nut (A).
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
