MacDon R113 - Page 46

214713 38 Revision A

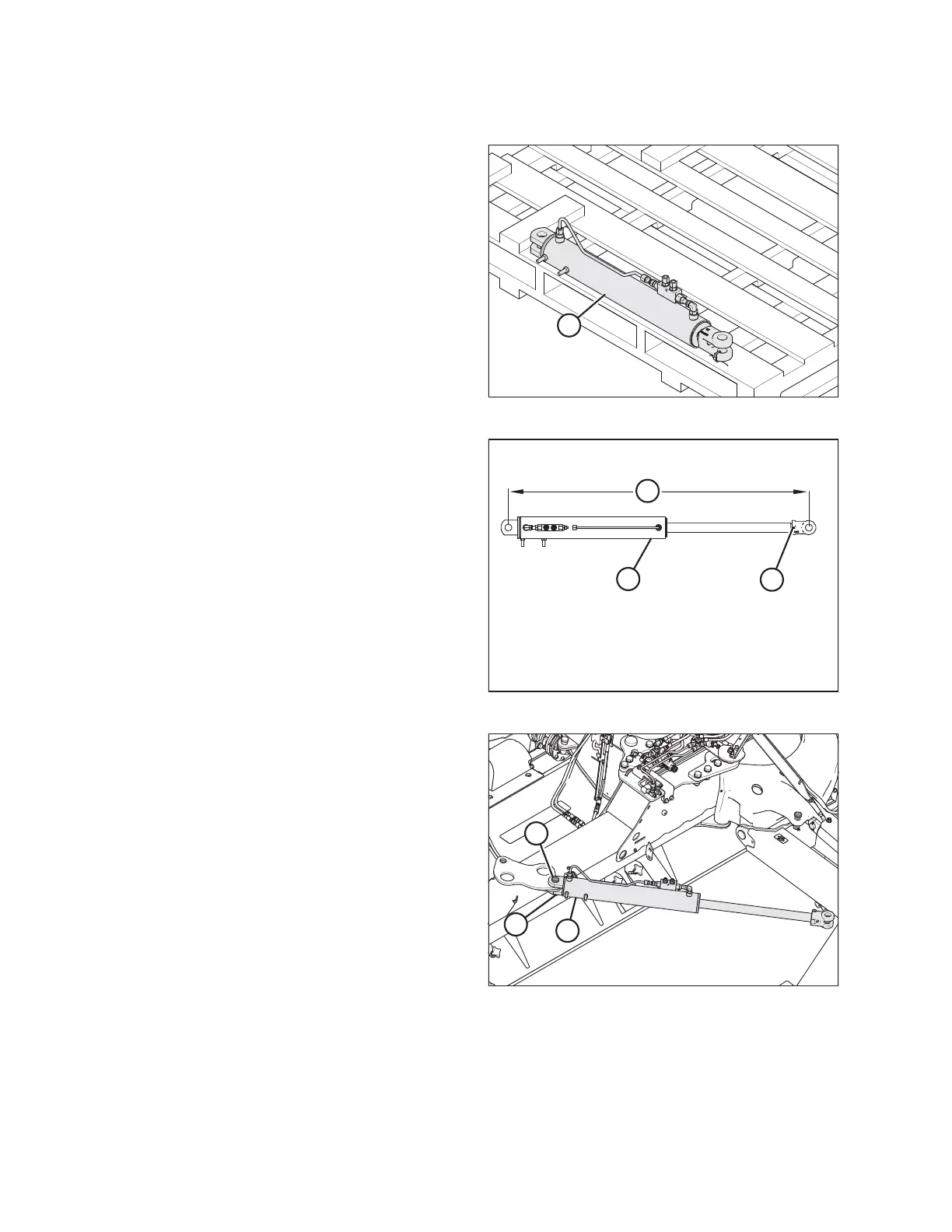

Installing Transport Swing Cylinder
1014867
A
Figure 3.71: Transport Swing Cylinder
1. Remove the shipping bag from the pallet.
2. Retrieve the clevis pin from the shipping bag.
3. Support transport swing cylinder (A). Cut straps
securing the cylinder to the pallet.
1016379
A
B
C
Figure 3.72: Transport Swing Cylinder
IMPORTANT:
Transport swing cylinder (A) must be primed before
installing it on the carrier frame.
4. To prime the cylinder, use a hydraulic power pack or
tractor hydraulics. Extend and retract transport swing
cylinder (A) until all the air has been removed. Extend
transport cylinder (A) to 142 cm (56 in.) between center
of pins.
NOTE:
If you need to adjust the cylinder length, remove bolt (C)
that secures the clevis end. Rotate the clevis to
lengthen or shorten the distance between pins (B).
When the cylinder length is correct, reinstall bolt (C) to
secure the clevis end.
1014869
A
B
C
Figure 3.73: Transport Swing Cylinder
5. Install barrel end of the transport swing cylinder (A) onto
the carrier frame with clevis pin (B). Secure clevis pin
with cotter pin (C).
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
