214713 39 Revision A

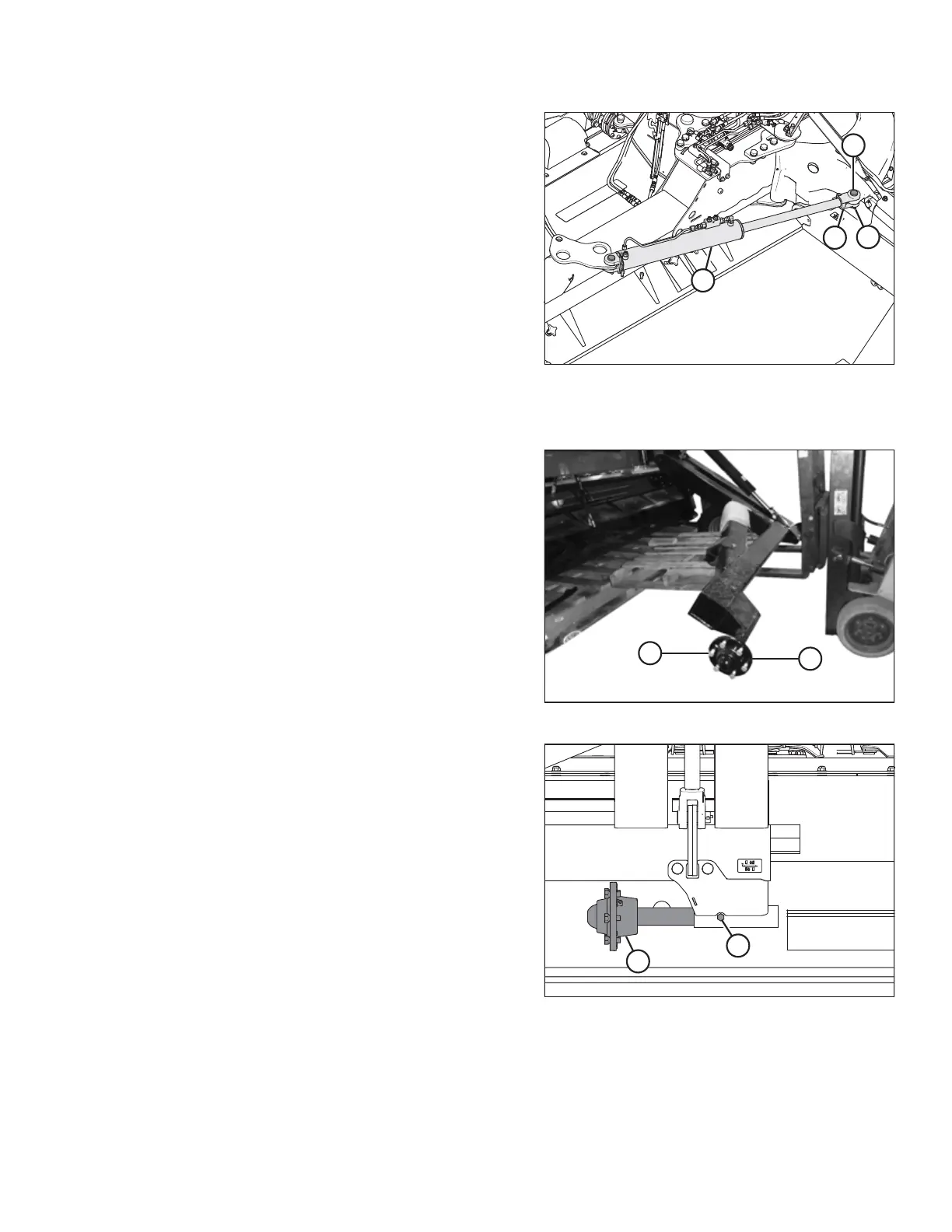

Figure 3.74: Swing Cylinder (Rear Left View)
6. Connect clevis end (B) of the transport swing
cylinder (A) to transport casting. Align holes and install
clevis pin (C). Secure with cotter pin (D).
Installing Transport Wheels
Figure 3.75: Transport Wheel
1. Cut the straps securing the transport assembly to the
pallet.
2. Slowly lower forklift until transport assembly wheel
spindles (A) are approximately 305 mm (12 in.) off
the ground.
3. Remove wheel bolts (B) from spindle hub (A) on the
left side.
Figure 3.76: Axle Assembly Relocation
4. Remove bolt (B) holding axle assembly (A) in place.
5. Slide axle assembly (A) out of the support.
ASSEMBLING THE DISC MOWER (WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT)
