6-2
1. OUTLINE OF REMOTE CONTROLLER
1.1 FEATURE
This system is designed principally for the following purposes:
This Interactive Remote Controller includes both Transmitter and Receiver which facilitate remote control
of the Crane which is purchased with this device.
This Interactive Remote Controller provides an operation of the Crane at the most convenient place away
from it within a range of the length of the connection cable. In addition, its LCD screen indicates “Rated
total load”, “Actual Load” and “Load factor (by a bar chart)”, which ensures proper operation based on
these information.
1.2 CONFIGURATION
The configuration of this system is as a below:

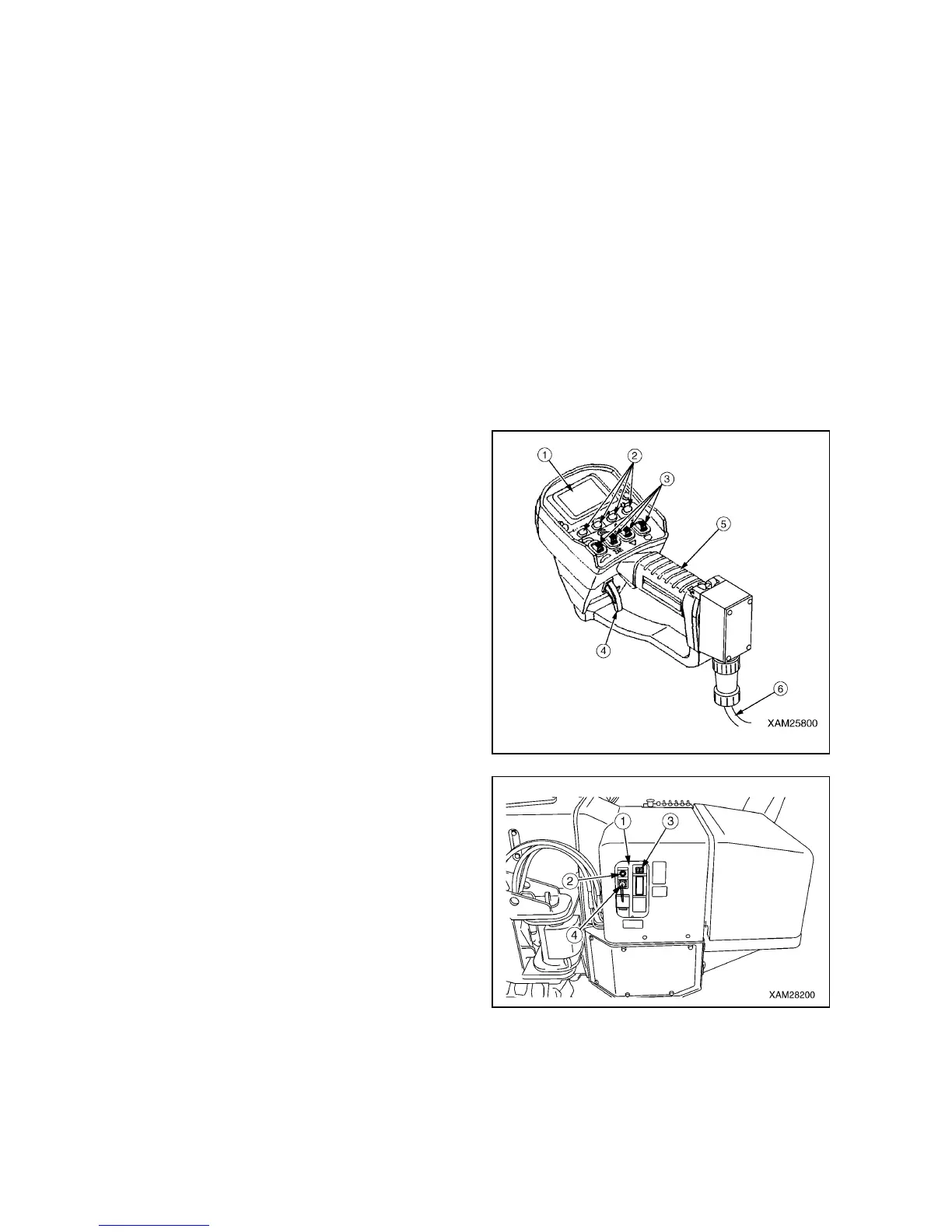

[1] TRANSMITTER
The Transmitter is equipped with LCD screen (1), Six
control buttons (2), Four operation levers (3),
Accelerator lever (4), Grip (5) and Connection cable
(6).
The Transmitter sends signals for crane operations
to the Receiver through the connection cable so that
remote operation of the Crane can be carried out. In
addition, the Transmitter collects the load data from
the Moment limiter of the Crane through the cable,
which are displayed in the LCD screen as “Rated
total load”, “Actual load” and “Load factor (by a bar
chart)”.
[2] RECEIVER
The Receiver which is installed in the Crane equips
with Control box (1), Main switch (2), Monitor display
(3), and Receptacle (4), etc.
The Receiver receives operation signals from the
Transmitter through the connection cable which
control the Crane.
Further, the load data from the Moment limiter of the
Crane are delivered to the Transmitter through the
cable.
