7.2.3 CHECKING “CRANE MODE” OPERATION
• Ensure that all the outriggers are securely settled, before starting crane operations.
Any crane operations where outriggers are improperly used cause the tip of the Crane or other
serious accidents.
• The Crane is inoperable in such event where the LCD screen in the Transmitter shows an error
message or the Monitor display in the Receiver shows an error code.
Without fail, examine the cause of the error and perform appropriate service when any fault is
identified,or contact us or our agents for services.

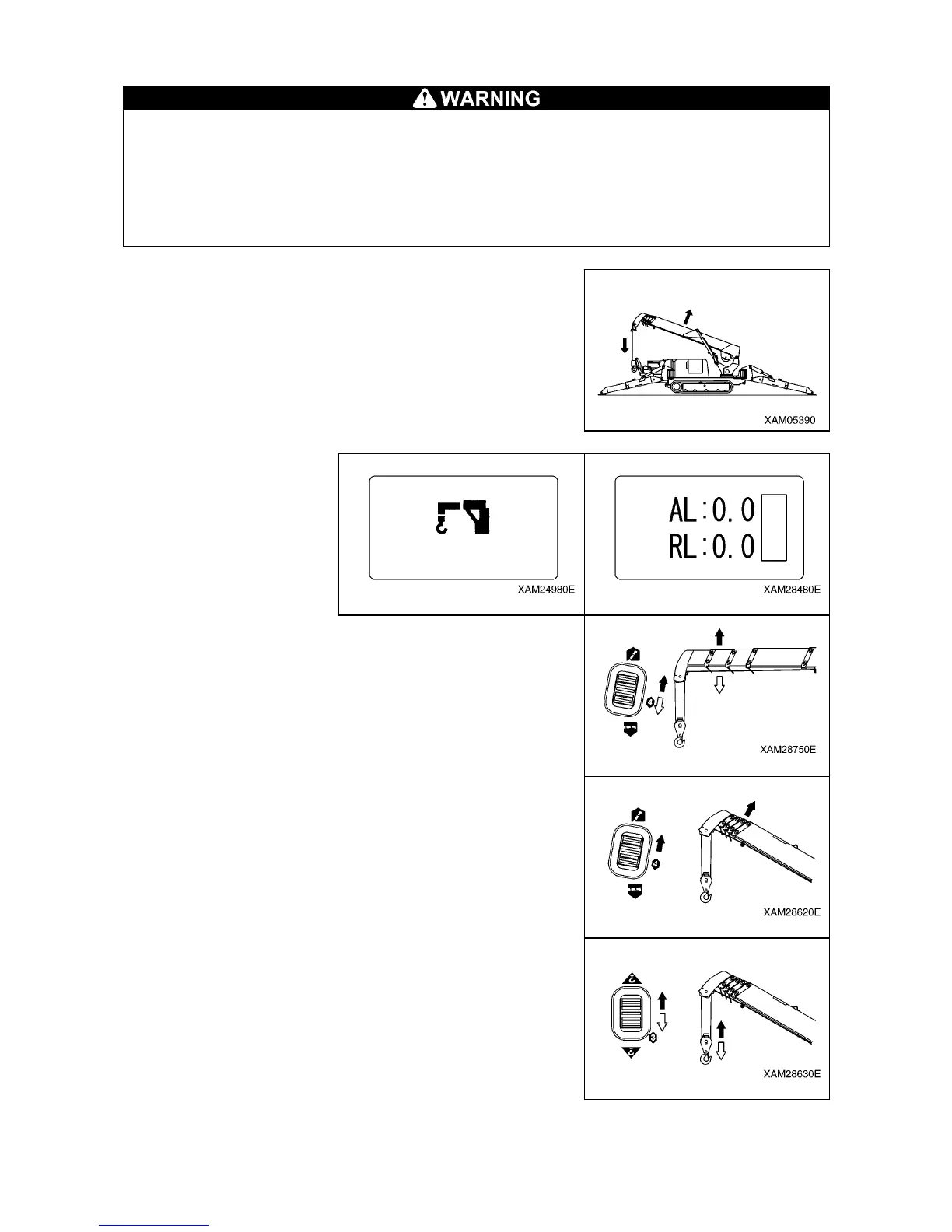

1. Start the engine by the Starter switch of the Crane.
2. Refer to the contents of “OPERATION 2.16 Operations before
Crane Operations” and “OPERATION 2.17 Crane Operation
Posture” and configure the Crane as shown in the figure, right.
3. Push the Power switch of the Transmitter to power ON.
4. Then turn ON the Main switch of the Receiver.
5. Enter into “CRANE MODE”; confirm that the indication as
“CRANE MODE” is displayed in the LCD screen.
6. Use the Boom derricking lever to the both “Raise (upper)” and
“Lower (lower)” area, pull the Accelerator lever and check that
the boom follows the lever operation.
7. Raise the boom to the sufficient angle (approximately 60
degree) by the Boom derricking lever, pushing to the “Raise
(upper)” area.
8. During the Hook raising and lowering lever manipulation, to the
“Raise (upper)” and “Lower (lower)” area respectively, pull the
Accelerator lever and check that the hook follows the lever
operation.
To Next Page
