3. MACHINE OVERVIEW
3.1 SPECIFIED OPERATIONS
This machine is to be used for operation listed below.
• Crane operation
This machine is a mobile crane with a rubber track traveling dolly (carrier) mounted with a boom crane.
This self-propelled crane is capable of moving (traveling) in the worksite and craning an object weighing
within the rated total load.
This is also a remote-controlled crane.

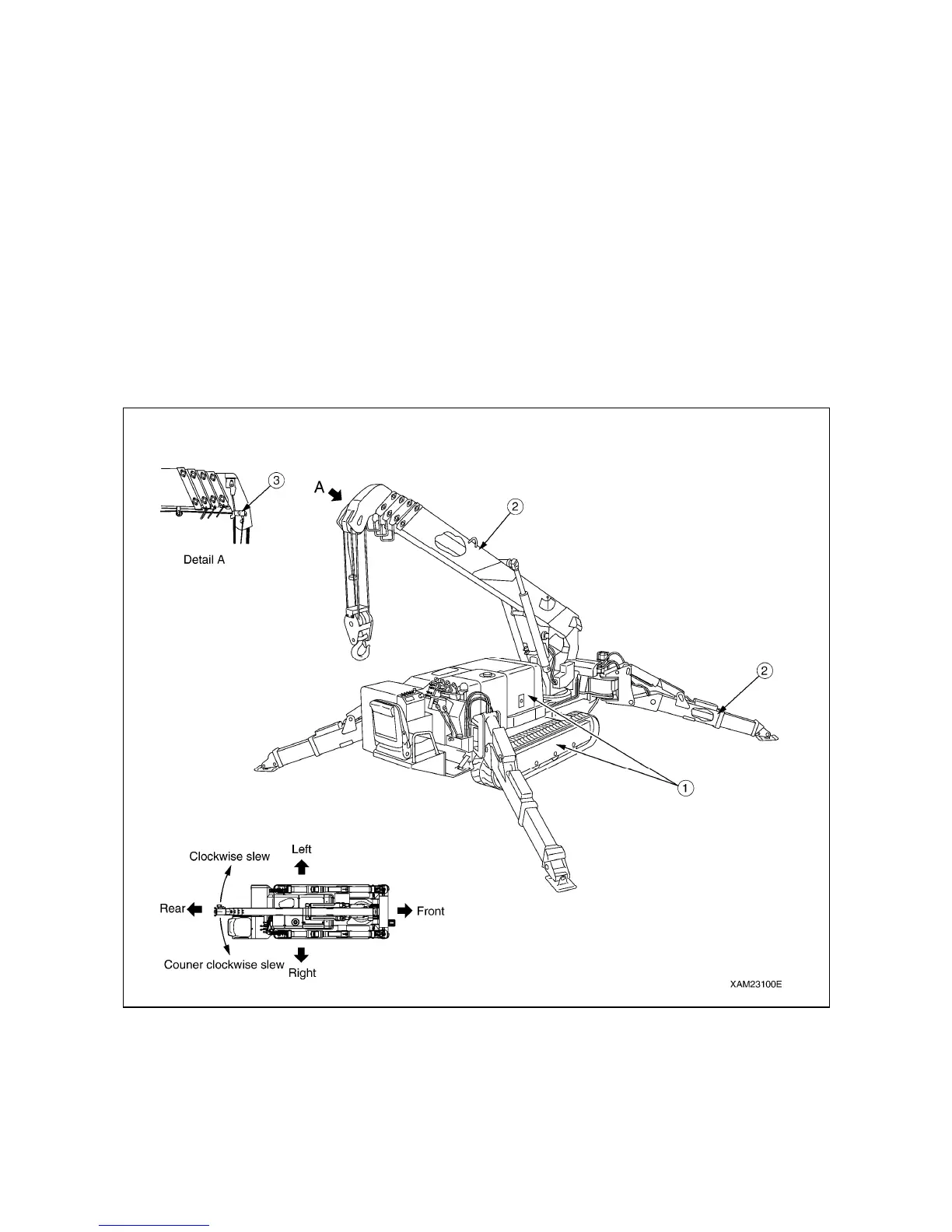

3.2 MACHINE CONFIGURATION
(1) Traveling dolly
(2) Crane
(3) Safety device
Viewed from the operation seat, the front, back, left, and right of the
machine are determined in this manual, viewing in the traveling
direction (front) of the machine.
Boom slewing motion is determined with the machine viewed from
immediately above; slew clockwise denotes right-handed motion and
slew counterclockwise denotes left-handed motion.
EXTERNAL VIEW
