6-20

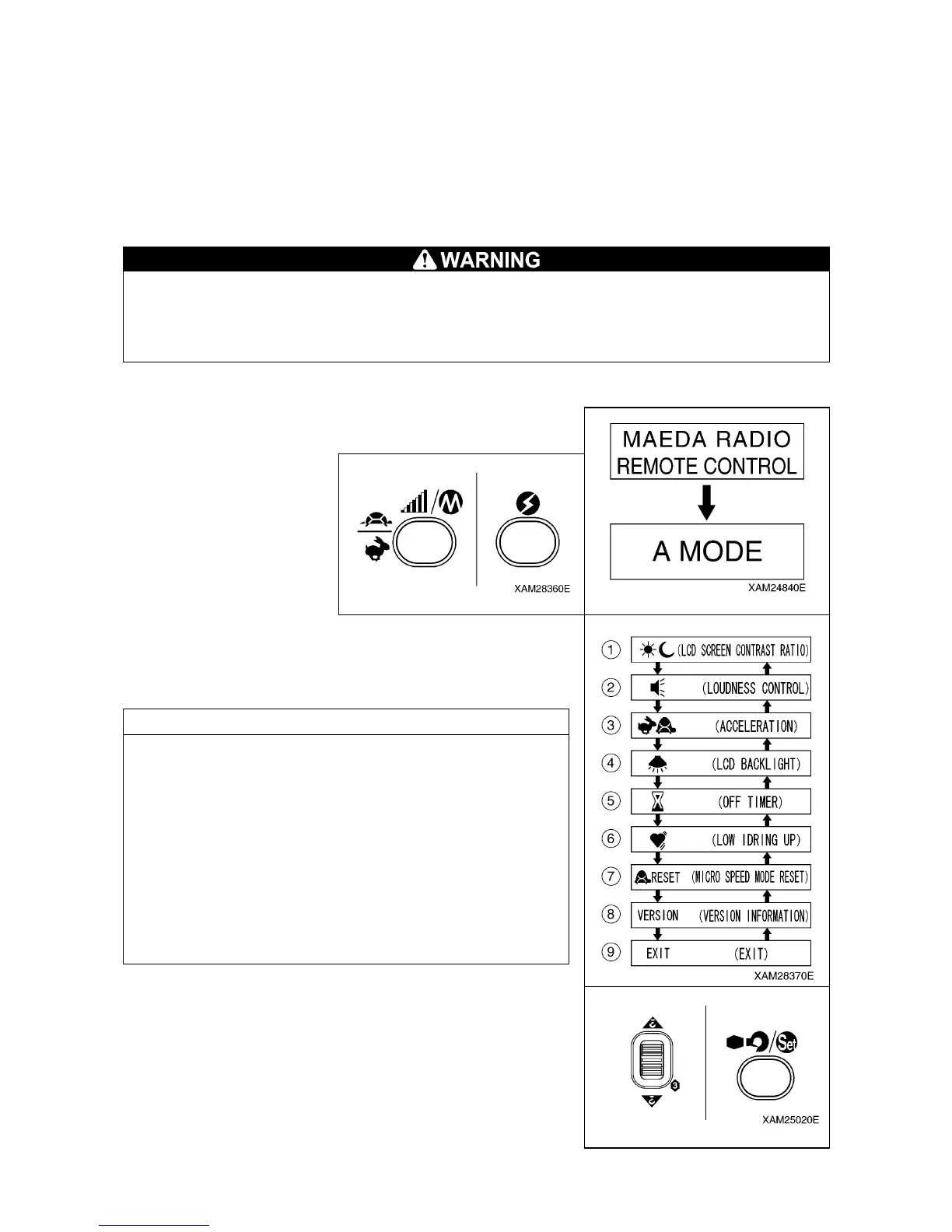

6. MODE SETTING OF THE TRANSMITTER
This device provides the “A MODE” in which the initial values of the Transmitter are established, the
“OUTRIGGER MODE” in which the outriggers are set or stowed, and the “CRANE MODE” where the
Crane is operated. This device is designed to switch to the applicable mode for the operation by the
Transmitter.
6.1 A MODE
• Before entering into A MODE, always turn the main switch of the Receiver to the OFF position.
• Before the setting of values for A MODE, ensure that “A MODE” is correctly indicated in the
LCD screen. Otherwise, un-expected motion of the Crane may result a serious accident, due to
entry of values in the other mode, by mistake.
6.1.1 OPENING A MODE SCREEN
Push the Speed/Mode button and Power switch jointly for 2
seconds. A message as “A MODE” appears in the LCD screen for
2 seconds.
6.1.2 MESSAGES IN THE A MODE SCREEN
Refer to the figure in the right for the A MODE screen:
It contains eight function items ((1) to (8)) and the Exit command
((9)).
NOTES
In the A MODE, following applicable items are adjustable, as
required:
(1) “Contrast ratio” of LCD screen
(2) “Loudness control”
(3) The “Engine speed limit”, controllable by the Accelerator
lever.
(4) LCD backlight, “Time for lighting, until the auto-cut”.
(5) “Auto Shut-OFF time” of the Transmitter power.
(6) “Low idling rate” of the engine. (Idling only while the crane
operation levers are manipulated.)
(7) Reset of “user values” by the speed set-up mode.
(8)Version information of the Transmitter firmware.
To switch the function item to another, or to change the setting
value of the function, use, the Hook raising and lowering lever.
Then, to fix the value in the function, push the hook Stow/Setting
button.
