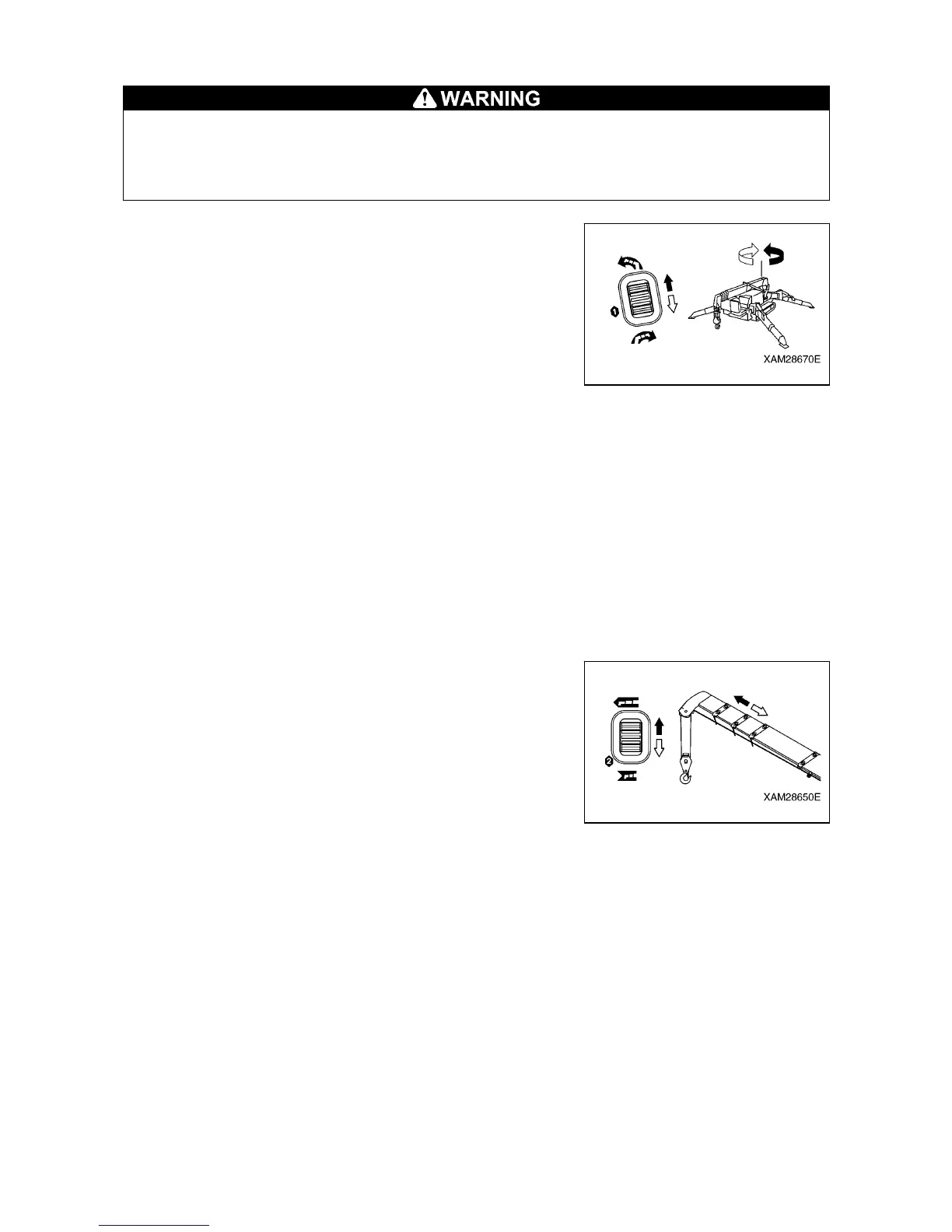

8.3.1 SLEWING OPERATION
At the slewing operation, actuate the Accelerator lever carefully and always keep in low speed.
Also, actuate the Accelerator lever slowly and delicately to avoide abrupt slewing.
Such abrupt acceleration or deceleration especially while a load is hung will make a large
impact to the Crane and may result a serious hazard such as Crane tipping or damage.
[1] SLEW CLOCKWISE
Push the Slewing/No.1 outrigger operation lever to “Clockwise
(lower)”, then pull the Accelerator lever slowly.
The boom slews clockwise, provided that you look down the Crane
from the sky.
[2] SLEW COUNTERCLOCKWISE
Push the Slewing/No.1 outrigger operation lever to “Counter
clockwise (upper)”, then pull the Accelerator lever slowly.
The boom slews counterclockwise, provided that you look down
the Crane from the sky.
[3] STOP SLEWING
Release the Accelerator lever slowly, then release the
Slewing/No.1 outrigger operation lever to return it to its neutral
position.
The boom stops slewing.
8.3.2 BOOM TELESCOPING
[1] BOOM “EXTENDING”
Push the Boom telescoping/No.2 outrigger operation lever to
“Extend (upper)”, then pull the Accelerator lever slowly.
The boom extends.
[2] BOOM “RETRACTING”
Push the Boom telescoping/No.2 outrigger operation lever to
“Retract (lower)”, then pull the Accelerator lever slowly.
The boom retracts.
[3] STOP TELESCOPING
Release the Accelerator lever slowly, then next release the Boom
telescoping/No.2 outrigger operation lever to return it to the neutral
position.
The boom stops telescoping.
