3. MACHINE EACH SECTION

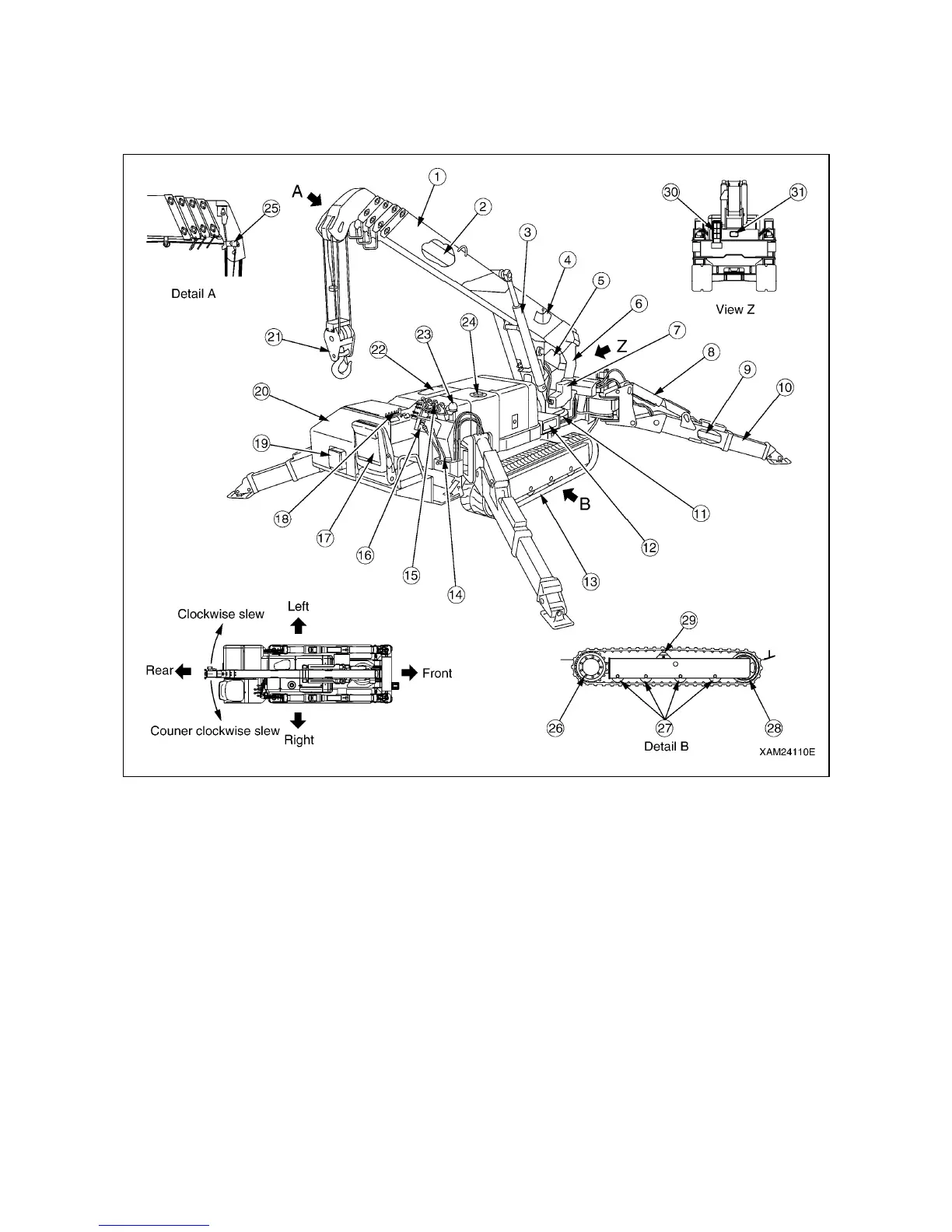

3.1 MACHINE EACH UNIT
(1) Boom
(2) Boom telescoping cylinder (Inside the boom)
(3) Boom derricking cylinder
(4) Load indicator
(5) Winch
(6) Post
(7) Moment limiter transducer
(8) Outrigger setting cylinder
(9) Outrigger extension cylinder (Built in the box)
(10) Outrigger
(11) Slewing device
(12) Inverter unit
(13) Rubber track
(14) Traveling operation unit
(15) Crane operation unit
(16) Moment limiter display unit
(17) Operation seat
(18) Instrument panel
(19) Power supply box
(20) Power unit cover
(21) Hook block
(22) Hydraulic oil tank (Inside machinery cover)
(23) Outrigger un-set warning lamp
(24) Fuel tank (Inside machinery cover)
(25) Over hoist detector
(26) Traveling motor and sprocket
(27) Track roller
(28) Idler
(29) Carrier roller
(30) Working status lamp
(31) Headlight
