1.6 MOMENT LIMITER (OVERLOAD DETECTOR)

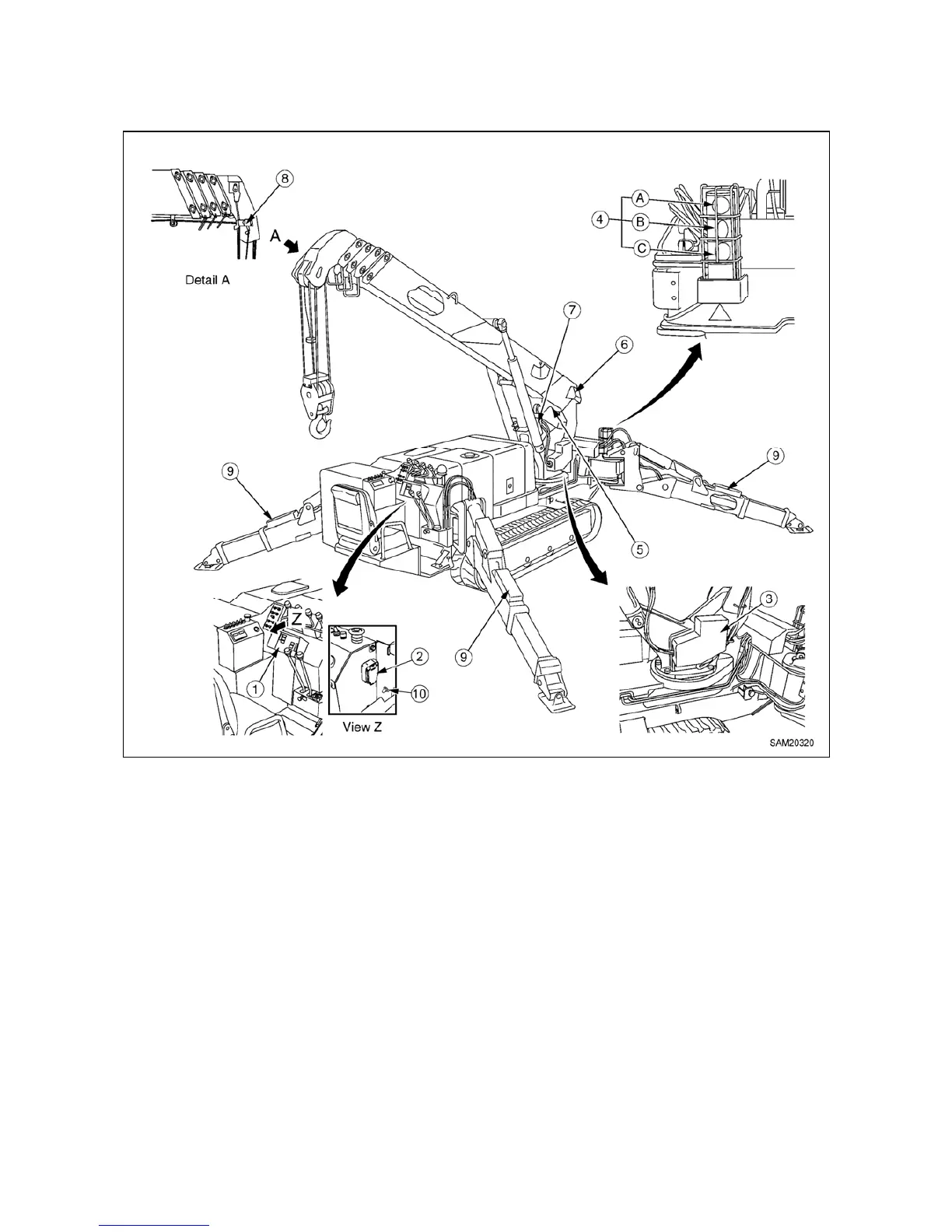

1.6.1 MOMENT LIMITER CONFIGURATION
(1) Moment limiter display unit
(2) Emergency stop cancel switch
(3) Moment limiter converter
(4) Working status lamp
(A) Red working status lamp (Warning lamp for
load factor of 100 % or more)
(B) Yellow working status lamp (Pre-warning
lamp for load factor of 90 to 100 %)
(C) Green working status lamp (Working lamp
for load factor of less than 90 %)
(5) Boom length gauge (inside boom)
(6) Boom angle gauge (side of boom rear edge)
(7) Pressure sensor (derrick cylinder) (two)
(8) Overwind alarm detector (side of boom tip)
(9) Outrigger position detection switch
(10) Boom lift bypass switch
