Maeda MC-305C-2 - Moment Limiter for 850 kg Searcher Hook

9-6

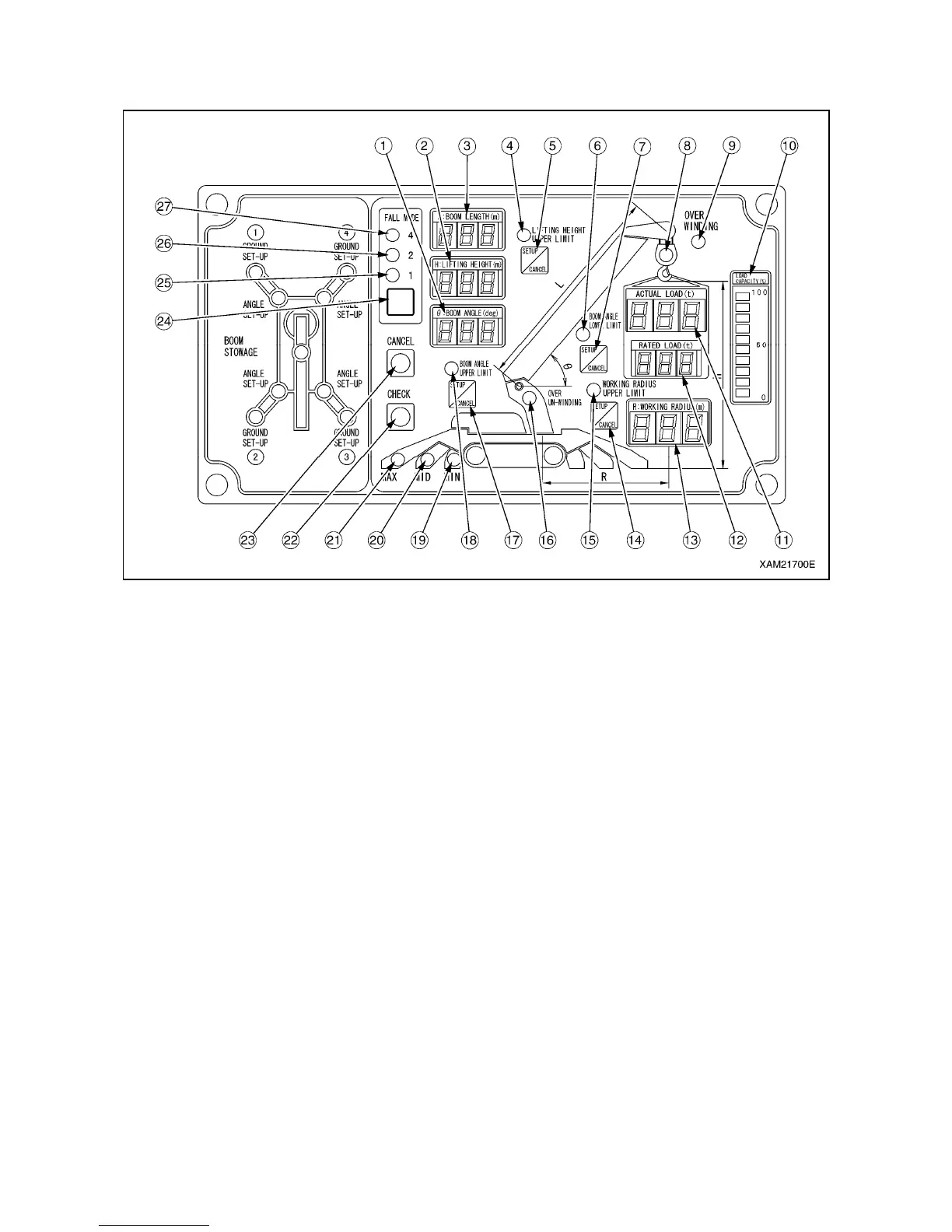

3. MOMENT LIMITER DISPLAY UNIT
(1) Boom angle display
(2) Lifting height display
(3) Boom length display
(4) Boom lifting height upper limit LED (Orange)
(5) Boom lifting height upper limit switch
(Setup / cancel)
(6) Boom angle lower limit LED (Orange)
(7) Boom angle lower limit switch (setup / cancel)
(8) Load factor LED
(Changes to green, yellow, and red)
(9) Over winding LED (Red)
(10) Load capacity display (Yellow)
(11) Actual load display
(12) Rated total load display
(13) Working radius display
(14) Working radius upper limit switch
(Setup / cancel)
(15) Working radius upper limit LED (Orange)
(16) Over un-winding LED (Orange)
(17) Boom angle upper limit switch (setup / cancel)
(18) Boom angle upper limit LED (Orange)
(19) Outrigger MIN. extension LED (Blue)
(20) Outrigger MID. extension LED (Blue)
(21) Outrigger MAX. extension LED (Blue)
(22) Check switch
(23) Cancel switch
(24) Fall mode / Option selector switch
(25) 1-fall LED (Blue)
(26) 2-fall LED (Blue)
(27) 4-fall LED (Blue)
