3-36

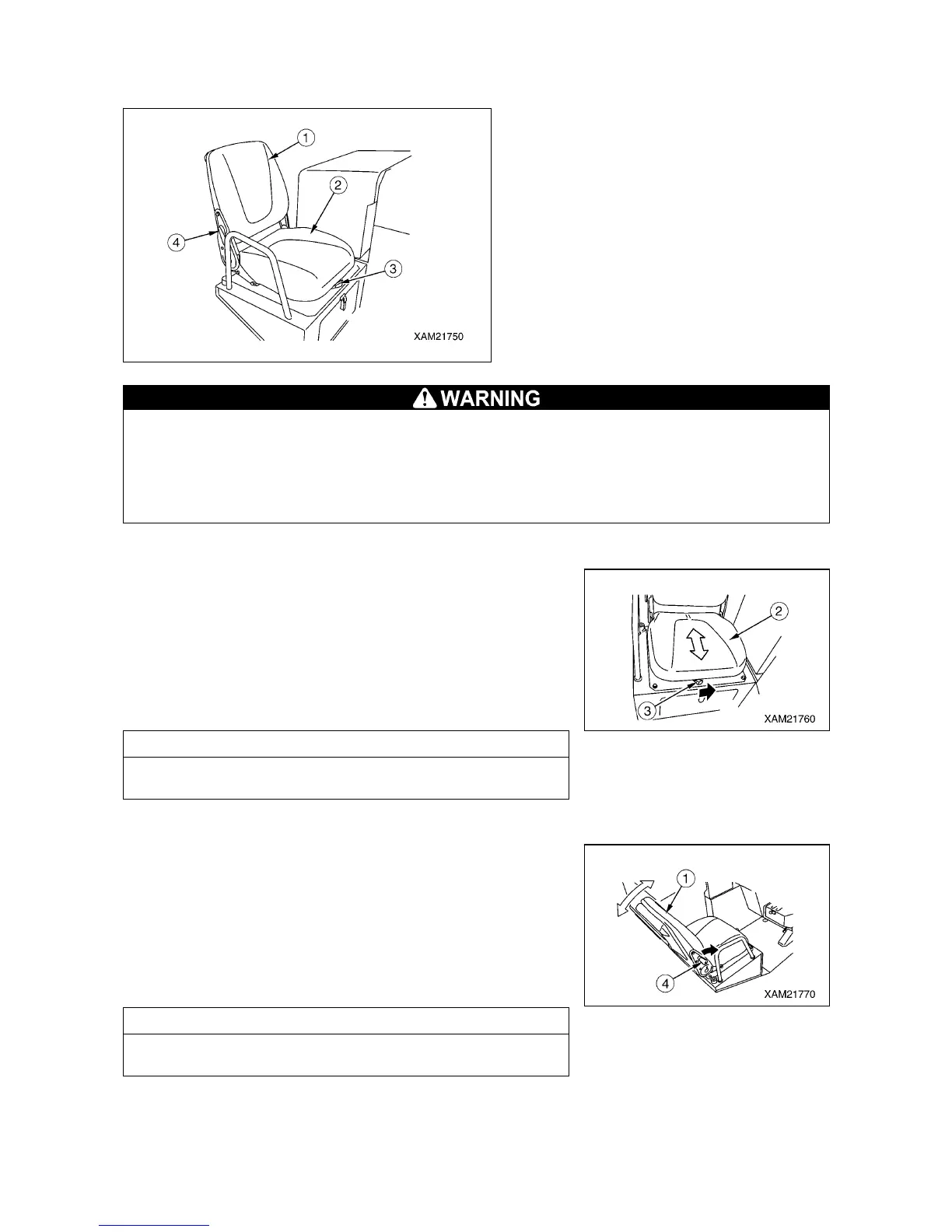

1.8 OPERATION SEAT
(1) Back seat
(2) Seat
(3) Slide adjusting lever
(4) Reclining adjusting lever
• Adjust the operation seat before driving. Be sure to make adjustment especially after someone
else has used it.
• Press your back against the back seat of the operation seat and adjust the operation seat so
that you can operate the acceleration pedal, control levers and traveling lever without any
difficulty.
• Never adjust the operation seat while driving the machine.
[1] SEAT FORWARD/BACKWARD SLIDE ADJUSTMENT
Use the slide adjusting lever (3) to make adjustment.
1. While pushing the slide adjusting lever (3) leftward, move the
seat (2) forward/backward.
2. After adjusting the seat (2), release your hand from the slide
adjusting lever (3).
The seat (2) is fixed to the position.
NOTES
The forward/backward slide adjustment distance is 120 mm in 6
steps.
[2] RECLINING ADJUSTMENT
Use the reclining adjusting lever (4) to make adjustment.
1. While pushing the reclining adjusting lever (4) forward, move the
backseat (1) forward/backward.
2. After adjusting the back seat (1), release your hand from the
reclining adjusting lever (4).
The back seat (1) is fixed to the position.
NOTES
The reclining adjustment angle is 75 degrees in 7 steps forward
and 23 steps in backward.
