Maeda MC-305C-2 - Outrigger Operation Panel

3-13

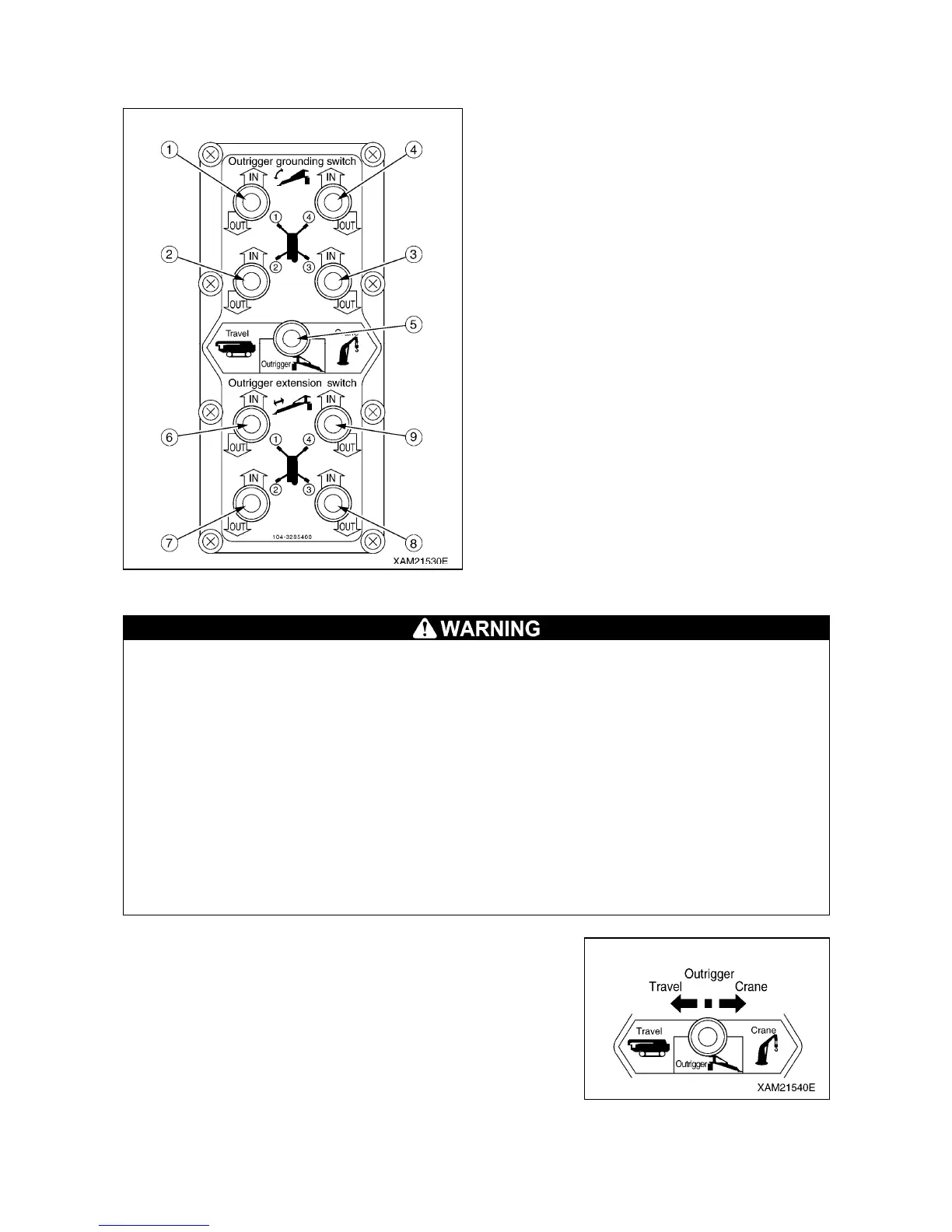

1.4 OUTRIGGER OPERATION PANEL
(1) Outrigger (1) setting switch
(2) Outrigger (2) setting switch
(3) Outrigger (3) setting switch
(4) Outrigger (4) setting switch
(5) Work selector switch
(TRAVEL, OUTRIGGER, CRANE)
(6) Outrigger (1) extension switch
(7) Outrigger (2) extension switch
(8) Outrigger (3) extension switch
(9) Outrigger (4) extension switch
[1] WORK SELECTOR SWITCH (TRAVEL, OUTRIGGER, CRANE)
• When operating the work selector switch to the “TRAVEL” position, be sure to stow the crane
and put the machine in the “traveling posture”. Driving the machine not in the “traveling
posture” can overturn the machine, resulting in serious accidents.
• Be sure to operate the traveling lock lever to the “LOCK” position before outriggering or crane
operation.
Note that if the traveling lock lever is not at the “LOCK” position, you can still travel the
machine even if the work selector switch is operated to the “OUTRIGGER” or “CRANE”
position. Be careful not to let your hand or body touch the traveling levers. The machine may
move, causing serious accidents.
• Be sure to set all the outriggers when turning the work selector switch to the “CRANE”
position to perform the crane operation. Inappropriate setting of outriggers will prevent the
crane operation because of the outrigger safety device function.
• Always stow the boom when performing the outrigger operation with the work selector switch
set to the “OUTRIGGER” position. If the boom is not stowed properly, the outrigger safety
device function prevents the outrigger operation from being performed.
Use this switch to switch the work state of the machine
(“TRAVEL”, ”OUTRIGGER”, ”CRANE”).
• Travel: Push down the switch to the left. Now you can travel the
machine.
• Outrigger: Push down the switch to the center position. Now you
can perform the outrigger operation.
• Crane: Push down the switch to the right. Now you can perform
the crane operation.
