4.6 POWER SUPPLY SEPARATION
(BETWEEN POWER SUPPLY EQUIPMENT AND MACHINE)

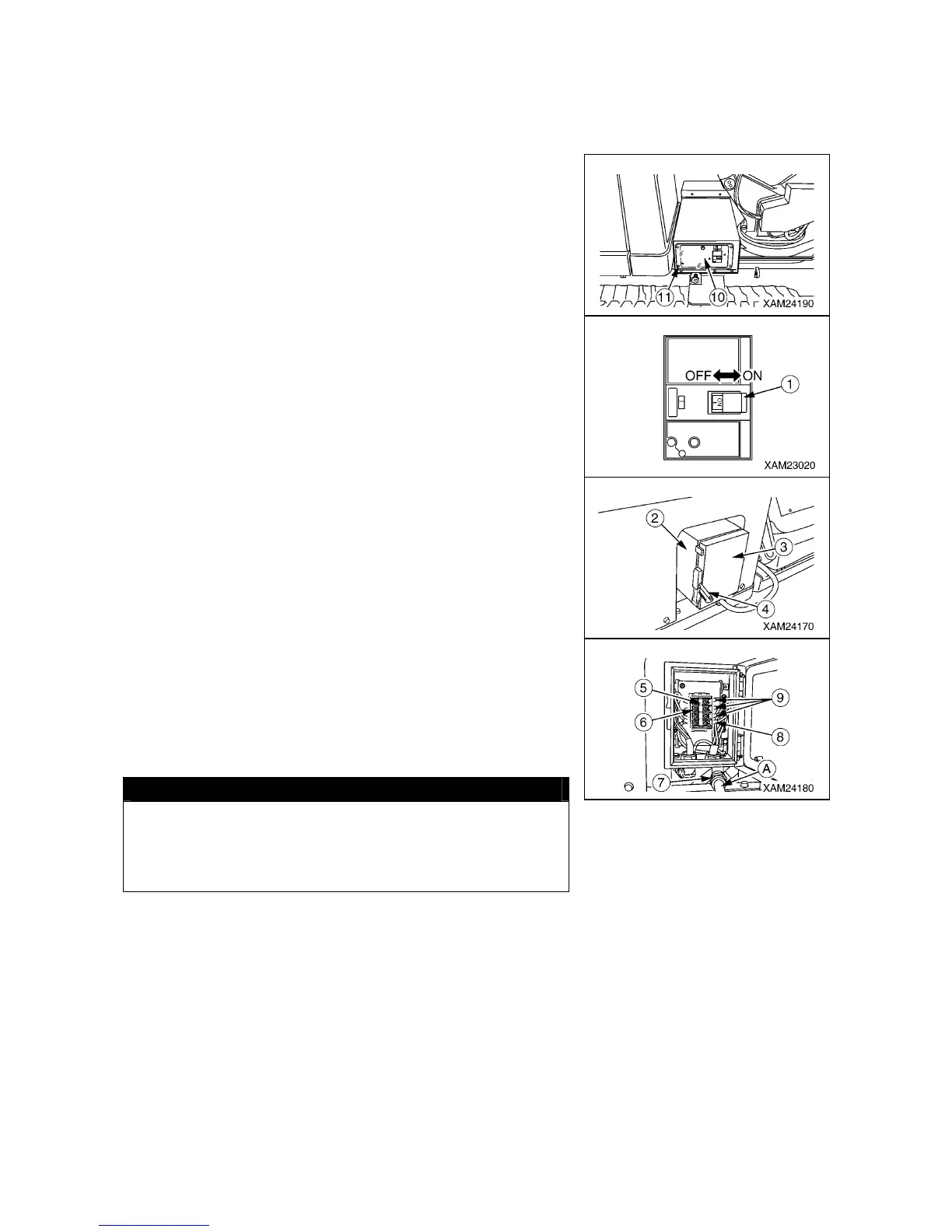

1. Turn OFF the power supply equipment breaker.
2. Remove the four mounting screws (11) and remove the
protective cover (10).
3. Turn OFF the main breaker (1).
4.Replace the protective cover (10) to the original position and
securely tighten four mounting screws (11).
5. Unlock the door (3) of the power supply box (2) by pulling the
handle (4) toward you to open it.
6. Remove the cover (6) of the terminal block (5) in the power
supply box, holding the top and bottom of the cover (6) with
fingers and pulling it toward you.
7. Disconnect the cable (8) and three cables (9) of the cabtyre
cable (A) from the terminal block (5).
CAUTION
• Clean off the cabtyre cable and check it for damage or bend.
If check finds damage, replace the cable with a new one.
• Always return the cabtyre cable to a designated place after
performing inspection and cleaning.
8.Replace the cover (6) of the terminal block (5) to the original
position and close the door (3) of the power supply box (2).
To Next Page
