3-110

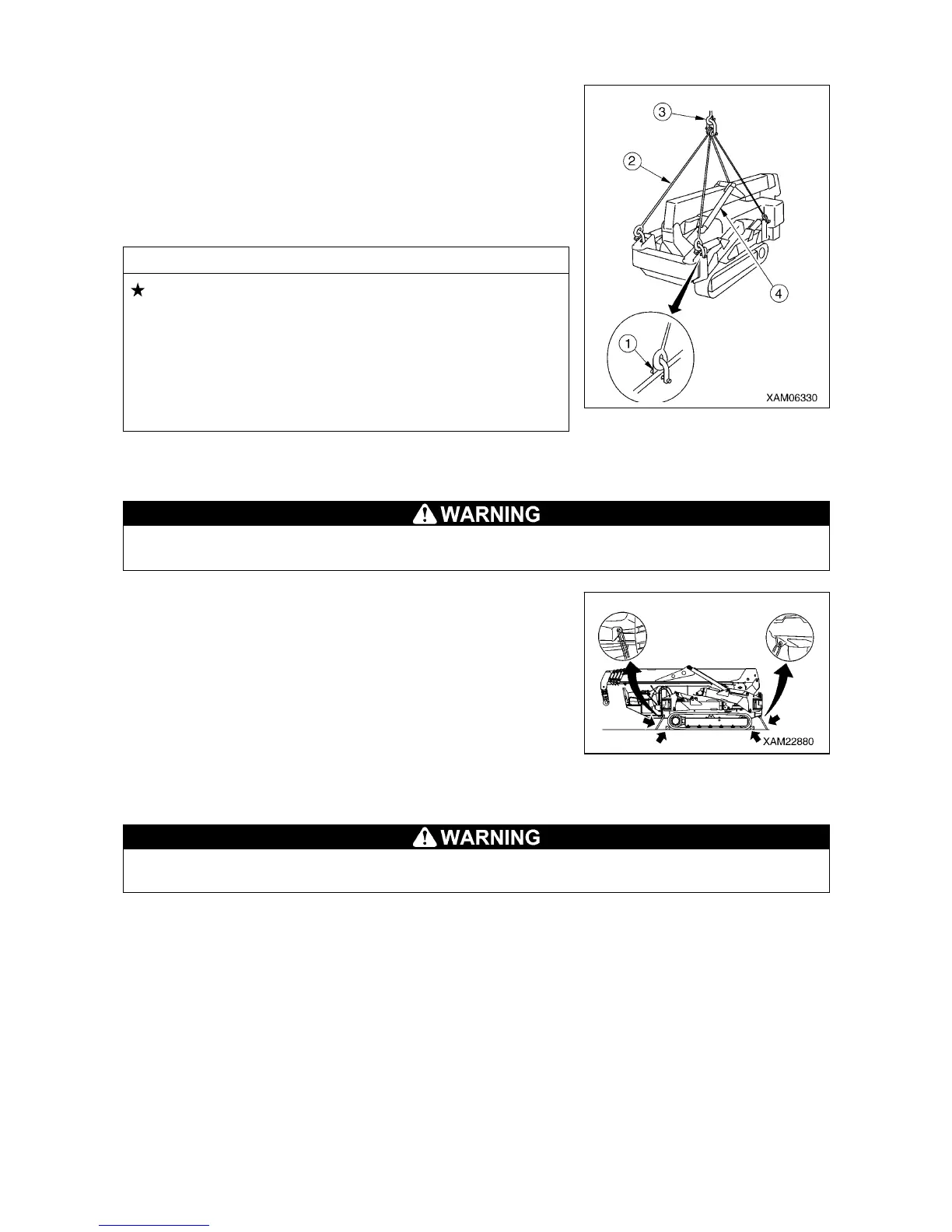

3. Install a shackle (1) to the holes (4 locations) on the outrigger
rotaries and hang the hoisting attachments (2) over the hook (3).
4. As soon as the machine leaves the ground, stop and wait until
the machine is stabilized. Then slowly hoist the machine.
5. Check the changes in the posture due to the leakage from the
hydraulic circuit on the head side of the derricking cylinder (4)
when the machine is hoisted.
NOTES
Recommended hoisting attachments
• Wire ropes (two in front): 12.5 diameter x length of 2150 mm
(breaking force of 7.5 t or more), with eye lock and nominal
12A thimble at one end
• Wire ropes (two in back): 12.5 diameter x length of 1650 mm
(breaking force of 7.5 t or more), with eye lock and nominal
12A thimble at one end
• Shackle: BC or SC, nominal 14
5.3 CAUTIONS IN LOADING MACHINE
Select flat and solid ground for loading/unloading the machine. Keep sufficient distance from
the shoulders.
Load the machine to the specified position on the trailer and secure
the machine with the following procedure.
1. Stop the engine and remove the key of the starter switch.
2. Provide a square timber in front and back of the rubber tracks to
prevent the machine from moving during transportation. Secure
the machine with chain or wire rope.
Secure it surely, especially not to let it slip to the side.
5.4 CAUTIONS DURING TRANSPORTATION
Take road width, height, and weight into consideration in determining the transportation route.
If there are applicable local laws and regulations, observe these laws and regulations for safe
transportation.
If not, contact us or our sales service agency.
