7-7

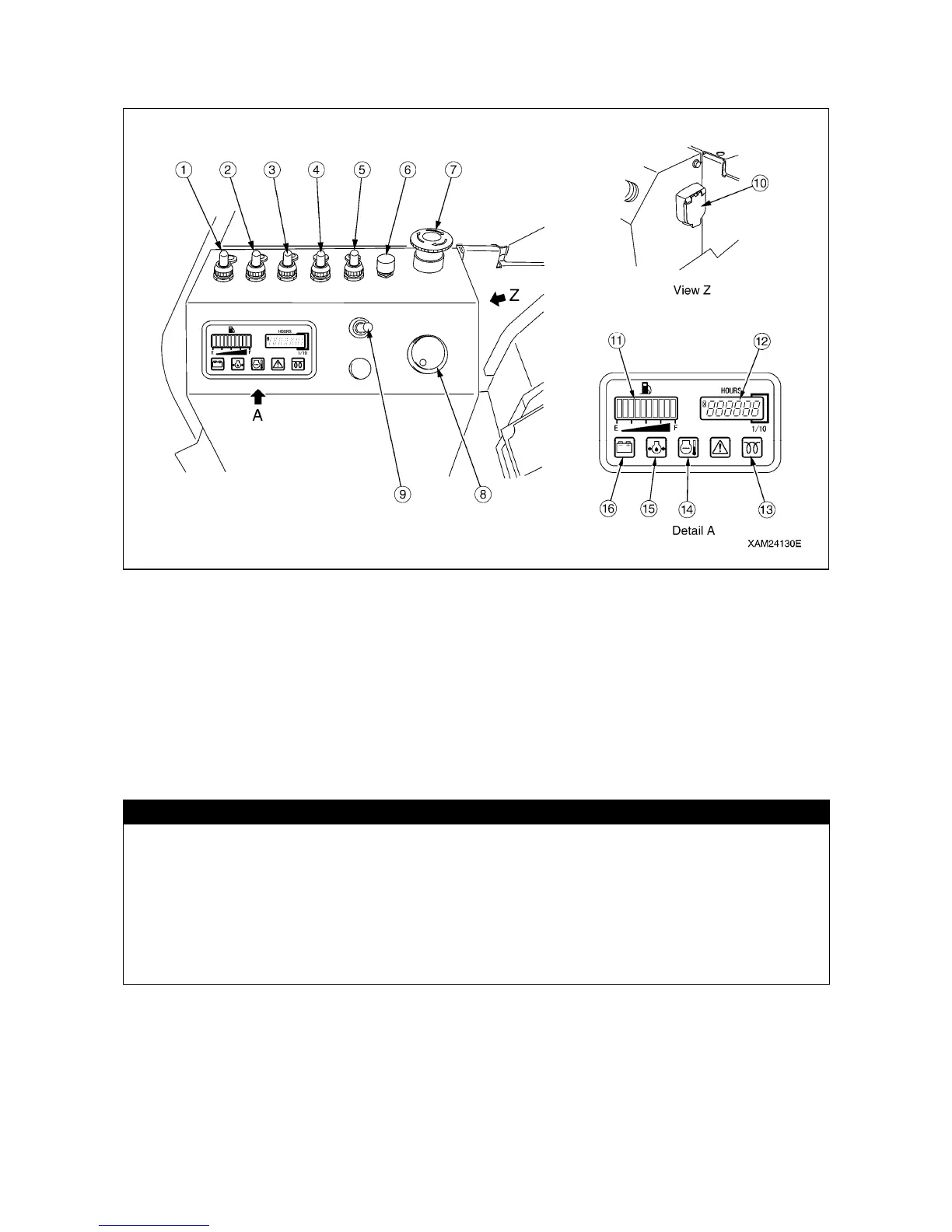

3.3 INSTRUMENT PANEL SECTIONS
(1) Headlight switch
(2) Crane high-speed switch
(3) Hook stowing switch
(4) Traveling high-speed switch
(5) Boom stowing switch
(6) Horn switch
(7) Emergency stop switch
(8) Starter switch
(9) Engine and electric motor switch
(10) Emergency stop cancel switch
(11) Fuel gauge
(12) Hour meter
(13) Pre-heat monitor
(14) Engine water temperature monitor
(15) Engine oil pressure monitor
(16) Battery charge monitor
CAUTION
This section describes only the switches and monitors that become available when the machine
is powered by electric motor.
• This section describes the 4 switches and monitors listed below.
Starter switch (8), engine and electric motor switch (9), emergency stop switch (7), hour meter
(12).
See “Operation 1.3 Instrument Panel Sections” for other switches and monitors (8 pieces).
• Following monitors (five) are not active when the electrical motor is the output source.
Fuel gauge (11) pre-heat monitor (13) engine water temperature monitor (14) engine oil
pressure monitor (15), battery charge monitor (16).
To Next Page
