3-12
1.3.3 DESCRIPTION OF FUSES
Be sure to turn the starter switch to the “OFF” position when checking or replacing a fuse.
CAUTION
Fuses protect electrical components and wires from being burnt out.
• Fuses are blade fuses. If a fuse was corroded and shows white powder, be sure to change the
fuse.
• If a fuse has melt down, always check the cause in the circuit and repair the problem before
changing the fuse.
• Always use a fuse of the same capacity when replacing one.

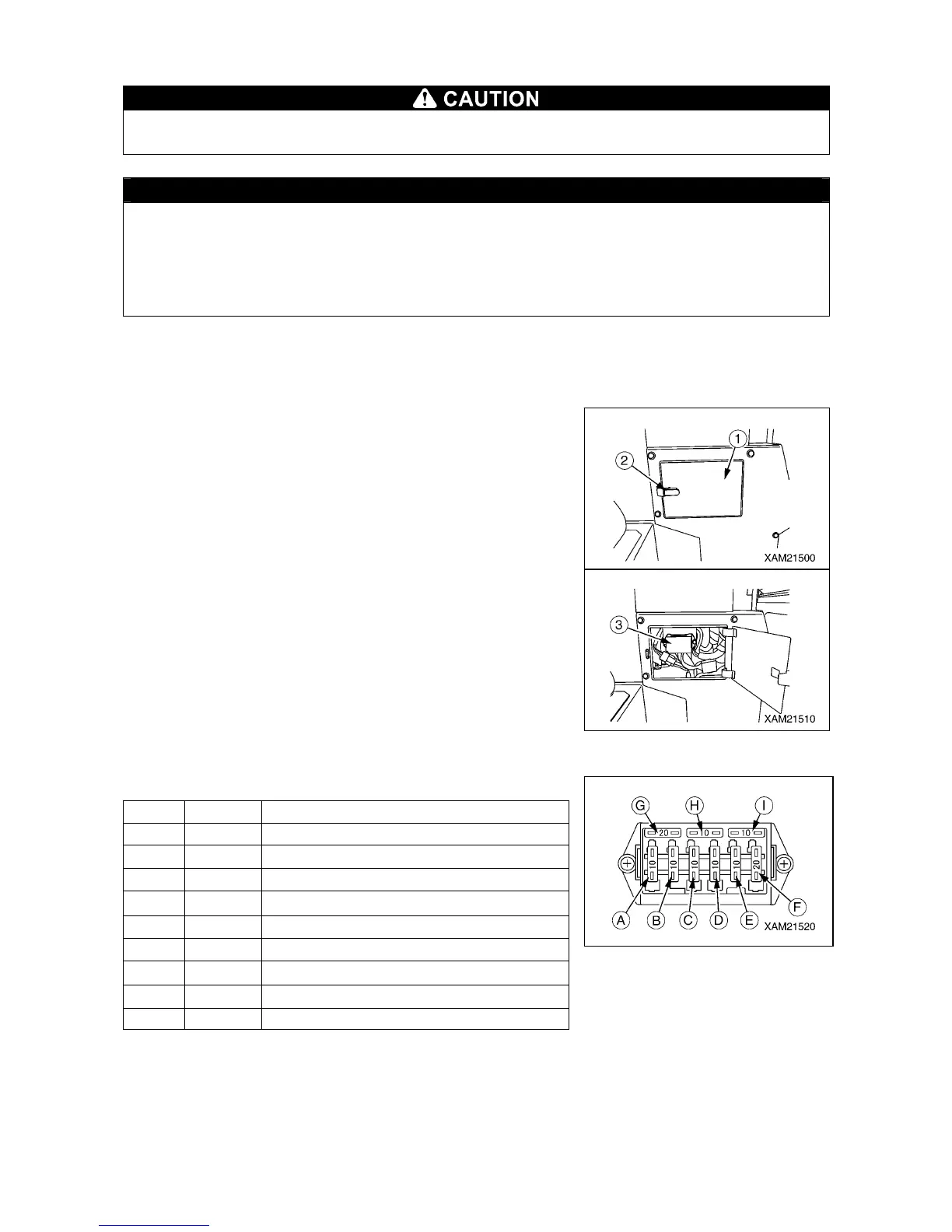

The fuse box is provided at the lower section of the instrument
panel.
Check and replace a fuse using the procedure below.
1. Remove the buckle (2) of the cover (1) at the bottom of the
instrument panel to open the cover (1).
2. Remove the cover (3) of the fuse box.
3. Remove the fuse from the fuse box and check/replace the fuse.
4. Insert a new or checked fuse to the original position in the fuse
box.
[FUSE CAPACITY AND CIRCUIT NAMES]
The table below shows the fuse system and its capacity.
Index Capacity Circuit Name
A 10 A Main P.S.
B 10 A PCB
C 10 A Engine control
D 10 A Solenoid valve
E 10 A Horn, light
F 20 A Moment limiter, remote controller
G 20 A Spare
H 10 A Spare
I 10 A Spare
