5.2 FUSE IN THE RECEIVER
• For any tests or replacement of a fuse, always turn OFF the Main switch of the Control box,
before removing it.
• The fuse must be replaced with the same type of grass tube fuses, and of the same rating.
CAUTION
A fuse is inserted in the (+) line of the main power supply of the Receiver as a protective circuit
of internal devices and prevents circuits from burnt.
• A grass tube fuse is employed. In the event where the fuse is corroded and shows white rust,
or when a loose condition is recognized, always replace it with a new one.
• When the fuse is blown, never fail to examine the circuit for the cause and repair it before
replace the fuse.
• The fuse must be replaced with the same type of grass tube fuses, and of the same rating.
The fuse is placed inside the Receiver.
Test and replacement of the fuse shall be practiced as follows:
• Use the following hand tools:
• A screw driver (Philips)
• Jewelers screw driver set (Slotted)
• General hand tools, used to detach the cover of the control box.

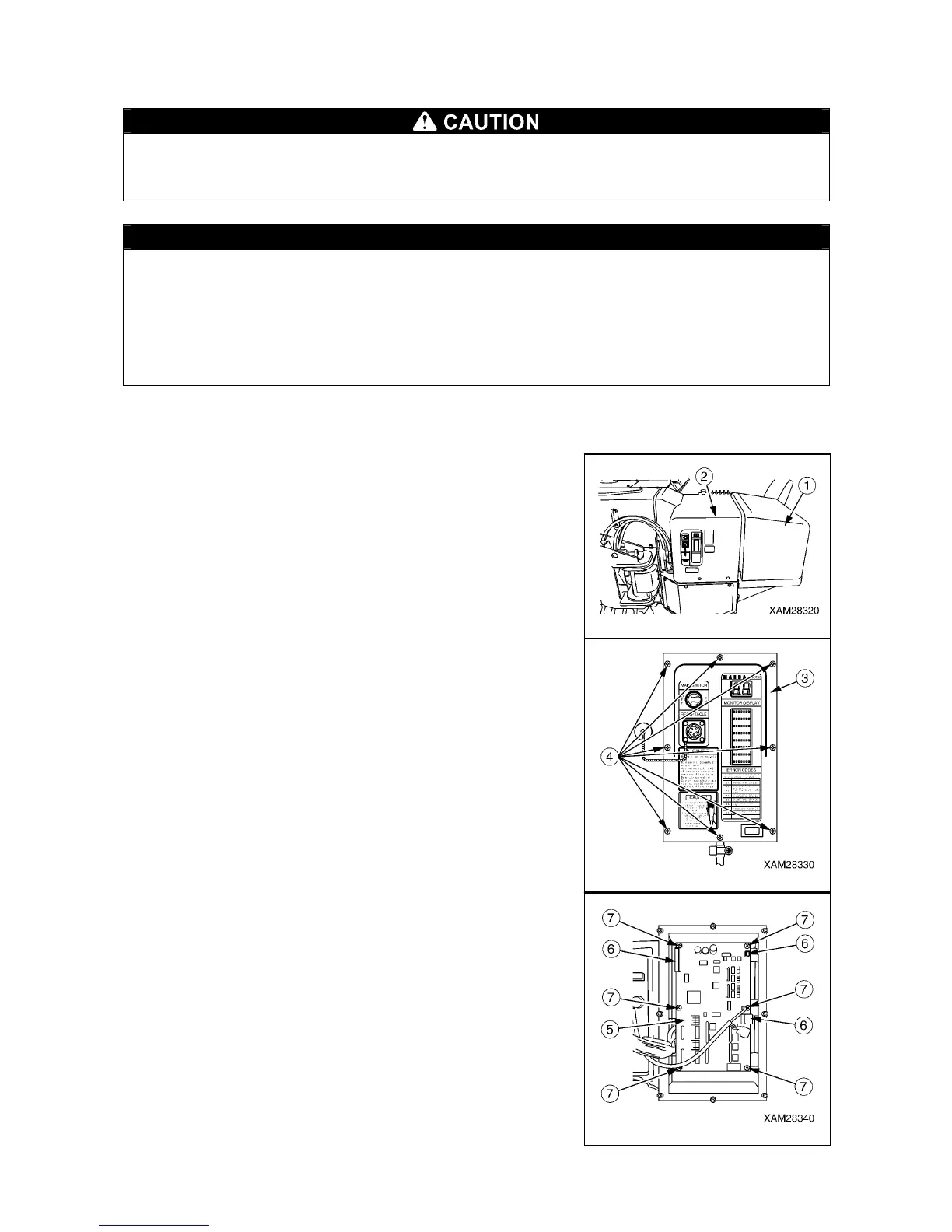

[1] REMOVAL OF THE FUSE
1. Detach the cover (1), (2) of the Control box so that the cover of
the Receiver can be detached.
2. Unfasten eight of screws (4) and take away the cover of the
Receiver (3).
3. Extract three of connectors (6) in the first PCB (5).
4. Unfasten six of screws (7) and remove the first PCB (5).
