8.7 MAINTENANCE EVERY 50 HOURS

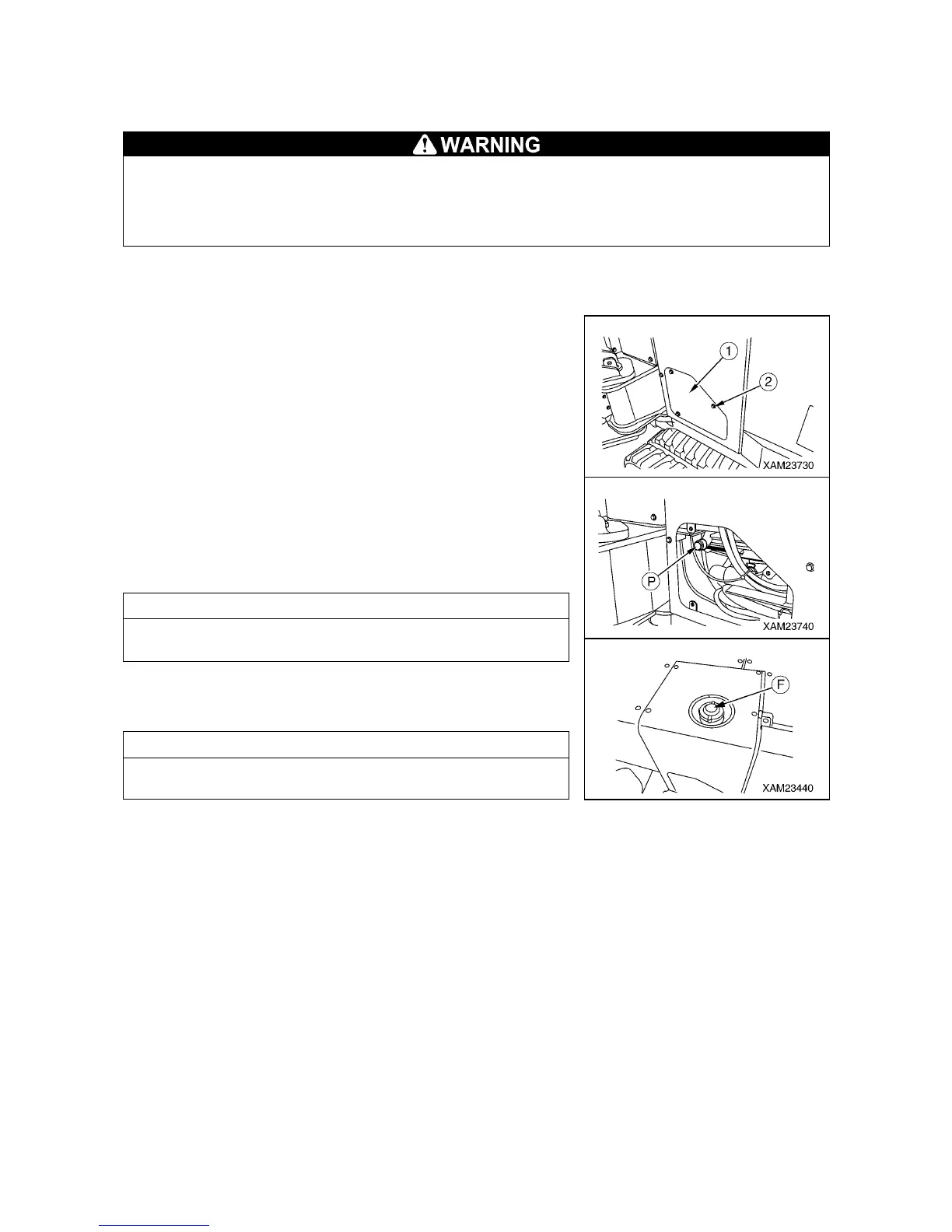

[1] DRAINING CONTAMINANT WATER/DEPOSITS IN FUEL TANK
• Keep from heat and flame, including cigarettes.
• Be sure to stop the engine before draining fuel.
Potential ignition may occur through spilled fuel if disregarded.
• Always put in the fuel tank drain plug and secure it after draining fuel.
• Fuel drain pan: A 1-liter container
1. Place the machine on a level surface.
2. See “Operation 2.14 Outrigger Setting Operation” to rotate the
rotary of the “outrigger (3)” and “outrigger (4)” outward.
3. Remove the three mounting bolts (2) and remove the inspection
cover (1).
4. Place a drain pan directly under the fuel tank drain plug (P) to
receive drained fuel.
5. Remove the drain plug (P) slowly to drain fuel, keeping from
contact with draining fuel.
NOTES
Remove the fuel tank cap (F) if normal or smooth fuel draining
fails.
6. Put in the drain plug (P) and secure it upon completion of
draining fuel.
NOTES
Wipe off fuel completely if spilled.
7. Install the inspection cover (1), and secure it with the three
mounting bolts (2).
8. See “Operation 2.24 Outrigger Stowing Operation” to stow the
outriggers.
