1.10 MACHINERY COVER
• Be sure to stop the engine and remove the starter switch key before removing the machinery
cover.
• Do not remove the machinery cover immediately after the operation while the engine is still
hot.
The machinery cover is large and installed at high position. Be sure to remove/install the cover
with two persons or more.

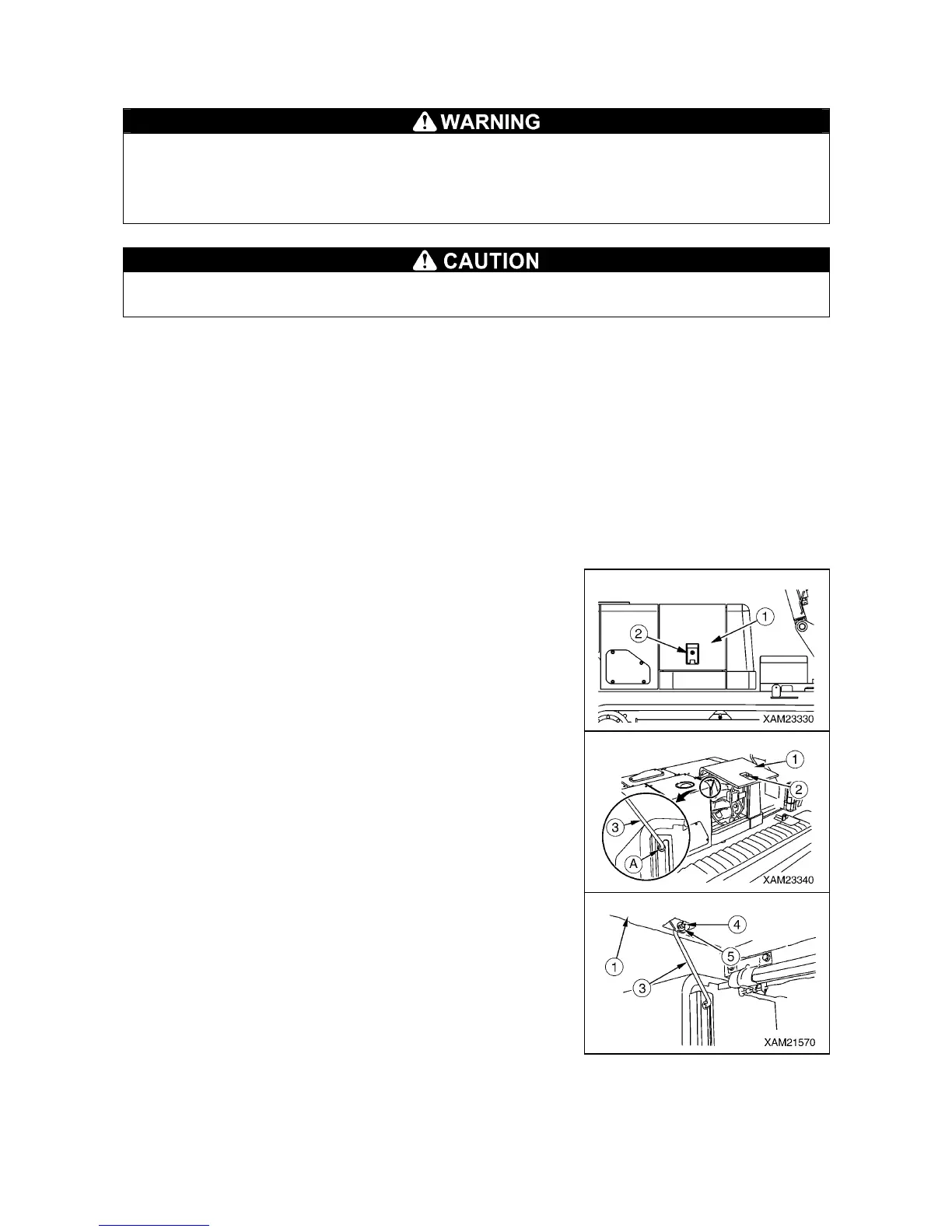

[1] REMOVING MACHINERY COVER
Remove the machinery cover with the following procedure when performing inspection/maintenance
inside the machinery cover.
1. See “Operation 2.2 Starting Engine” and start the engine.
2. See “Operation 2.14 Outrigger Setting Operation” and set the outriggers.
3. See “Operation 2.19 Boom Derricking Operation” and raise the boom to the angle at which you can
work without difficulty.
4. See “Operation 2.10 Stopping Engine” and stop the engine.
5. See “Operation 2.14 Outrigger Setting Operation” and rotate the
rotary of all the outriggers outward.
6. Insert the key into the keyhole of the knob (2) of the engine hood
(1) and unlock the hood.
7. Open the engine hood (1) by pulling the knob (2) toward you.
Slide the stay (3) and set it securely at the lock position (A).
8. Remove the snap pin (4) and washer (5) from the stay (3) on the
engine hood (1) side and separate the engine hood (1) from the
stay (3).
To Next Page
