3-6

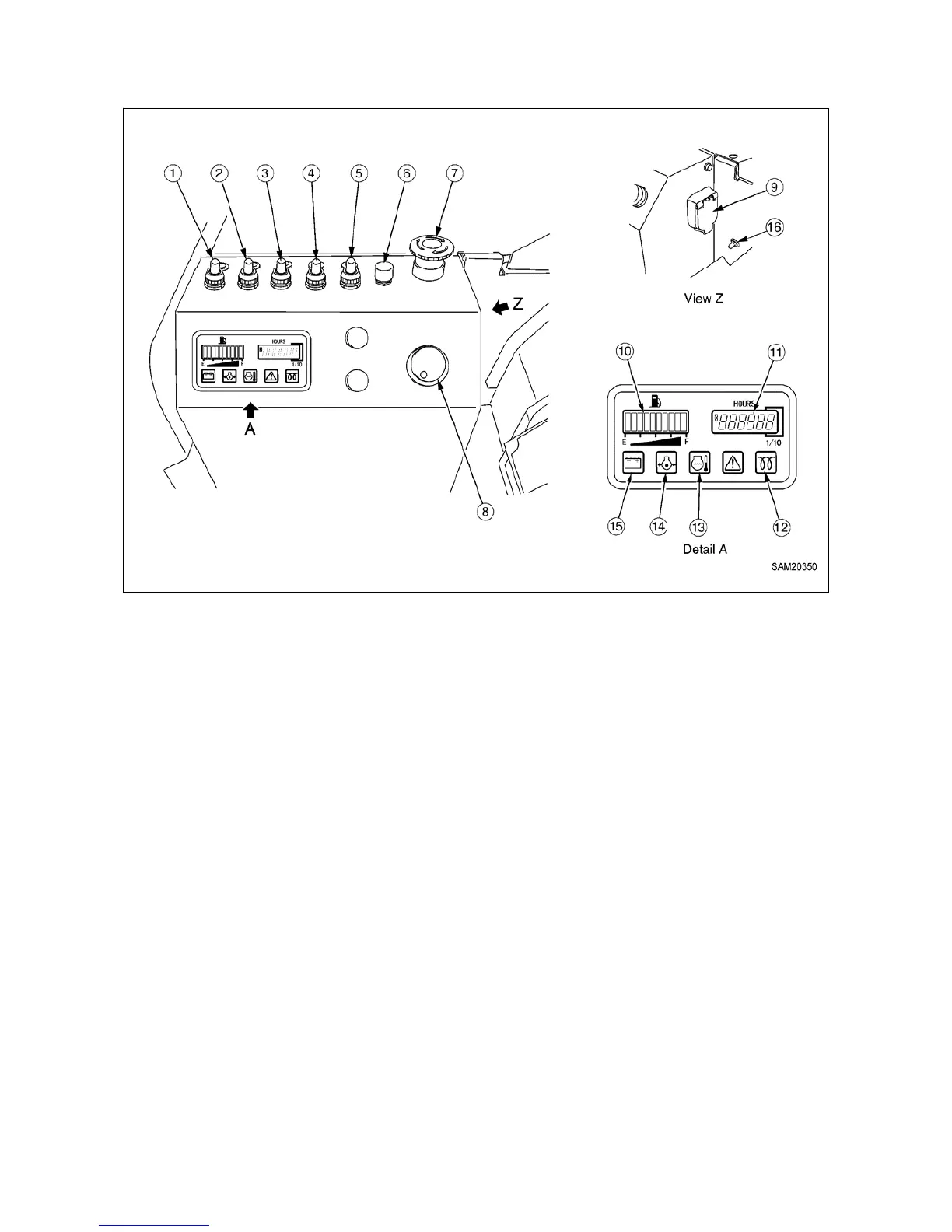

1.3 INSTRUMENT PANEL SECTIONS
(1) Headlight switch
(2) Crane high-speed switch
(3) Hook stowing switch
(4) Traveling high-speed switch
(5) Boom stowing switch
(6) Horn switch
(7) Engine emergency stop switch
(8) Starter switch
(9) Emergency stop cancel switch
(10) Fuel gauge
(11) Hour meter
(12) Pre-heat monitor
(13) Engine water temperature monitor
(14) Engine oil pressure monitor
(15) Battery charge monitor
(16) Boom lift bypass switch
