3-10

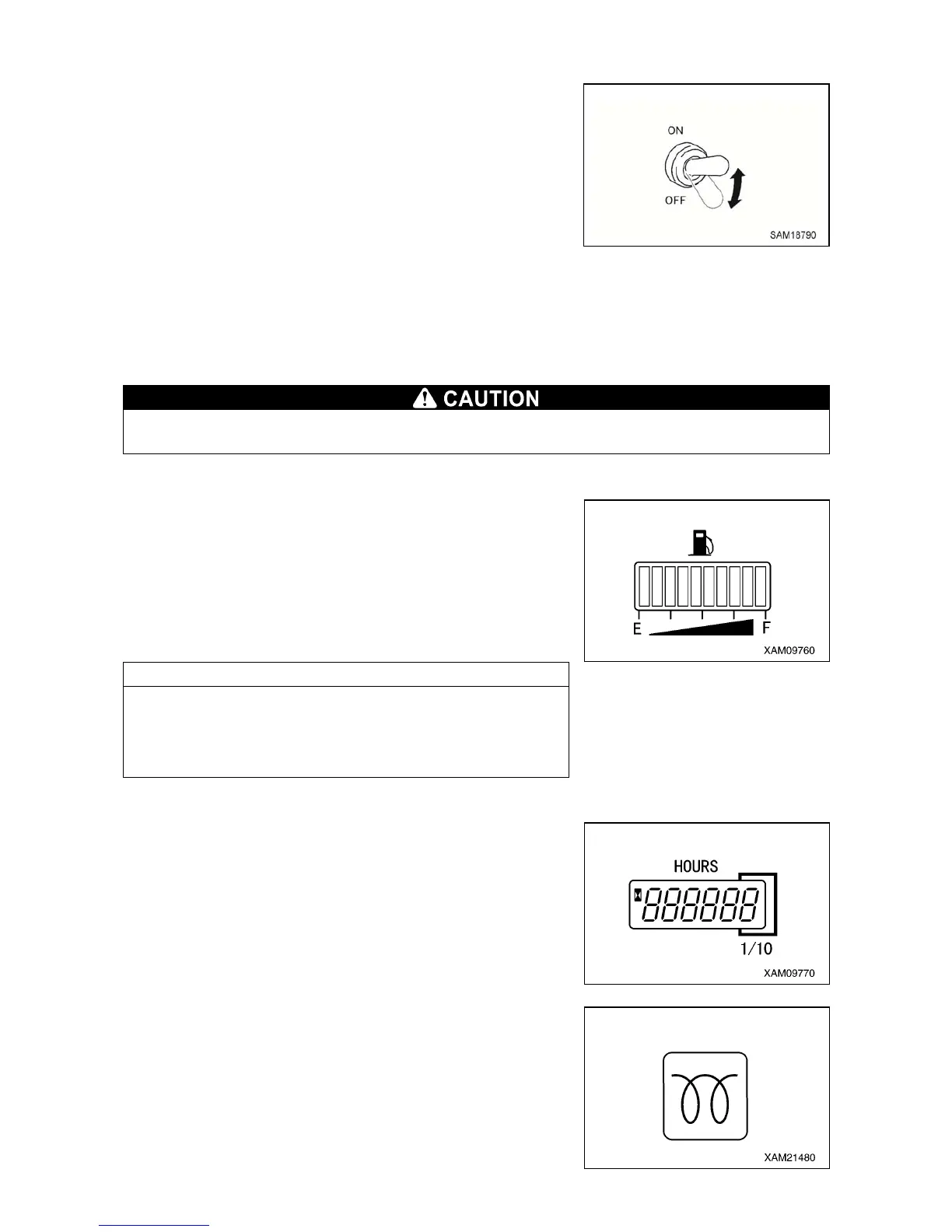

[10] BOOM LIFT BYPASS SWITCH
Use this switch to raise the boom in overload condition.
ON : Keep pushing the switch upward. This releases boom raise
restriction under overload condition and you can raise the
boom.
OFF : Release your finger from the switch. The switch returns to
the original position and the auto-stop function of boom
raise under overload condition will be activated.
Refer to the ”OPERATION 1.6.3 MOMENT LIMITER
OPERATION” for more information about how to use this switch.
1.3.2 DESCRIPTION OF EACH MONITORS
If the monitor flashes during the work, stop the operation immediately and check, adjust, or
repair the relevant section.
[1] FUEL GAUGE
This gauge indicates the remaining amount of the fuel in the fuel
tank.
Turn the starter switch to the “ON” position and the gauge indicates
the remaining amount of the fuel with the “bar”.
When only one “bar” lights up on the “E” side, there is not much
fuel left.
Stop the operation immediately and refuel.
NOTES
• At the end of a day, fuel to full (until all the “bar”s (10 bars) light
up.)
• The remaining amount indicated may not be correct for a while
after the starter switch is turned to the “ON” position. This is
normal.
[2] HOUR METER
This meter shows the total running hours of the machine.
Use this value as the reference for periodical check interval.
If the engine is in operation, the meter indication advances even if
the machine is not moving.
The meter indication advances for “1” when the machine has been
running for 1 hour regardless of the engine rotation speed.
[3] PREHEAT MONITOR
The monitor lights up during the preheating operation when
starting the engine.
It lights up when the starter switch is operated to the “HEAT”
(preheat) position and goes off in several seconds to indicate the
completion of preheating.
