Maeda MC-305C-2 - Names of Moment Limiter Display Unit

3-22

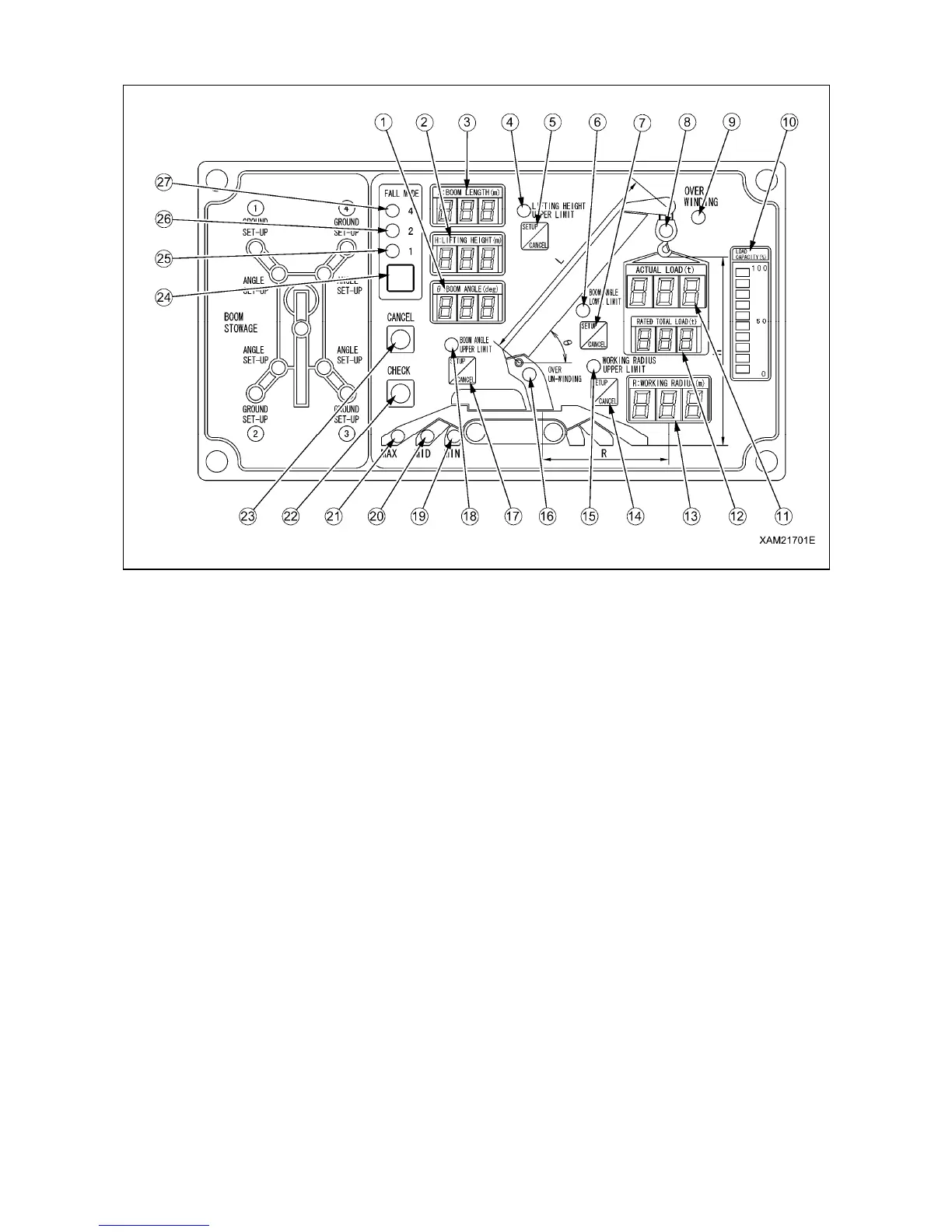

1.6.4 NAMES OF MOMENT LIMITER DISPLAY UNIT
(1) Boom angle display
(2) Lifting height display
(3) Boom length display
(4) Boom lifting height upper limit LED
(Orange)
(5) Boom lifting height upper limit switch
(6) Boom angle lower limit LED (Orange)
(7) Boom angle lower limit switch
(8) Load factor LED
(Changes to green, yellow, and red)
(9) Over hoist detection LED (Red)
(10) Load capacity display (Yellow)
(11) Actual load display
(12) Rated total load display
(13) Working radius display
(14) Working radius upper limit switch
(15) Working radius upper limit LED (Orange)
(16) Over un-winding LED (Orange)
(17) Boom angle upper limit switch
(18) Boom angle upper limit LED (Orange)
(19) Outrigger MIN. extension LED (Blue)
(20) Outrigger MID. extension LED (Blue)
(21) Outrigger MAX. extension LED (Blue)
(22) Check switch
(23) Cancel switch
(24) Fall mode selector switch
(25) 1-fall fall LED (Blue)
(26) 2-falls fall LED (Blue)
(27) 4-falls fall LED (Blue)
