Magtrol Model DSP7000 Dynamometer Controller
Chapter 8 – Optional Equipment
opera
tion
2.

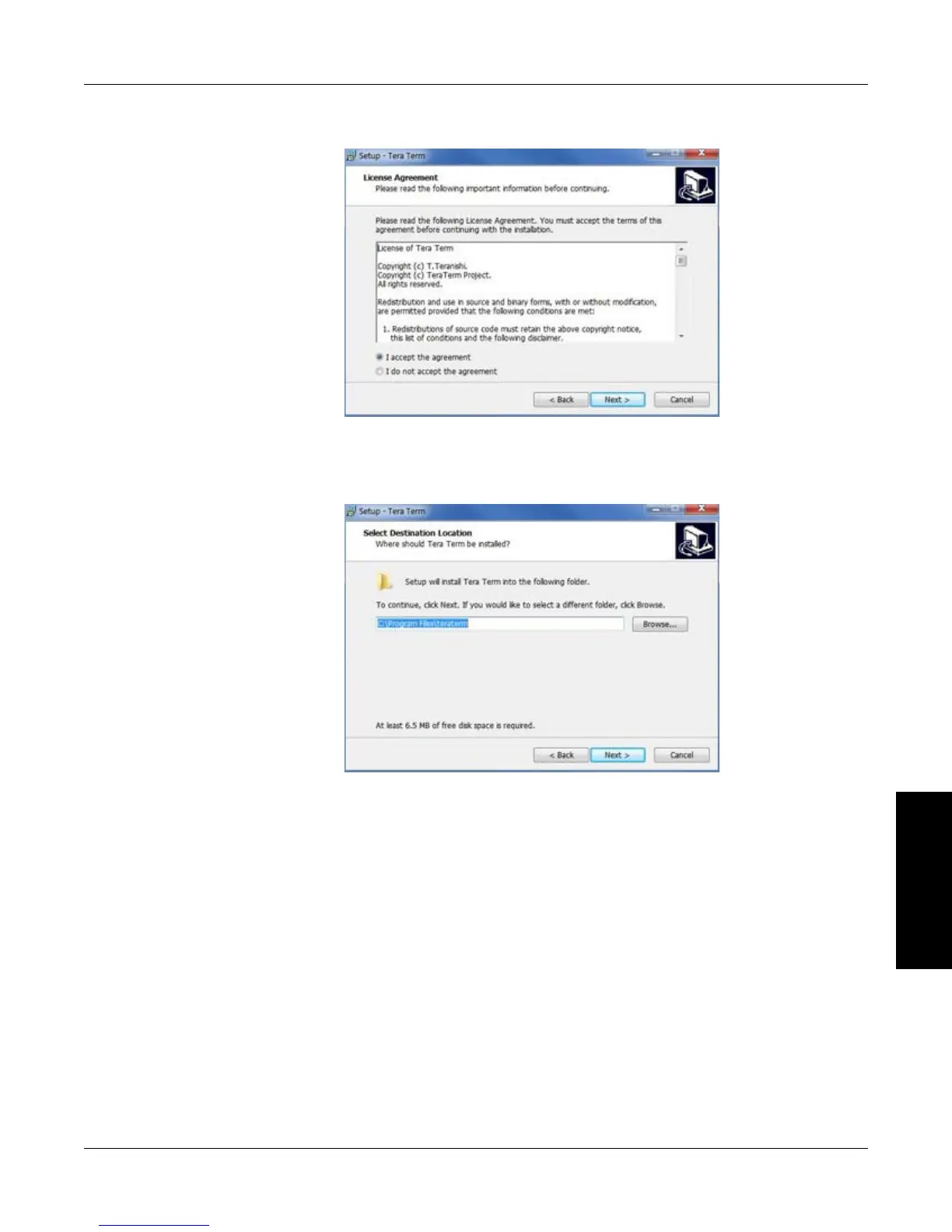

Click on the option “I accept the agreement”, then click NEXT
.
F
igur
e 8–22
T
era T
erm
Licence Agr
eement W
indow
3.
Select the default install folder click NEXT
.
F
igur
e 8–23 T
era T
erm Destination Location
W
indow
116
118
