3.2.4 HySTereSiS DynaMoMeTer wiTH eDDy-CurrenT or powDer Brake SeTup
3.2.4.1 Hardware Connection
No Connection
Eddy-Current (WB)
OR Powder Brake (PB)
Dynamometer
AC Mains
Hysteresis Dynamometer (HD)
Excitation
Torque
Speed
TSC 401
Torque-Speed
Conditioner
DES Power Supply
Motor
Under
Test
USB
PC
M-TEST
DSP7002
DYNAMOMETER
CONTROLLER

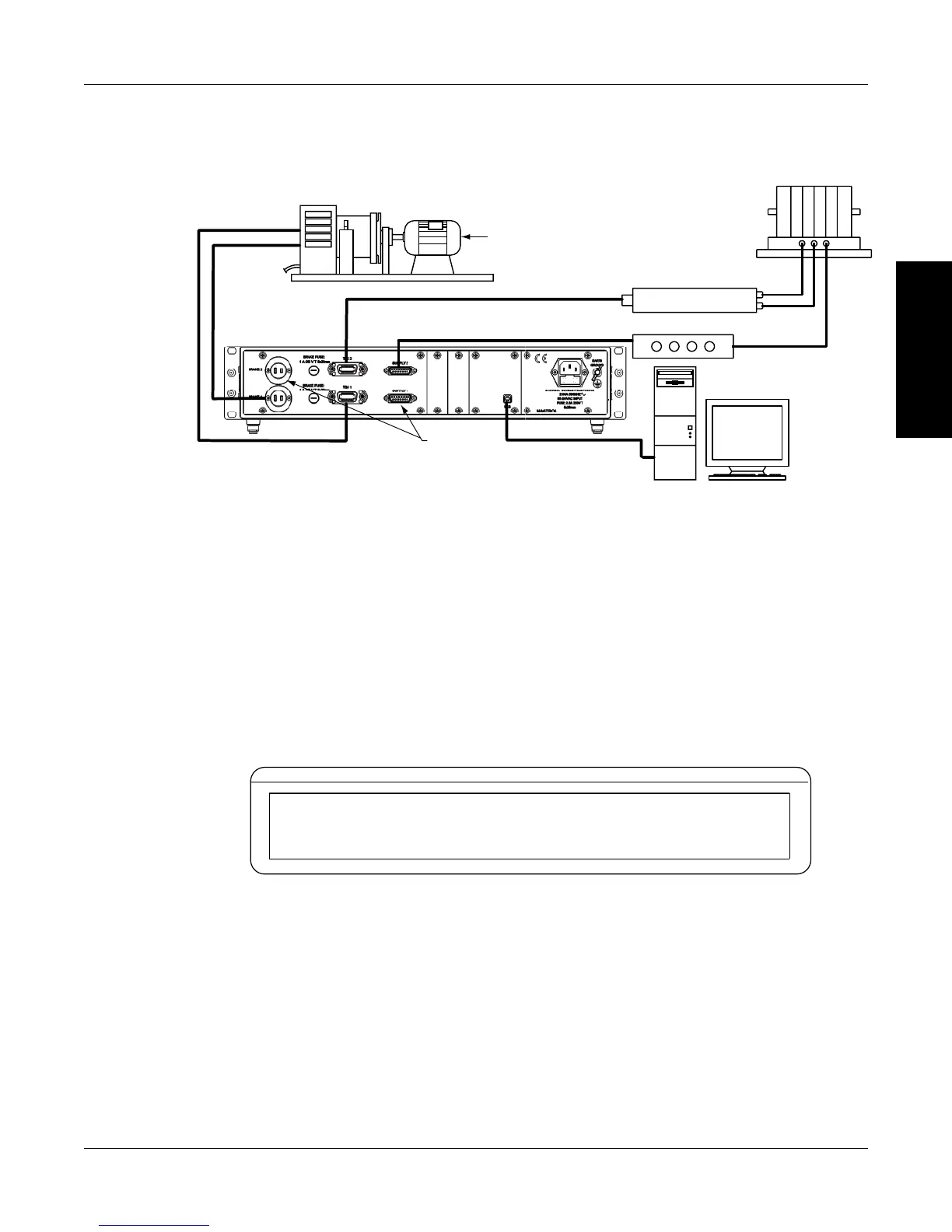

Figure 3–12 Hysteresis Dynamometer with Eddy-Current or Powder Brake Setup
3.2.4.2 Software Conguration
1. Turn on the DSP7000. Set up TSC1 as described in section 3.2.2 - Hysteresis Dynamometer
Setup. Press TSC to swtich to TSC2 setup and proceed to the dynamometer configuration
menu. See Section 3.2.1 – Dynamometer Configuration Menu.
2. Press POWER UNITS until WB or PB is reached.
3. Press MAX SPEED button and use  and  buttons and Decrease/Increase dial to set
desired scale factor for TSC2.
4. Press SCALE I to add a filter if desired.
5.a. If using an Eddy Current Dynamometer, press SHIFT. The display should appear as follows:
POWER
BRAKE STATUS SET POINT SET POINT PID
TORQUE SPEED USER DISPLAY
TSC2 MAX TORQUE NOMINAL SPEED
X.XXX XXXX.X
Figure 3–13 TSC2 Eddy-Current Setup Menu
Press the TORQUE UNITS button and use  and  buttons and Decrease/Increase dial to
set desired max torque. Press the SCALE P button and use  and  buttons and Decrease/
Increase dial to set desired nominal speed. Press SHIFT 4 times to complete the initial setup
and return to the main menu.
