Magtrol Model DSP7000 Dynamometer Controller
Chapter 3 – Installation/Configuration
SETUP
5b. If using a Powder Brake Dynamometer, press SHIFT. The display should appear as shown
in Figure 3-14 TSC2 Powder Brake Setup Menu. Press the TORQUE UNITS button and
use  and  buttons and Decrease/Increase dial to set desired max torque. Press SHIFT 2
times to return to the setup menu. See Figure 3-21 Tandem Setup Menu.
6. Press POWER UNITS to select tandem.
7. The menu will appear as follows:
POWER
BRAKE STATUS SET POINT SET POINT PID
TORQUE SPEED USER DISPLAY
IS THIS A TANDEM CONFIGURATION XXX

Figure 3–22 Tandem Configuration Menu
8. Press the SCALE I button until the menu says “NO”.
9. Press SHIFT 2 times to complete the initial setup and return to the main menu.
3.2.8 Two eDDy-CurrenT/powDer Brake DynaMoMeTerS (TanDeM SeTup)
3.2.8.1 Hardware Connection
Powder Brake (PB)
Dynamometer
Eddy-Current (WB)
Dynamometer
Excitation
Torque
Speed
TSC 401
Torque-Speed Conditioner
DES Power Supply
Powder Brake (PB)
Dynamometer
Eddy-Current (WB)
Dynamometer
Excitation
Torque
Speed
TSC 401
Torque-Speed Conditioner
DES Power Supply
USB
PC
M-TEST
OR
DSP7002
DYNAMOMETER CONTROLLER

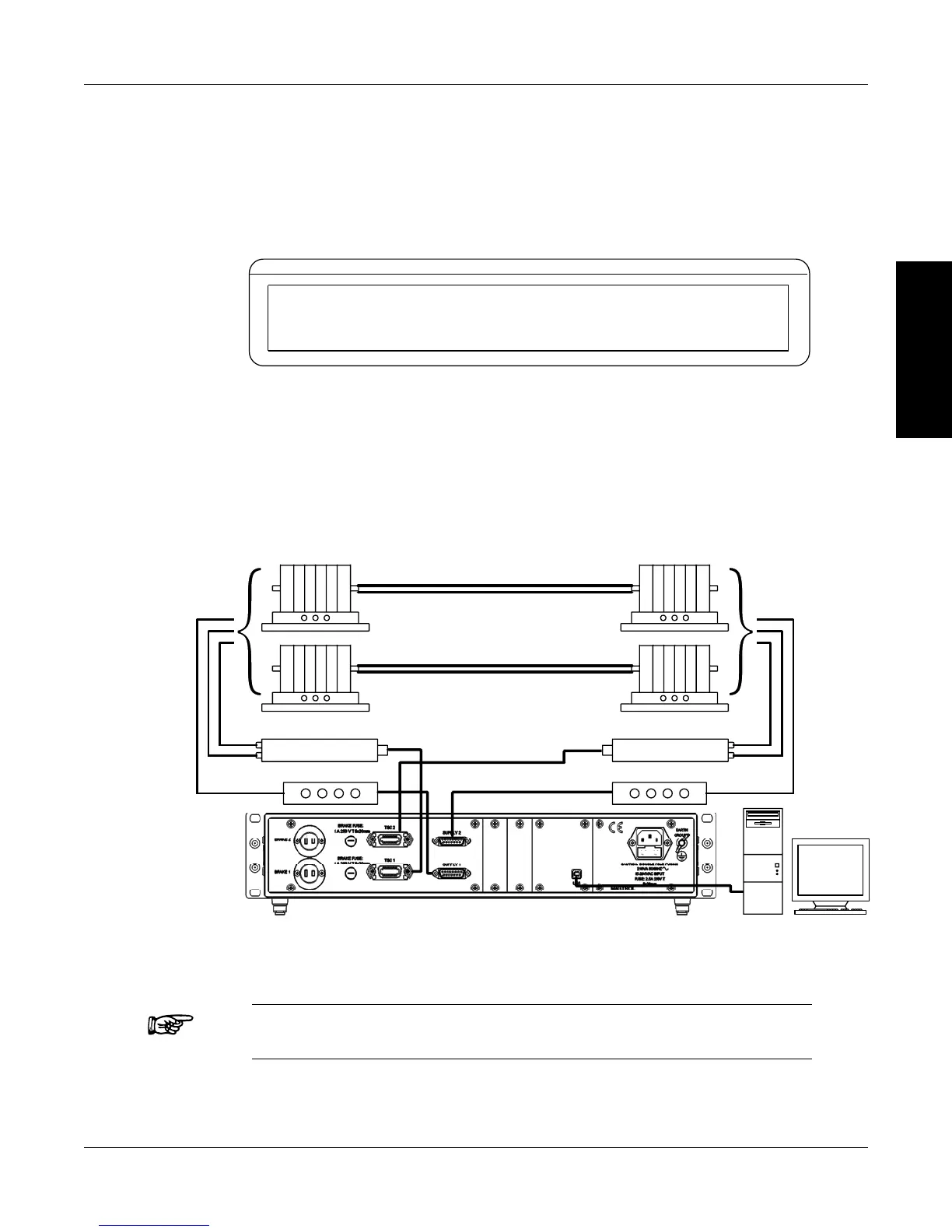

Figure 3–22 Two Eddy-Current/Powder Brake Dynamometers (Tandem Setup)
Note: This particular tandem configuration is only applicable to a WB-
WB or PB-PB combination.
