39
Magtrol Model DSP7000 Dynamometer Controller
Chapter 4 – PID Settings
SETUP
F
igur

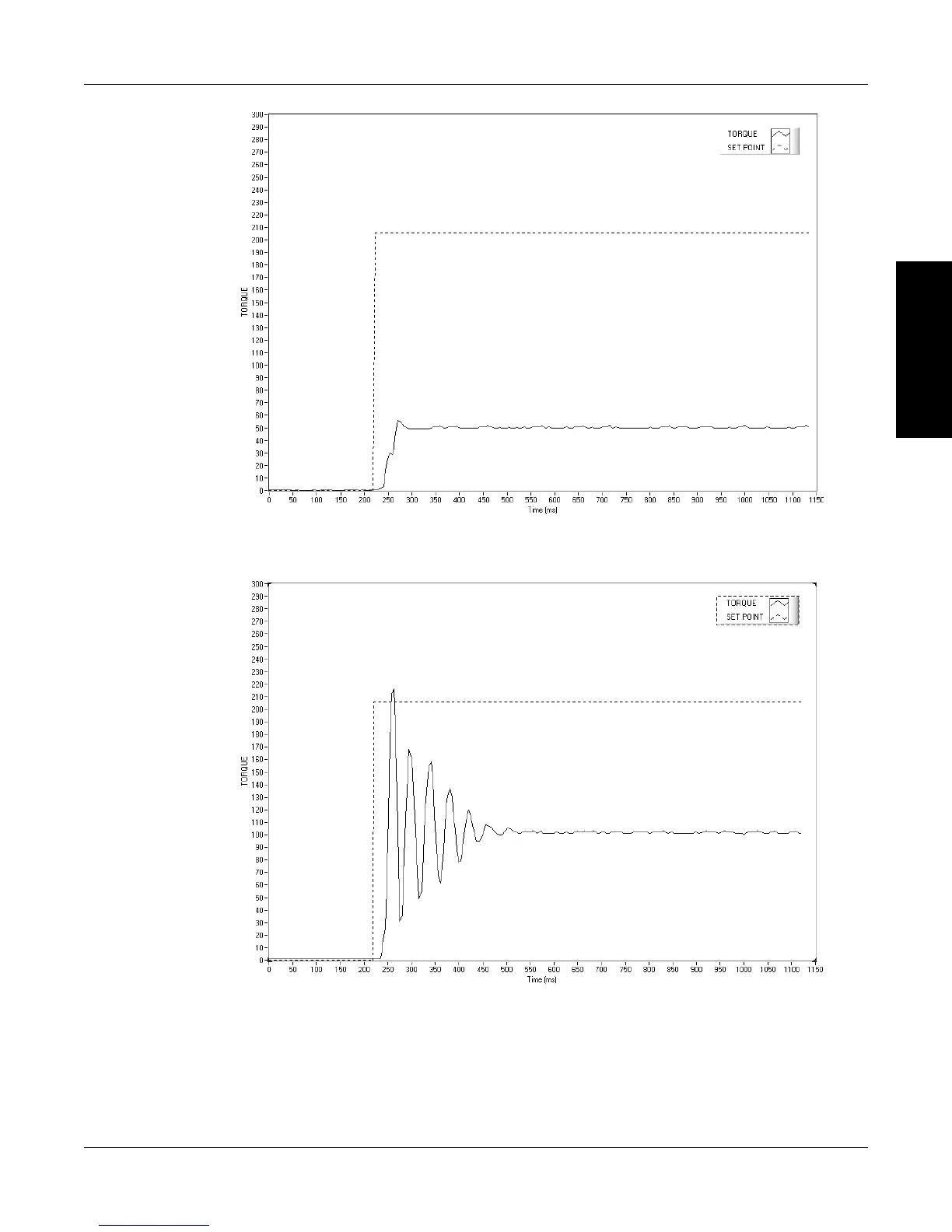

e 4–2 Initial P Setting for T
orque Contr
ol at 25%
F
igur
e 4–3 High Initial P Setting for T
orque Contr
ol
6.
T
urn the brake OFF
.
7.
Increase the I term to 10%.
8.
T
urn the brake ON and observe response, then turn the brake OFF
. Desired Result is a fast
response with some ov
er shoot.
53
55
